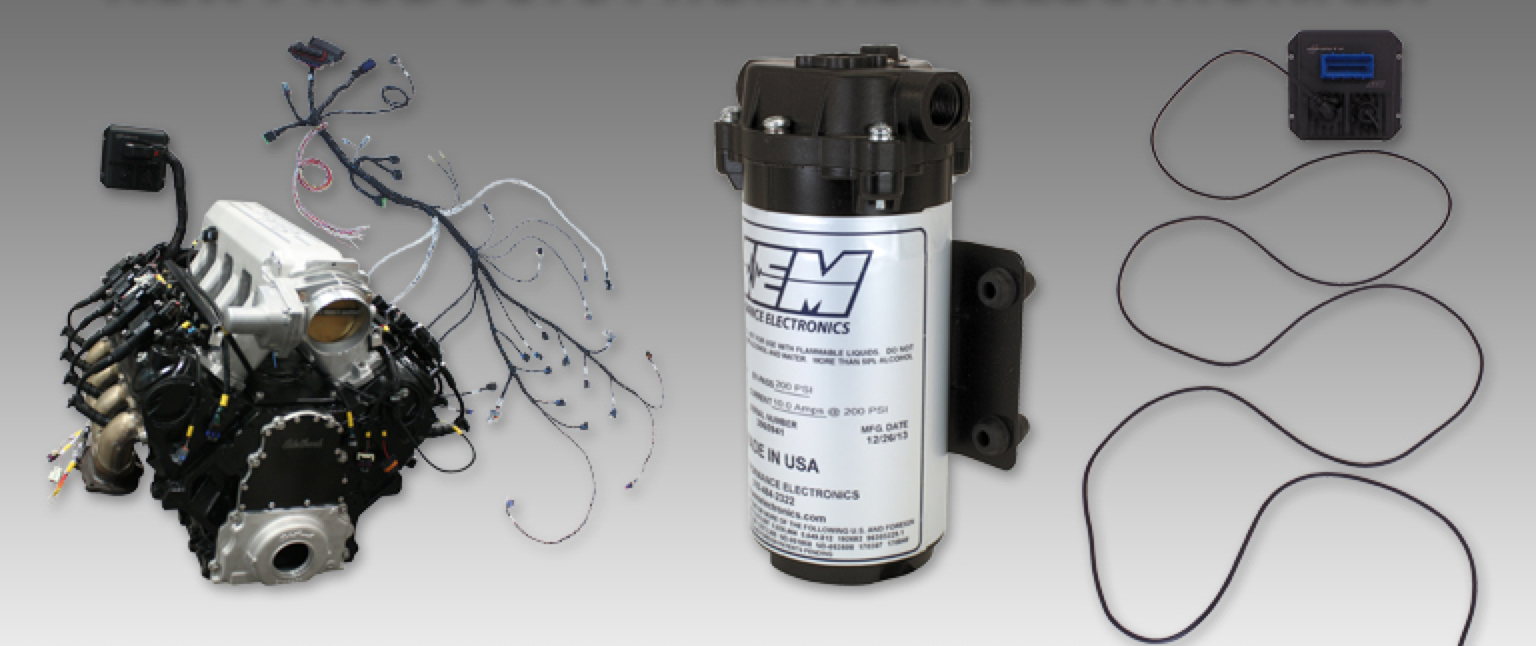

AEM has just released three new products to join their already impressive lineup of performance electronics. This includes their new Infinity 24x LS harness, their new NPT fitting water and methanol pump, and their new Infinity communications cable. Read below for more information regarding these recently added products, as well as detailed descriptions for each one. Be sure to also check out Vivid Racing’s entire lineup of AEM performance electronics here.

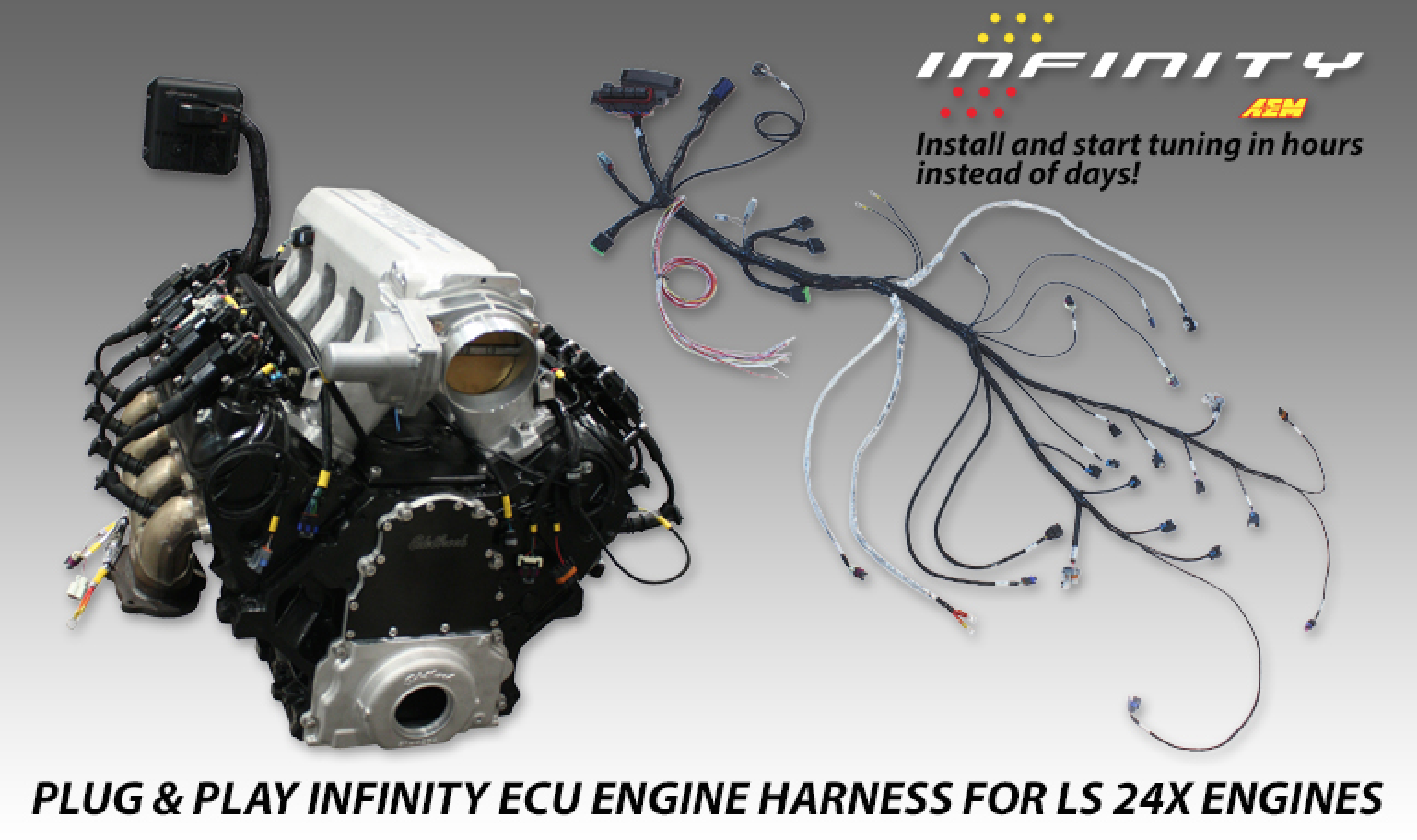

INFINITY PLUG & PLAY LS 24X ENGINE WIRING HARNESS
AEM has released its Plug & Play Engine Wiring Harness for GM LS race engines with a 24x timing pattern (PN 30-3821). This comprehensive, high-quality wiring harness allows racers to easily and affordably integrate the Infinity-508 Programmable ECU onto their 24x LS race engine by plugging into the factory coil sub harnesses and using factory sensors. It mates to the Infinity-508 ECU (PN 30-7108).

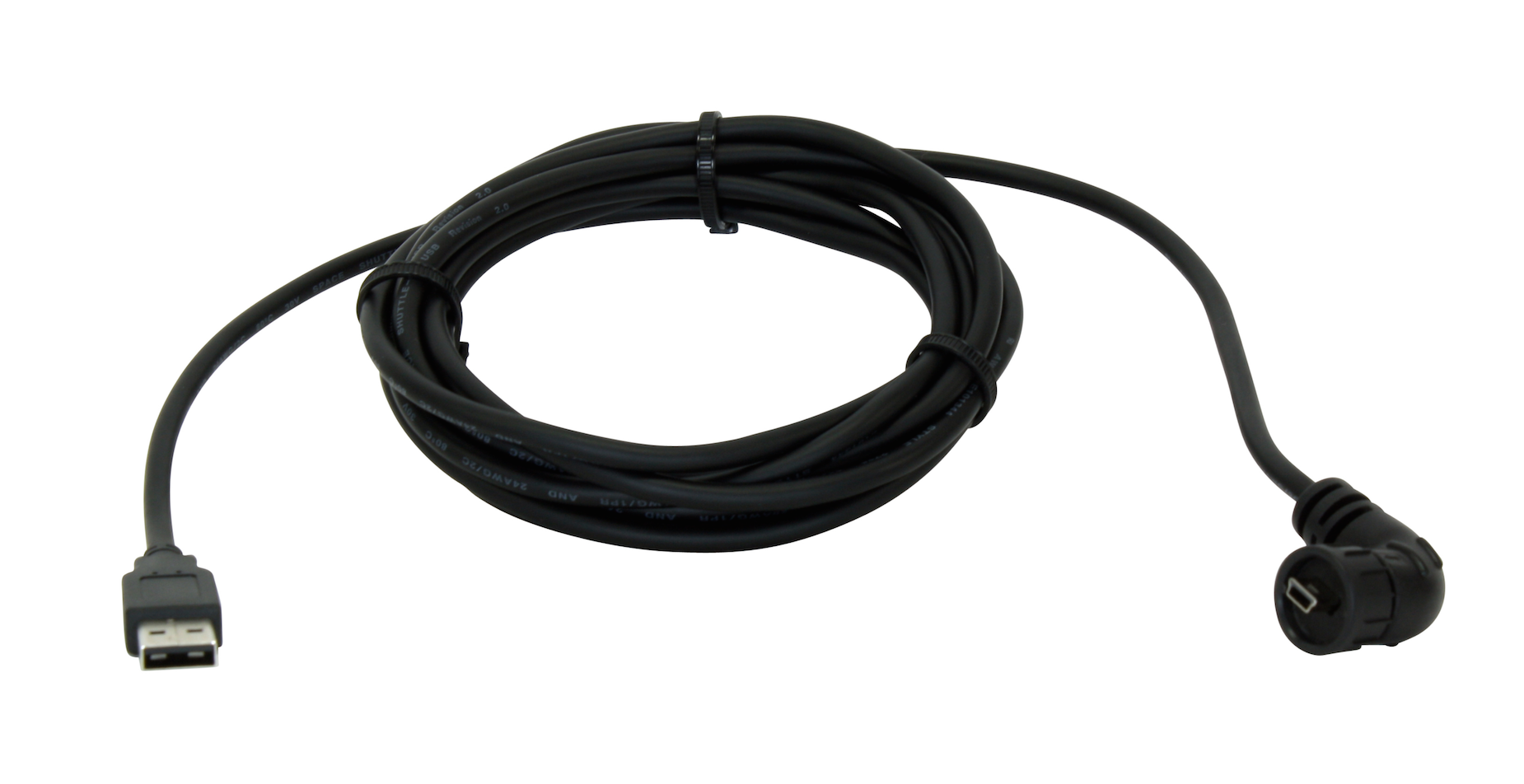

9-FOOT 8-INCH INFINITY IP67 COMMUNICATIONS CABLE
AEM’s 9’8” Infinity PC comms cable (PN 30-3604) provides additional length for when it can be difficult to access the Infinity ECU. Its connectors are IP67-rated (completely dustproof and are rated waterproof to 1 meter).

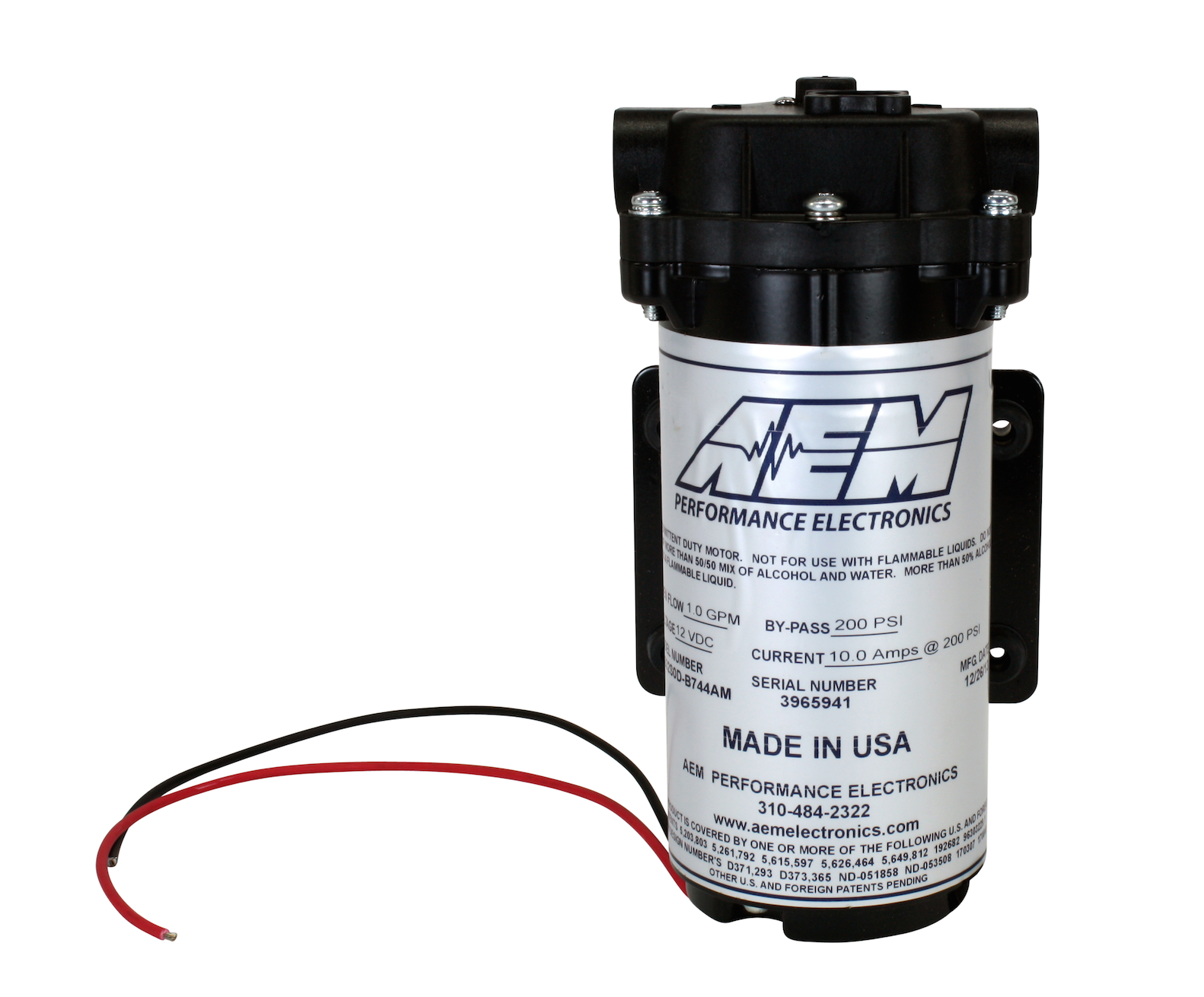

WATER/METHANOL INJECTION PUMP WITH 3/8 ” NPT FITTINGS
AEM’s 200psi high-pressure water/methanol injection pump (PN 30-3018) is now available with 3/8 ” NPT fittings! This internally-bypassed water/methanol injection pump does not cycle on and off and provides quiet, smooth operation. It features robust construction, EPDM seals and a Santoprene diaphragm that provides consistent and reliable fluid delivery.
Press Release: This comprehensive, high-quality wiring harness allows racers to easily and affordably integrate the Infinity-508 Programmable ECU onto their 24x LS race engine by plugging into the factory coil sub harnesses and using factory sensors. The harness utilizes automotive-grade, color-coded wiring and the timing inputs (cam and crank sensors) that are shielded for optimum performance. Water and shock-proof factory connectors for the sensors are used throughout the harness, as well as DTM-style connectors for auxiliary components. The IP67-rated ECU connector is designed to mate with AEM’s Infinity-508 ECU. Connections for a wideband O2 sensor, Drive-by-Wire and pedal, Knock, and AEMnet (AEM’s CAN bus) are integrated into the harness.
An integrated fuse and relay panel includes five relays and seven fuses that provides robust power distribution, engine circuit protection, and easier integration of additional features. Relays with flying leads are included for the fuel pump and fans. The panel’s housing is weather resistant and panel lid is weatherproof for added protection.
- Plugs into factory ignition coil sub harnesses and uses factory sensors for easy integration
- Integrated, weather-resistant fuse & relay panel (7 fuses and 5 relays) for optimum circuit protection
- Shielded cam/crank inputs
- Automotive-grade, color-coded wiring
- High quality braided mesh loom
- Waterproof & shockproof factory sensor connectors
- DTM-style connectors for auxiliary components
- Integrated connectors that mate to OEM coil sub harnesses
AEM LS 24x Infinity Wiring Harness (PN 30-3821) Connectors:
- Drive-by-Wire Throttle Body
- Accelerator Pedal
- MAP Sensor
- Air Temperature Sensor
- Injectors 1 – 8
- Ignition Coils Banks 1 & 2
- Wideband O2
- Knock Sensors
- Crank Position Sensor
- Cam Position Sensor
- Engine Coolant Temp Sensor
- Fuel Pressure Sensor
- Oil Pressure Sensor
- Radiator Fan (12″ flying lead)
- Fuel Pump (12″ flying lead)
- 4-Wire Stepper IAC (Optional)
- 1-Wire Alternator
- Power Distribution Center (5 Fuse-Protected Relays, Distributed Coil & Injector Power)
