Take Full Control of Your Polaris RZR With Plug and Play Solutions From AEM
Since the release of the Polaris RZR, the UTV / Side By Side market has been booming. These off-road capable vehicles have bred a new type of scene for those who like to have fun outdoors. Early model UTV’s were known as being slow and having very little performance capability. Now with technology advancing, these things run very similar systems to your every day road car. In order to take these new RZR’s to the next level, AEM has released a ECU harness for their infinity ECU. This allows for all of the factory components (Dash, Sensors, AWD Control Ect..) to be integrated into the new AEM ECU set up. The tuning options of the Infinity 508 expand much further than the factory by allowing complete control over all engine parameters. This is necessary when tuning an N/A for boost or safely getting more power out of your turbo model. You are no longer restricted to off the shelf tunes or a map that is not optimized for your specific application. If you want to get the very best performance out of your Polaris RZR, AEM Standalone is the way to go. To place an order or for any further inquiries, please contact our RZR / Side by Side specialist Jeremy@Vividracing.com.
More in depth details on the AEM set up are listed below. To see all of our available aftermarket parts for the Polaris RZR, CLICK HERE.

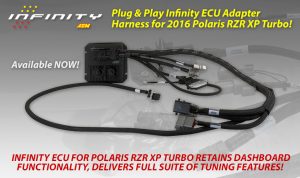

“AEM Plug & Play Infinity ECU Harness for 2017 Polaris RZR XP Turbo!
Hawthorne, CA—AEM has validated its Infinity Plug & Play Adapter Harnesses (PN 30-3822) to work on the 2016-2017 Polaris RZR XP Turbo race vehicles! This harness will seamlessly integrate the Infinity Powersports ECU (PN 30-7112) onto both 2017 and 2016 models. When combined with AEM’s Plug & Play Adapter Harness, the Infinity completely replaces the factory ECU and installs quickly using included hardware and sensors (no additional parts needed). A base map for the engine is included to speed up the tuning process.
Tune it Once for Sea Level and Altitude
The Infinity’s VE-based tuning model ensures one-time tuning for all altitudes. It can be tuned at sea level and driven to high altitudes without the need to make adjustments to the tuning calibration.
Complete Plug & Play Systems for All RZR Models
A wideband AFR sensor and ignition coil driver are included in each Plug & Play RZR XP Turbo kit to ensure quick installation. Connections for the factory sensors are included on each Plug & Play wiring harness. The Infinity ECU supports the factory injectors and injector upgrades through the Wizard in the software. The XP Turbo’s Drive-by- Wire and boost control is supported by the Infinity ECU.
Full Dashboard Functionality
The Infinity ECU integrates with the RZR XP Turbo’s CANbus system to retain full dashboard functionality on each vehicle.
AWD Control is Fully Supported
AWD control is supported through the Infinity ECU to retain the RZR’s formidable off road capabilities.
Closed-Loop Wideband Feedback Control
The Infinity ECU includes an on-board UEGO wideband air/fuel ratio (AFR) controller. A Bosch 4.2LSU UEGO sensor (PN 30-2001) and weld in bung is included with each Plug & Play kit.
Plug & Play Harness with Expansion Port
AEM’s sealed, weatherproof Plug & Play harness for Polaris RZRs includes an AEMnet port for communication with other AEMnet enabled devices. An expansion port with a weatherproof 12-pin connector is included in the Plug & Play Adapter Harness for adding common aftermarket sensors including fuel and/or oil pressure (30-2130- 150 150 PSI, sold separately) and ethanol content sensor (PN 30-2200 sold separately). The expansion port also includes a sensor ground, 5v reference, power from relay and switched inputs for boost target and more.
Infinity 508 ECU Features:
* Airflow model based (VE) tuning
* ECU Set Up Wizard simplifies start up
* Flex fuel compatible
* Multiple programmable boost control strategies
* Multiple programmable engine protection strategies
* Programmable individual cylinder knock control
* Secondary injector control
* Launch limiter
* Rolling launch antilag
* On-the-fly map switching
* Single internal Lambda AFR controller
* Dual knock sensing circuits
* Data logging up to 32GB, logging rate up to 1KHz/channel
* Outputs to AEM CD-7 Digital Dash, AQ-1 Data Logger and 3rd party dashes and data loggers
* Up to 480Mb/sec data transfer speed
* Programmable drive-by-wire capable
* Sealed enclosure and IP67 rated comms ports
The Infinity ECU makes state-of-the-art ECU technology affordable for both professional teams and amateur racers. Built around a latest-generation 32 bit floating point 200MHz automotive processor and Real Time Operating System (RTOS), the Infinity is capable of processing 400 MIPS (millions of instructions per second). To our knowledge, the Infinity ECU currently has the fastest processing speed of any aftermarket Motorsports ECU available. This processing speed combined with a RTOS provides more accurate ignition timing for increased power, more responsiveness to truly custom tailor the driving experience to the driver, allows the Infinity to perform more computational features without a sacrifice in processing performance, and enables tuning of features and sub strategies without affecting other features and sub strategies. It allows you to do more, faster, in a more stable programming environment.”
