Avant Garde’s rotary forged M632 wheel utilizes the latest in Advanced Rim Technology (A.R.T), which combines monoblock cast wheel technology with a spin forming technology. This, in turn, drastically improves the material property and strength of their wheels.
The A.R.T process impacts the micro structure of aluminum by utilizing three hydraulic rollers to apply pressure to form the inner rim area. The rollers move down the barrel applying pressure to compress, stretch, and form the entire wheel barrel producing optimal weight savings while improving material strength. This process actually alters the grain of the aluminum to produce a wheel barrel that is significantly lighter with enhanced strength comparable to fully forged wheels. A.R.T helps reduce the weight up to 25 percent when compared to a standard cast wheel through this finer and more even aluminum structure.
The AG M632 wheels are available in a variety of different sizes, colors and BESPOKE finishes. See below for photos and more details regarding the specs of these wheels. Be sure to also check out our entire collection of Avant Garde wheels here.
Features:
- One-Piece Cast Construction
- Finite Element Analysis Derived Designs
- Lightening Pockets Standard on All Wheels
- Torque Mounting Pad Ring Standard on All Wheels
- Compatible with OEM TPMS Sensors
- 1-Year Warranty on Finish
- Lifetime Warranty on Structure
- Lip size will vary depending on the size of the wheel
| Size | 19×8.5 5×112 +35, 19×9.5 5×112 +40, 20×10 5×112 +25, 20×10 5×112 +35, 20X10 5X114 +35, 20×10.5 BLNK +15, 20X11 BLNK +15, 20×8.5 5×112 +32, 20X9 BLNK +15 |
|---|---|

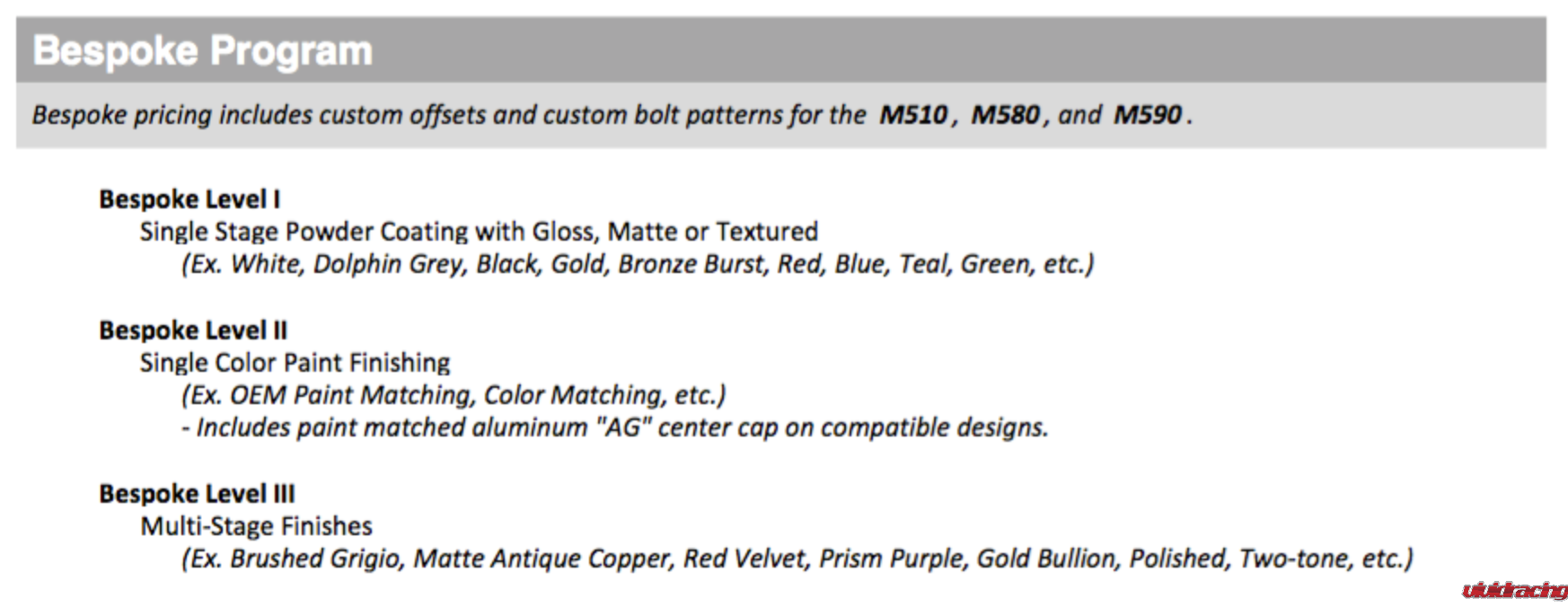

| Color | Bespoke Level 1 Colors, Bespoke Level 2 Colors, Bespoke Level 3 Colors, Gloss Black, RAW, SILVER MACHINED |
Wheel Specs:
*M632-GSM512198535
M632 19X8.5 5X112 +35 GSM 66.56
Silver Machined
*M632-GSM512199540
M632 19X9.5 5X112 +40 GSM 66.56
Silver Machined
*M632-GSM512208532
M632 20X8.5 5X112 +32 GSM 66.56
Silver Machined
*M632-GSM512201035
M632 20X10 5X112 +35 GSM 66.56
Silver Machined
*M632-GSM512201025
M632 20X10 5X112 +25 GSM 66.56
Silver Machined
*M632-GSM514201035
M632 20X10 5X114.3 +35 GSM 70.6
Silver Machined
*M632-GSM514201152
M652 20X11 5X114.3 +52 GSM 70.6
Silver Machined
*M632-GB514201035
M632 20X10 5X114.3 +35 GB 70.6
Gloss Black
*M632-GBM514201152
M652 20X11 5X114.3 +52 GB 70.6
Gloss Black
*M632-RAW888209015
M632 20X9 BLANK +15 RAW 54.1
RAW (BESPOKE)
*M632-RAW8882010515
M632 20X10.5 BLANK +15 RAW 54.1
RAW (BESPOKE)
*M632-RAW888201115
M632 20X11 BLANK +15 RAW 54.1
RAW (BESPOKE)
