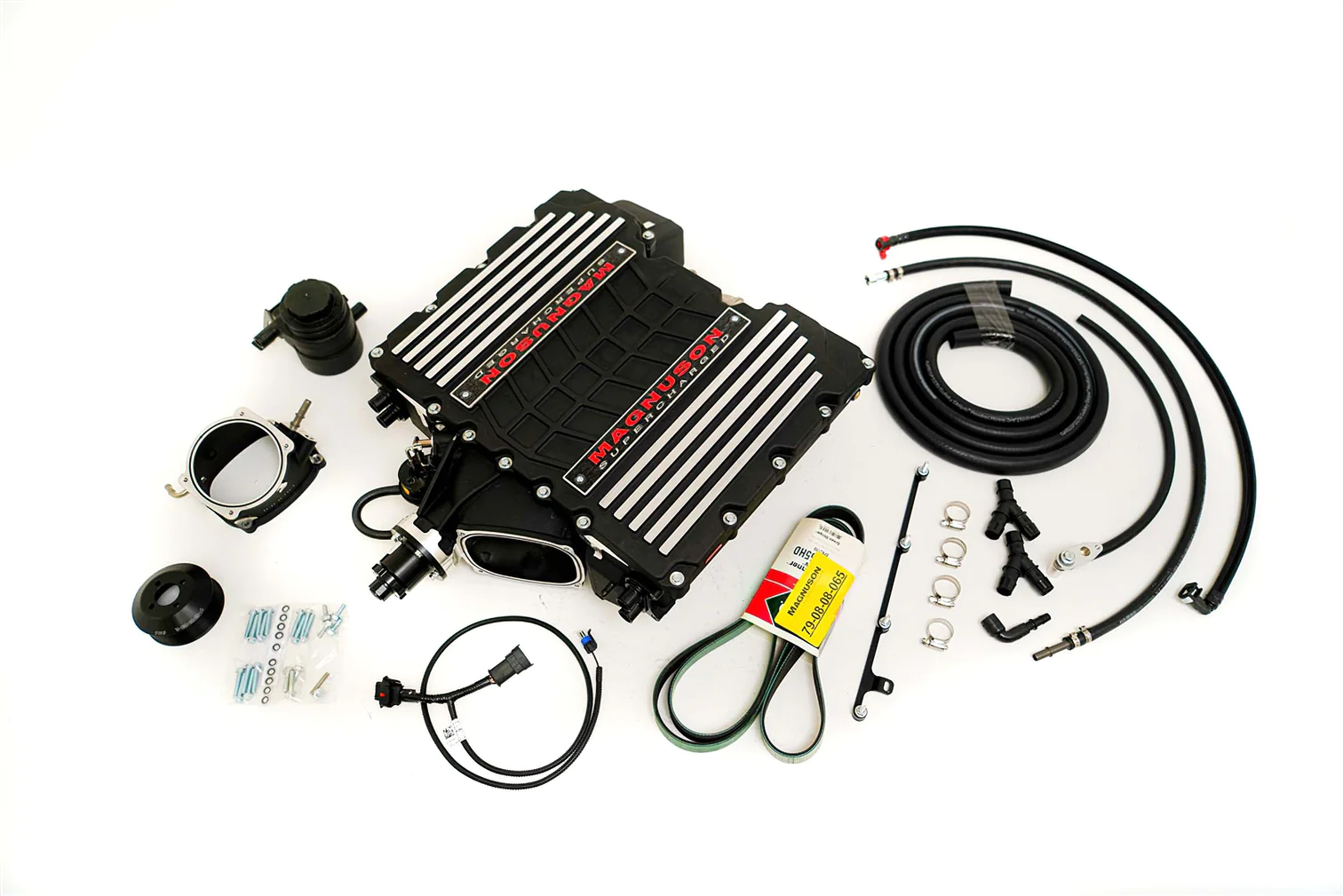

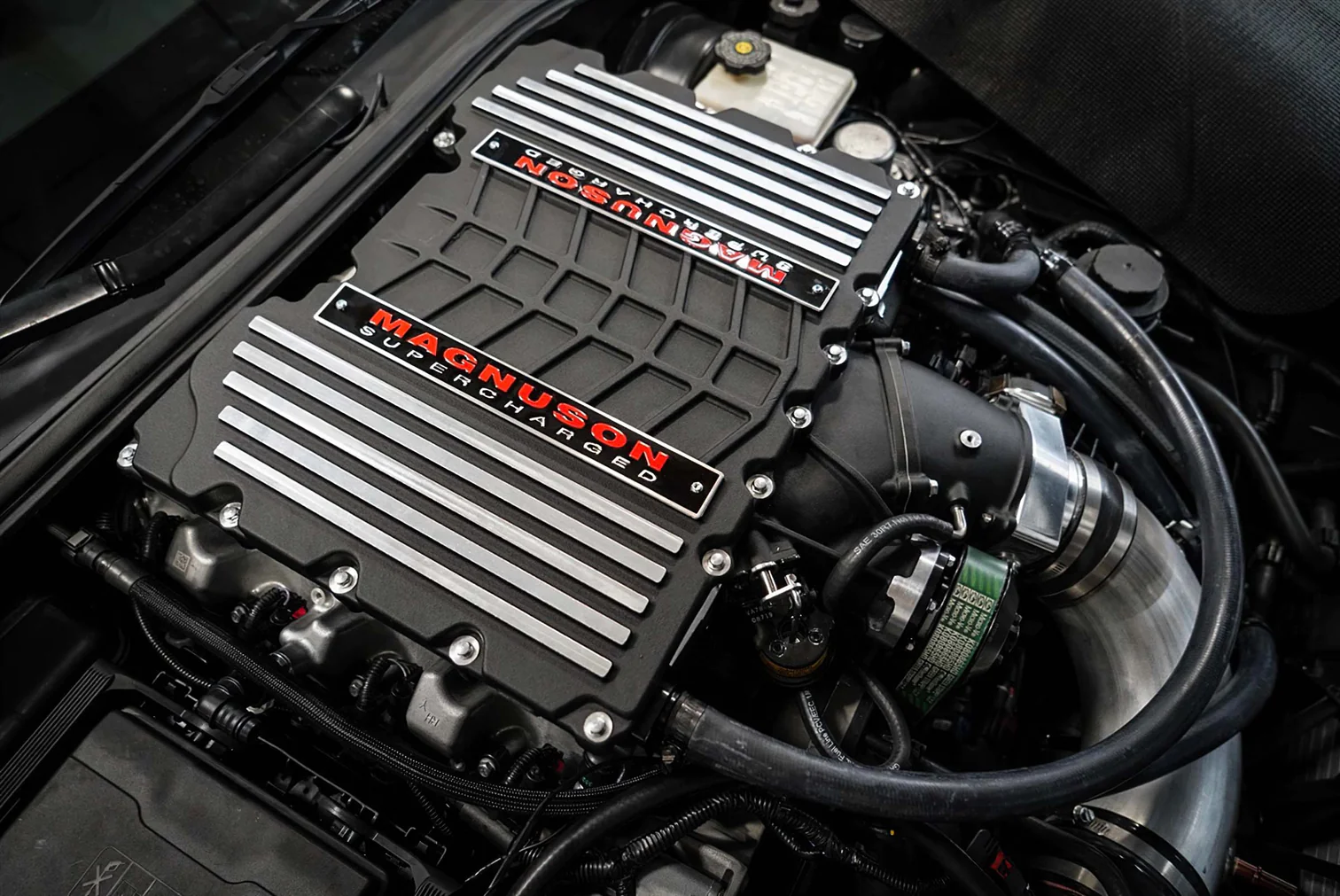

Ramp up your Chevrolet Corvette Z06’s engine power with an additional 76 extra horsepower by installing the Magnuson Magnum Di TVS2650R Supercharger w/ Fit Kit (No Calibration) Chevrolet Corvette Z06 LT4 14-19. Made by Magnuson Supercharger, a brand famously known for its high-performing superchargers made from the highest quality components, the Magnum DI TVS2650R upgrade for Chevrolet Corvette Z06 with the LT4 engine is designed to replace the factory supercharger or previously installed TVS2300 upgrade system and it is guaranteed to take your engine to the next level.

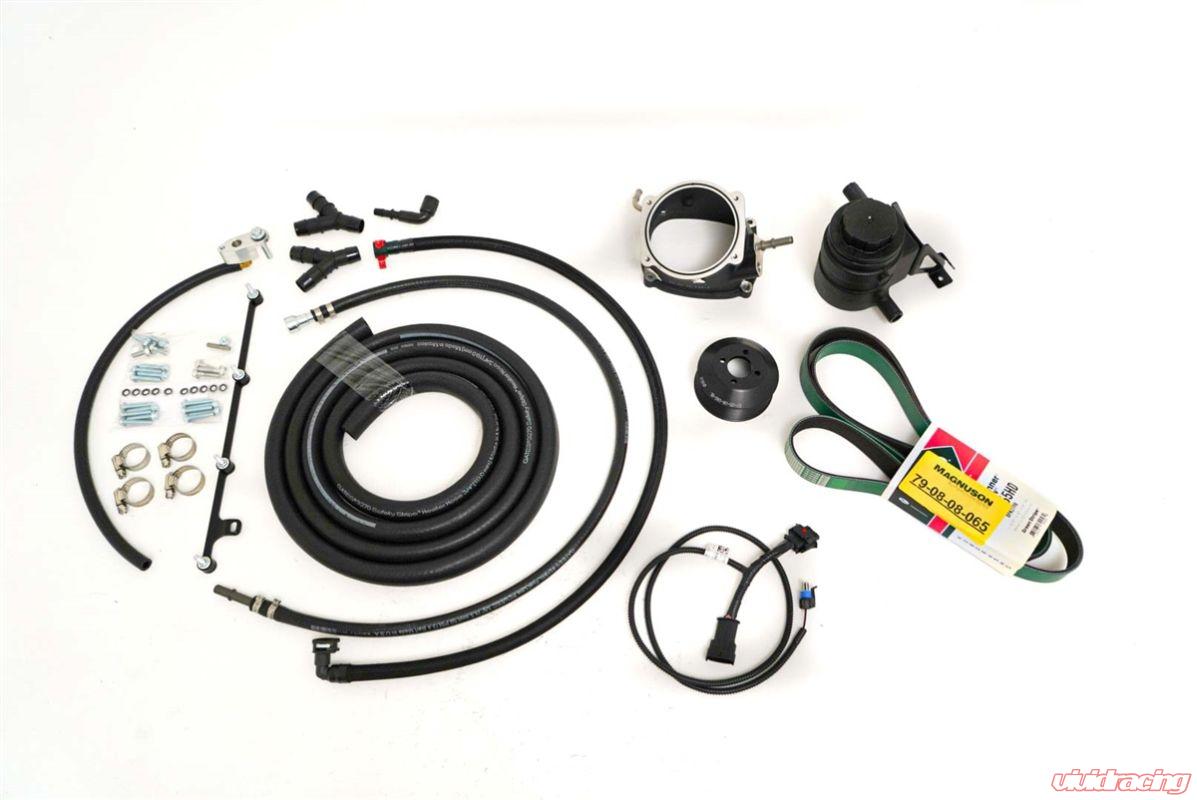

The system has been designed to fit perfectly under the hood of a stock C7 Z06, and apart from power additions, this system provides a solution to your engine’s cooling needs as it comes with two massive charge air coolers for maximum cooling capability. The Corvette Magnum System will give your engine an incredible 76 extra horsepower: 726 hp and 690 ft-lbs at the crank, without needing any modification for installation. The kit includes everything you will need to supercharge your Corvette, up to the detailed step-by-step installation instructions. The kit is available in our shop for $7,295, click on the blue button below to buy it now and to say hello to the highest efficiency positive displacement supercharger available in the market.
Features:

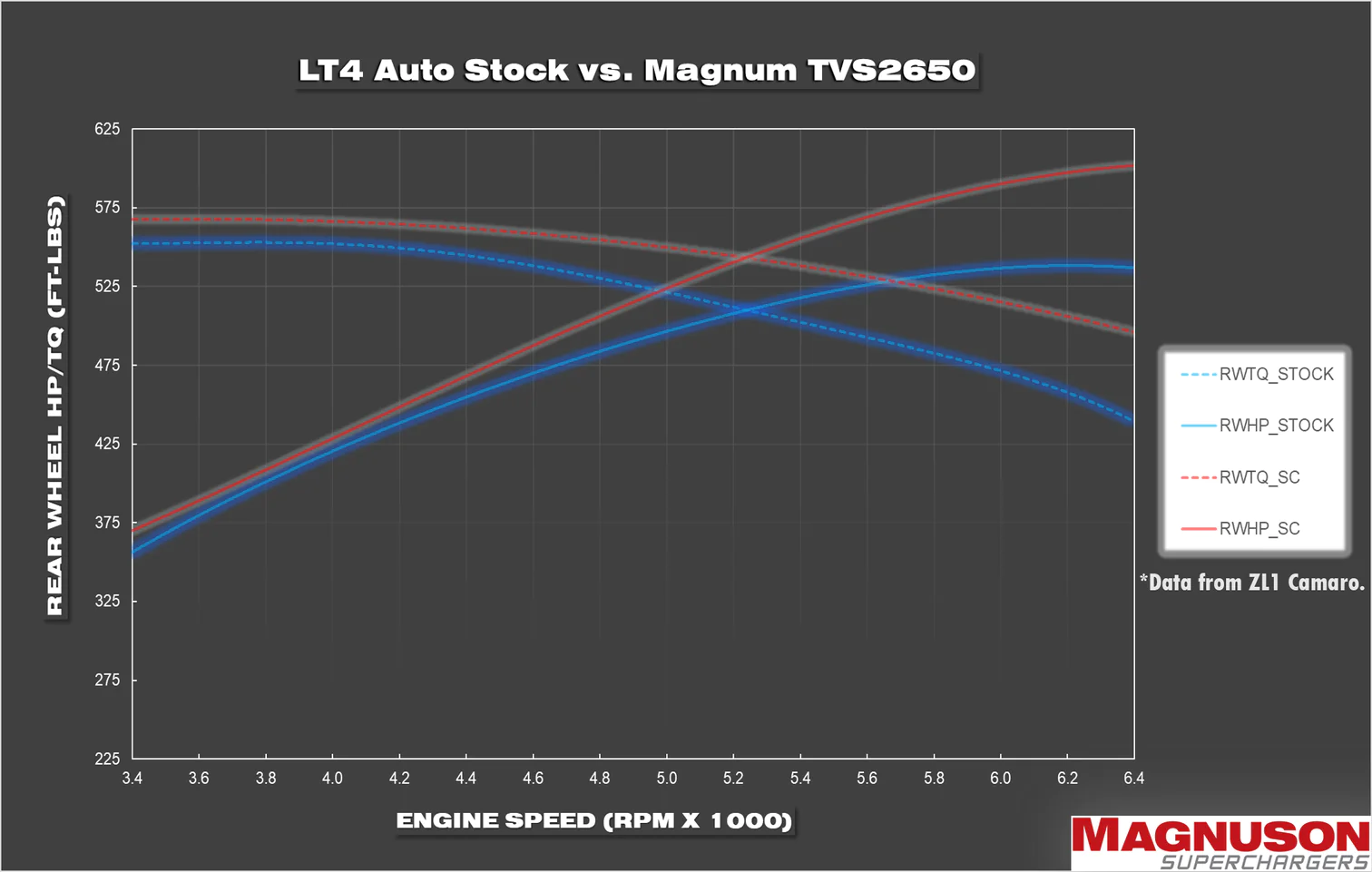

- 726 hp and 690 ft-lbs at 13 lbs of boost.
- Magnuson TVS2650 Supercharger System designed to mount to GM LT4 heads with OEM look, fit, and finish.
- Utilizes Eaton TVS Technology incorporating high helix, four-lobe rotors for maximum supercharger efficiency across the entire speed range.
- Utilizes patented Dynamic Flow Tuning (DFT) inlet porting.
- Designed to fit under the hood of LT4 vehicles (slight modification may be required for Corvette model with pulley sizes larger than 70mm.
- Bolt-on anodized billet cartridge-style front drive allows for future belt line upgrades.
- High flow dual charge air cooler set-up with ¾” water inlet and outlet ports reduce coolant restriction, allowing maximum flow with extremely high cooling efficiency.
- CNC-machined ports for optimized airflow into engine cylinders.
- 30% increase in airflow over TVS2300 systems
- Vacuum bypass system with instantaneous boost response designed to unload supercharger at engine idle and part-throttle for improved fuel economy. Intercooled bypass air is recirculated through the supercharger for rapid cooldown and ultimate performance.
- Proven maintenance-free supercharger technology. No added complexity of external supercharger oil coolers/heaters for extreme climates.
- Includes handheld tuner device, calibration, and detailed step-by-step instructions for a seamless installation experience.
- Standard 3-year/36,000-mile limited Supercharger System Warranty. An additional 3-year/36,000-mile limited Powertrain warranty may apply.
Fitment:
- Chevrolet Corvette Z06 LT4 Engines 14-19
