How To Install a Blow Off Valve Adapter on a Volkswagen Golf GTI

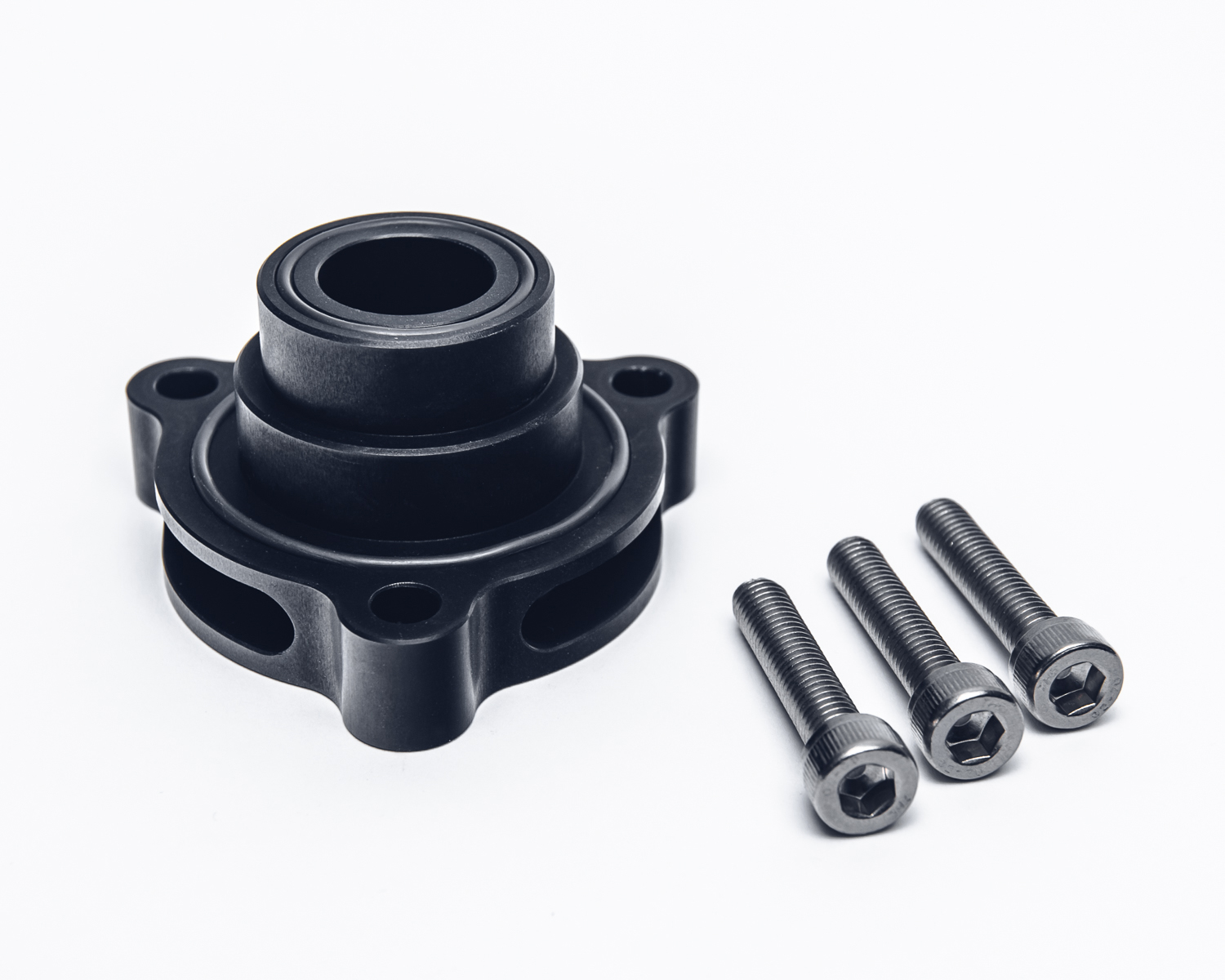

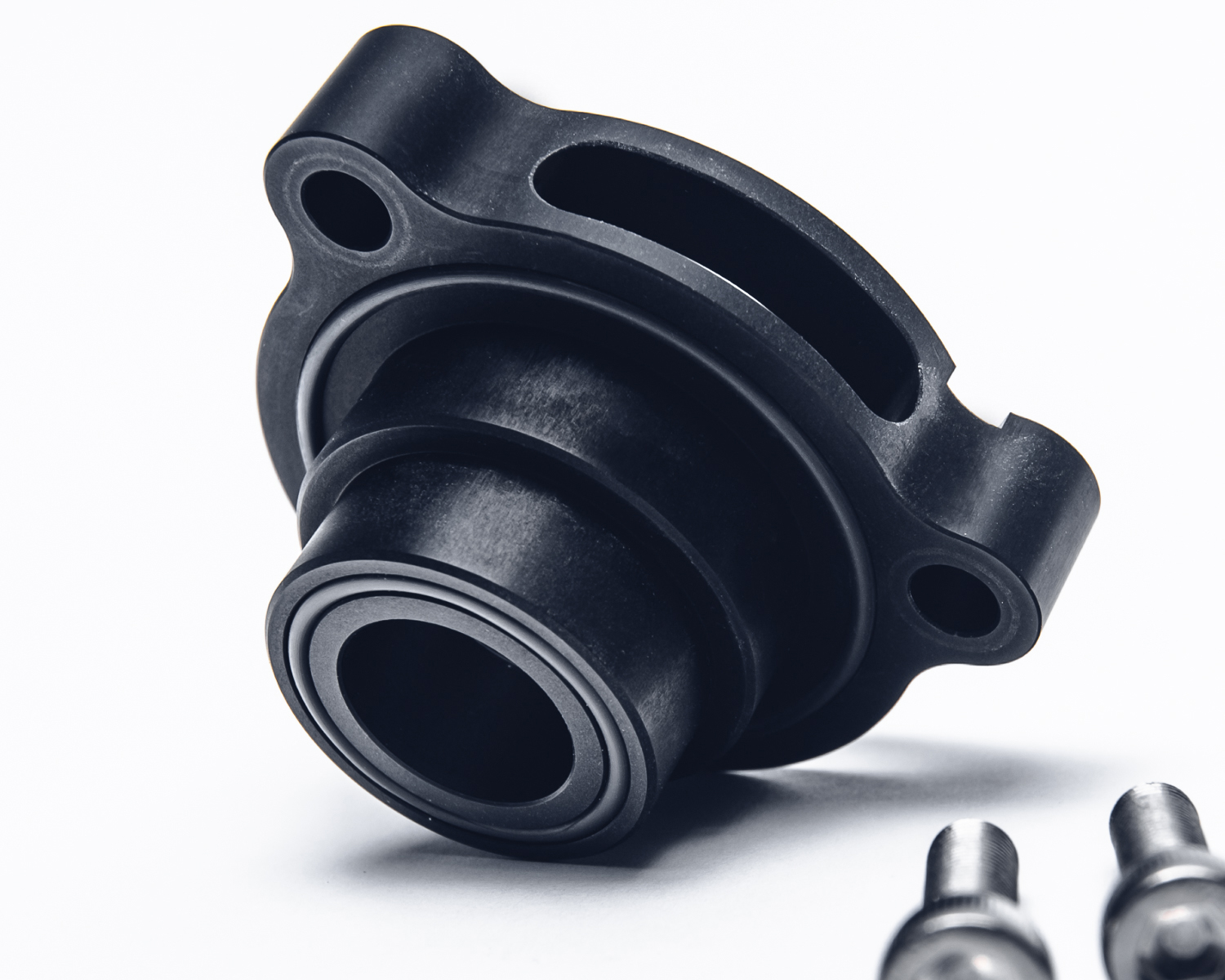

This Install Guide is intended to help with the installation of the VR Performance Blow Off Valve Adapter on a Volkswagen Golf GTi MK7.

  • Remove the air intake tube to gain access. Use pliers to allow clamp at air box to open. Loosen clamp on back of the intake tube.
  • With tube out of the way. Find the bypass harness and unplug.
  • With harness unplugged remove the 3 bolts and bypass valve.
  • With the new adapter align the notch and the wiring harness with bypass valve.
  • Install them into the turbo housing. Wiring harness should align to same position as factory.
  • With the new provided longer bolts tighten the bypass and spacer to the turbo housing.
  • Reinstall the disconnected wiring harness.
  • Reinstall the intake tube. Position and tighten the clamps.
  • Install is now complete.
