Three Stage Suspensions Systems Allow Your Tacoma to Have more Travel

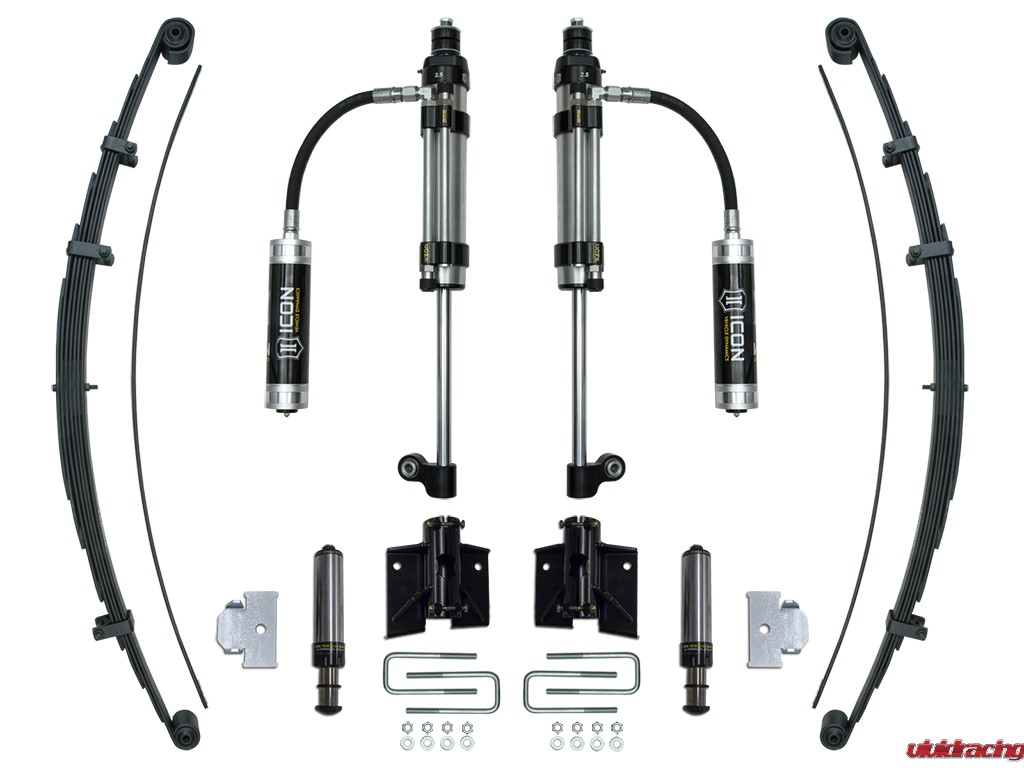

Help make your Toyota Tacoma more off road ready with some new parts from ICON Suspension. With recent developments made, Icon Vehicle Dynamics has now released their 3 stage RXT Suspension systems for the 2005+ Toyota Tacoma. These new parts will allow for more predictable characteristics and feature full adjust-ability. With the full kit installed, you will have 20% more travel to allow for you to get to even the most extreme of locations. These kits are 100% made in the USA and also are 100% plug-and-play. Full features are listed below as well as photos of these new parts.
If you have any questions regarding Icon Suspension, or would like to place an order, please contact us! We can be reached by phone at 1.480.966.3040 or via email at [email protected]!
Click here to view our entire inventory of Icon Vehicle Dynamics Suspension systems
ICON RXT Multi-Rate Leaf Spring
- 3 user-adjustable spring rates for unique vehicle configurations
- Military wrap front eyelet for increased durability
- Galvanized leaf separators reduce friction and aid in corrosion resistance
- Leaf tip inserts reduce noise and increase ride comfort
- Potential for increased wheel travel when used with RXT shock (up to 20%) without sacrificing up-travel
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Direct bolt-in to OEM spring location makes for an easy install
ICON RXT Rear Shock
- Unique side-mounted lower eyelet allows for increased travel while utilizing factory mounting location
- Vehicle-specific tuned shocks provide increased damping and oil volume
- CDC Valve technology allows for 10 settings of quick and easy compression damping adjustment
- Omega Series two-tube bypass allows for 24 settings of compression and rebound damping adjustment
- Easy-to-adjust detented knobs offer quick adjustability without the use of tools
- 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
- Shocks are fully rebuildable and revalveable
- Simple and straightforward installation
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Made in the USA
ICON Hydraulic Rear Bump Stop Kit
- 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
- Position sensitive technology exponentially increases bottom-out resistance
- Vehicle specific bump stop tune to provide smooth engagement and best ride quality
- Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
- Heavy duty 1 ¼” CNC machined nitro steel shaft
- Multi-stage CAD plated body for maximum corrosion resistance
- Double sealed high pressure Schrader valve
- Operating range of 50 – 250 PSI
- Replaceable noise reducing striker pad
- Fully serviceable
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Made in the USA
