The Most Convenient Way to Lower Your Mercedes Benz is With a RENNtech Hand-held Module
Are you looking for a simple plug and play solution for lowering your Mercedes Benz? If your vehicle came equipped with factory air suspension, you are in luck! RENNtech offers a very simple solution for those who want full control over the height of their suspension. By incorporating a OBD and windows / Android based platform, users can easily adjust and set ride height on the fly. If you want to hard park and be low, or have a comfortable drive height, you can do it all.

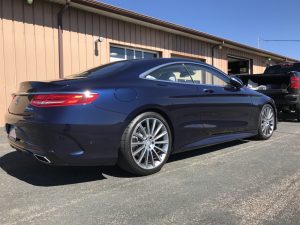

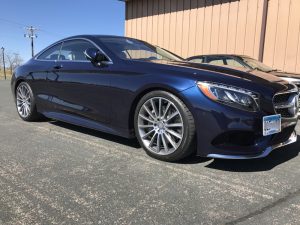

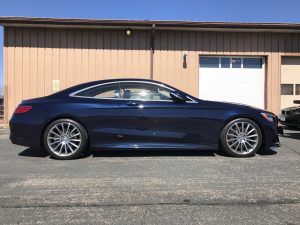

Check out the photos of our customers recently lowered S550 Coupe. The vehicle has a rather conservative drop, but it closes up the wheel gap very nicely. This is a great example of how a “functional” drive height can look without being slammed to the ground. Product information from RENNtech is listed below. Any questions or order inquiries please feel free to give a performance specialist a call at 1-480-966-3040 or simply email [email protected].
To view all RENNtech products click this link
Product Details:

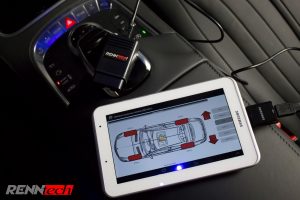

The RENNtech Hand-Held Suspension Module (HSM) is designed to work with the W222 – S-Class Sedan and C217 – S-Class Coup?/Cabriolet, equipped with the Mercedes Airmatic and Magic Body Control Suspensions.The unit allows the user to have full control over all four corners of the vehicle?s suspension and adjust in 1mm increments.The HSM comes pre-loaded with a RENNtech lowering setting. User can load their custom setting onto the HSM to set the vehicle to their preffered ride height.The desired lowering setting will be loaded onto the vehicle via the ODB2 port in the footwell of the car. After plugging the HSM into the ODB2 port, the user can toggle a switch to load the factory or the adjusted ride height. After a few seconds, the new setting is uploaded and the car will adjust to the new height.The factory setting will always be stored on the HSM and the user can set the vehicle back to the factory setting.Once the settings are loaded, simply unplug and store for future use.All RENNtech HSMs are adjustable via USB using either Windows or Android OS.The software allows the user to adjust the ride-height at each corner in 1mm increments independently. The software also has three locations where the user can store pre-configured suspension setups for quick changes.Features:
- Adjustment increments: 1mm
- Maximum Lowering: Limited only by vehicle
- Adjustment Methods: PC or Android (Tablet)
- Size: 73mm x 44mm x 24mm
- View Install Instructions Here
Notes:
- Available for the W222 – S-Class Sedan MY2014+ and C217 – S-Class Coup?/Convertible MY2014+
- Lower or Raise your car to your prefered ride height.
- Adjusted setting loaded onto car via ODB2 port
- Installation in less than 10 seconds
- With the first use, the DLM will be ‘married’ to the vehicle and can only used with this vehicle
| lowering module:32.222.6001 |  |
Renntech Handheld Suspension Module Mercedes-Benz S550 C217 15-17 | $1,495.00 |  |
| lowering module:32.222.6001 | |
Renntech Handheld Suspension Module Mercedes-Benz S65 AMG C217 15-17 | $1,495.00 | |
| lowering module:32.222.6001 | |
Renntech Handheld Suspension Module Mercedes-Benz S63 AMG 5.5L V8 BiTurbo W222 12-17 | $1,495.00 | |
