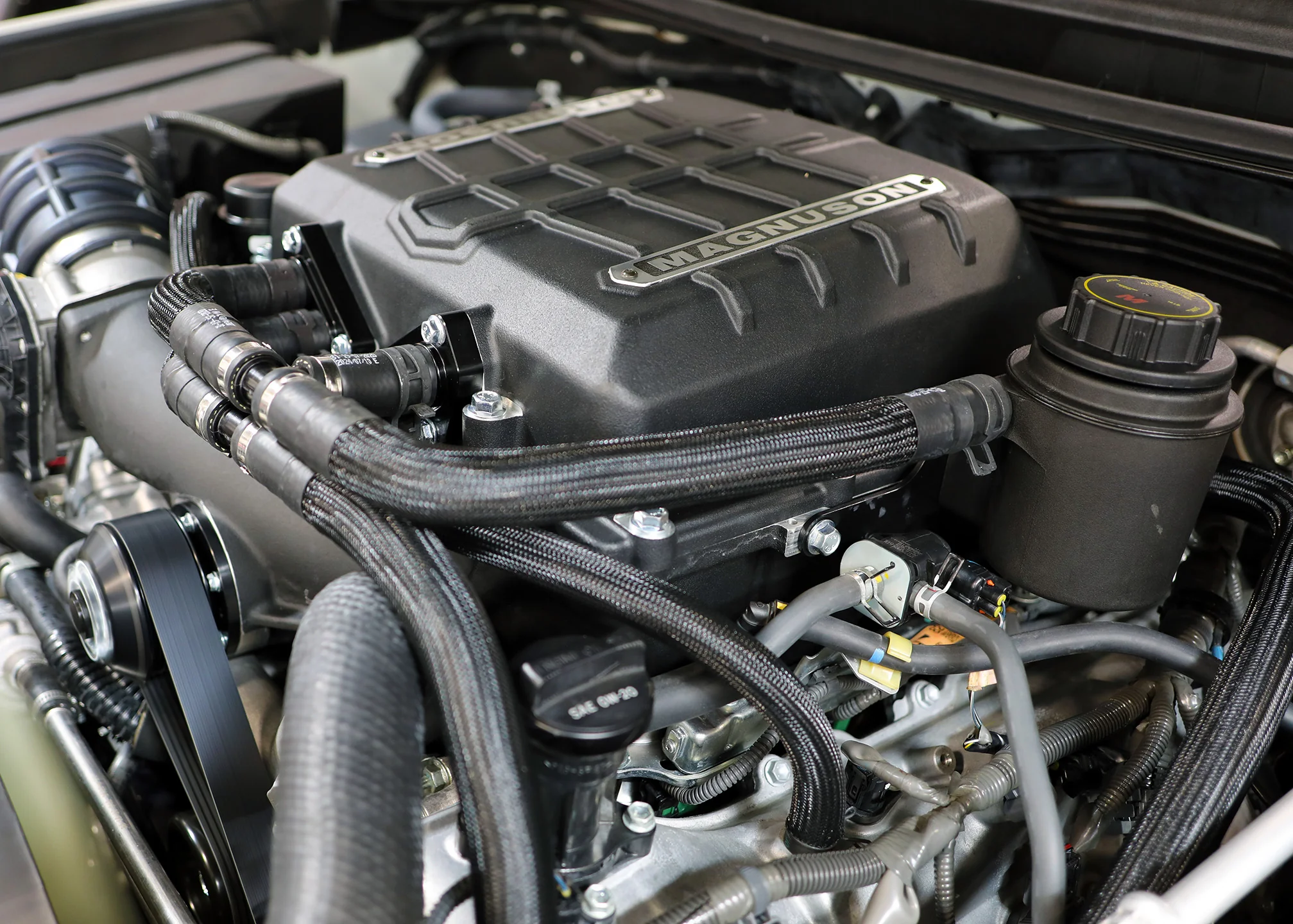

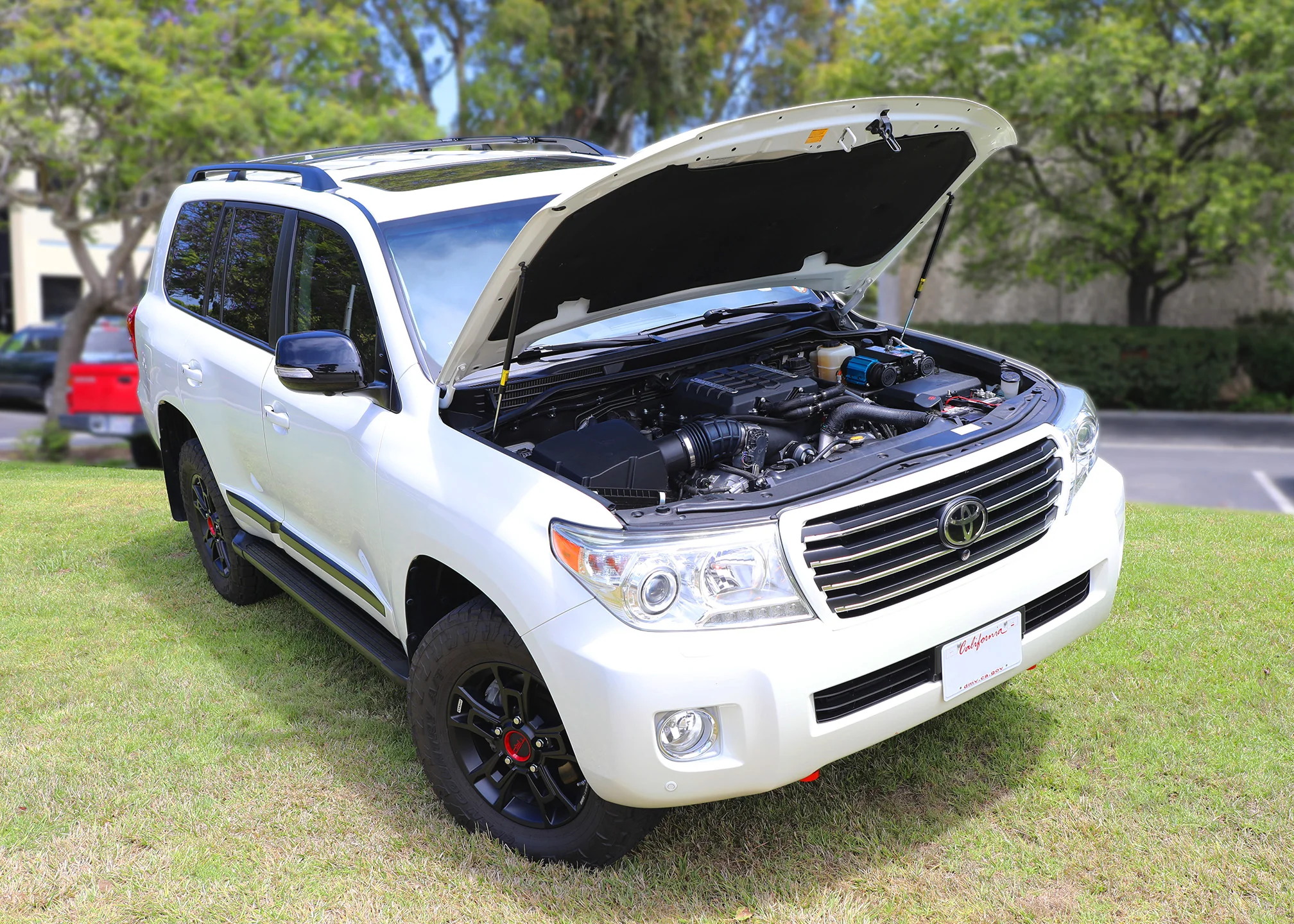

Magnuson Superchargers has just released their new Supercharger kit for the Toyota Land Cruiser and Lexus LX570 that was produced from 2008-2021. Designed for the 5.7L V8 engine, this takes horsepower from 381 to nearly 550! The complete bolt on supercharger kit includes everything you need to install it including the tuning. For years owners of the Land Cruiser wondered how you could make this kit work and now you can.
Vivid Racing has done many of these supercharger kits on the shared engine from the Toyota Tundra. Even dyno testing them on our Mustang Dyno to prove out the gains. We had one on our very own 2017 Toyota Tundra TRD Pro which was a monster. Magnuson own test made 543 horsepower and 535 lb-ft of torque to the crank at just 7 psi, with significant gains across the entire RPM band. That’s usable power you can feel, whether you’re on the road or off. The roots style blower that mounts on top of the engine has instant torque and when combined with the V8 engine is great to improve towing. The supercharger gains its performance from an air to water intercooler setup mounted near the radiator. The superchargers are maintenance free and are backed by a 3 year 36000 mile warranty. 2008-2019 models are also CARB approved for those in California.
View the install we did on the similar 5.7L V8 Tundra Here.

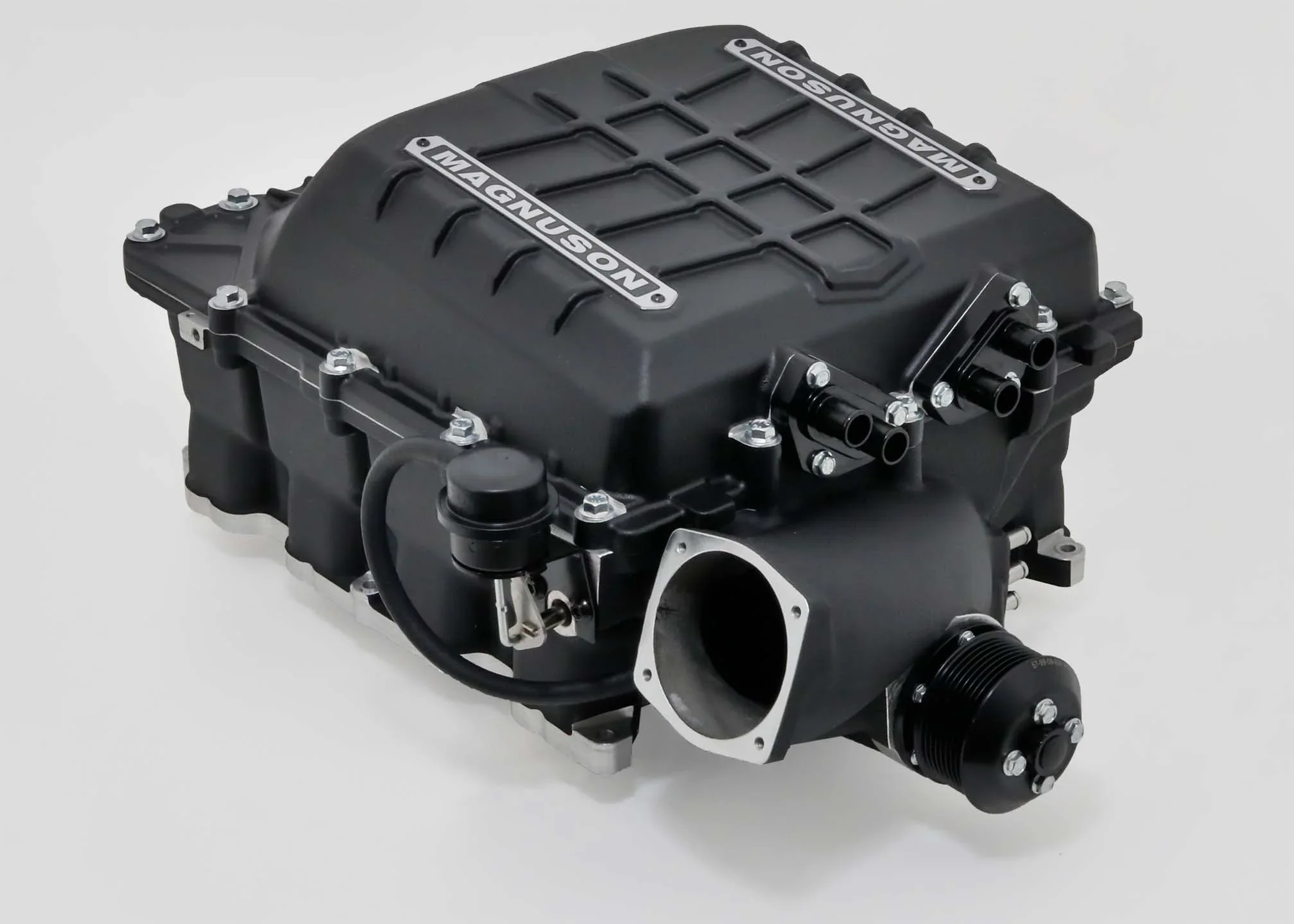

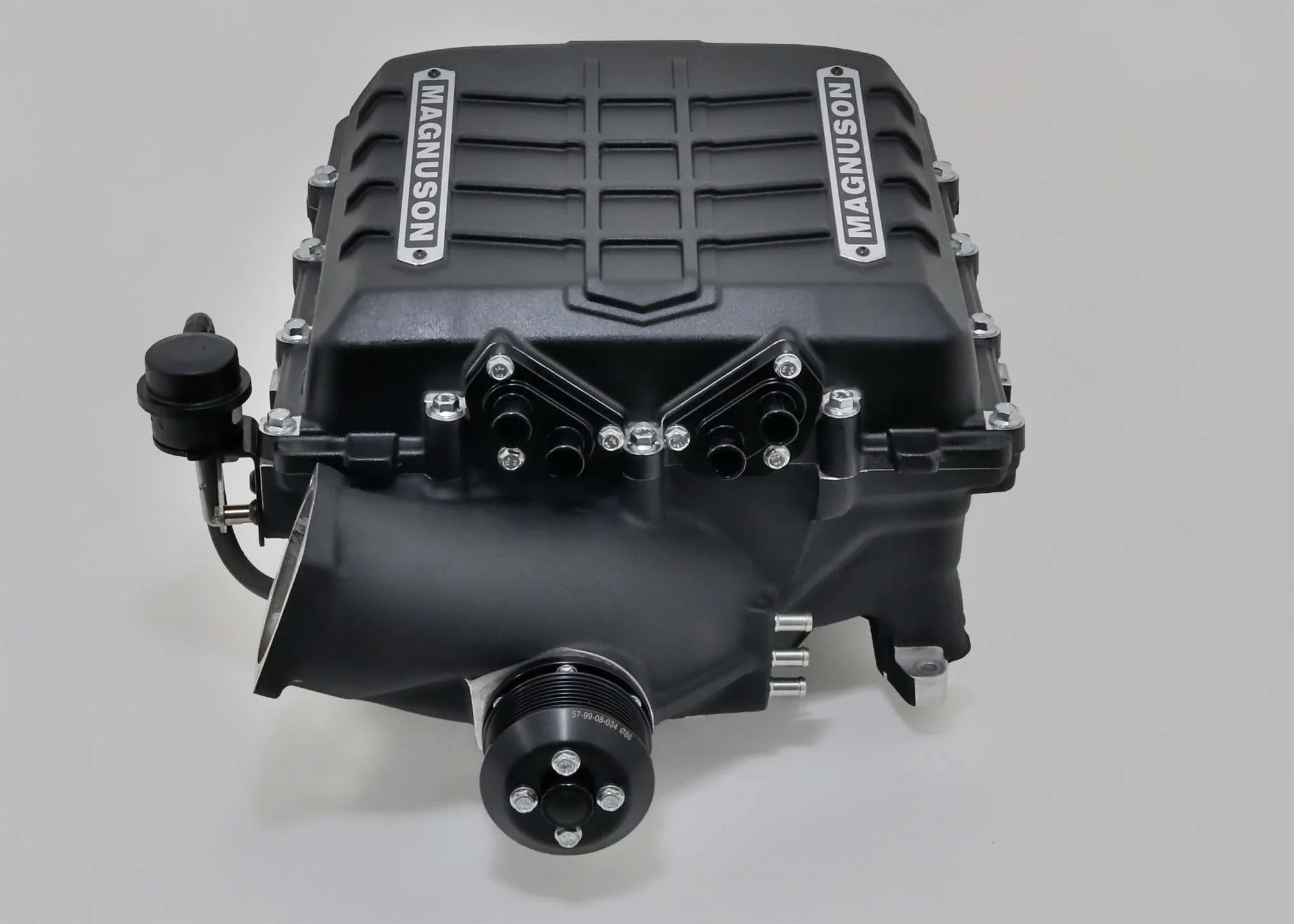

• Utilizes Eaton TVS Technology incorporating high helix, four lobe rotors for maximum supercharger efficiency across entire speed range.
• Utilizes patented Dynamic Flow Tuning (DFT) inlet porting.
• Bolt-on anodized billet cartridge-style front drive allows for future belt line upgrades.
• High flow dual charge air cooler set-up with ¾” water inlet and outlet ports reduce coolant restriction, allowing maximum flow with extremely high cooling efficiency.
• CNC-machined ports for optimized airflow into engine cylinders.
• Vacuum bypass system with instantaneous boost response designed to unload supercharger at engine idle and part-throttle for improved fuel economy. Intercooled bypass air is recirculated through the supercharger for rapid cooldown and ultimate performance.
• Proven maintenance-free supercharger technology. No added complexity of external supercharger oil cooler/heaters for extreme climates.
• Includes handheld tuner device, calibration, and detailed step by step instructions for a seamless installation experience.
• Standard 3-year/36,000-mile limited Supercharger System Warranty.
• EO Number D-488-58 (2008-2019 model years only)
Check out these videos of the 5.7L V8 from the Tundra with the Magnuson Supercharger Kit
