Welcome to our latest guide, focusing on enhancing the performance and driving experience of the iconic Mazda Miata NA! In this blog, we’ll delve into the realm of the top five upgrades that can transform your Miata without breaking the bank. Whether you’re a seasoned enthusiast or a newcomer to the world of automotive customization, these mods, all together, are priced under $3000 and are sure to add an extra layer of excitement and thrill to your Miata driving adventures.
1. Konig Hypergram Wheels – 15×7.5 4×100 35mm

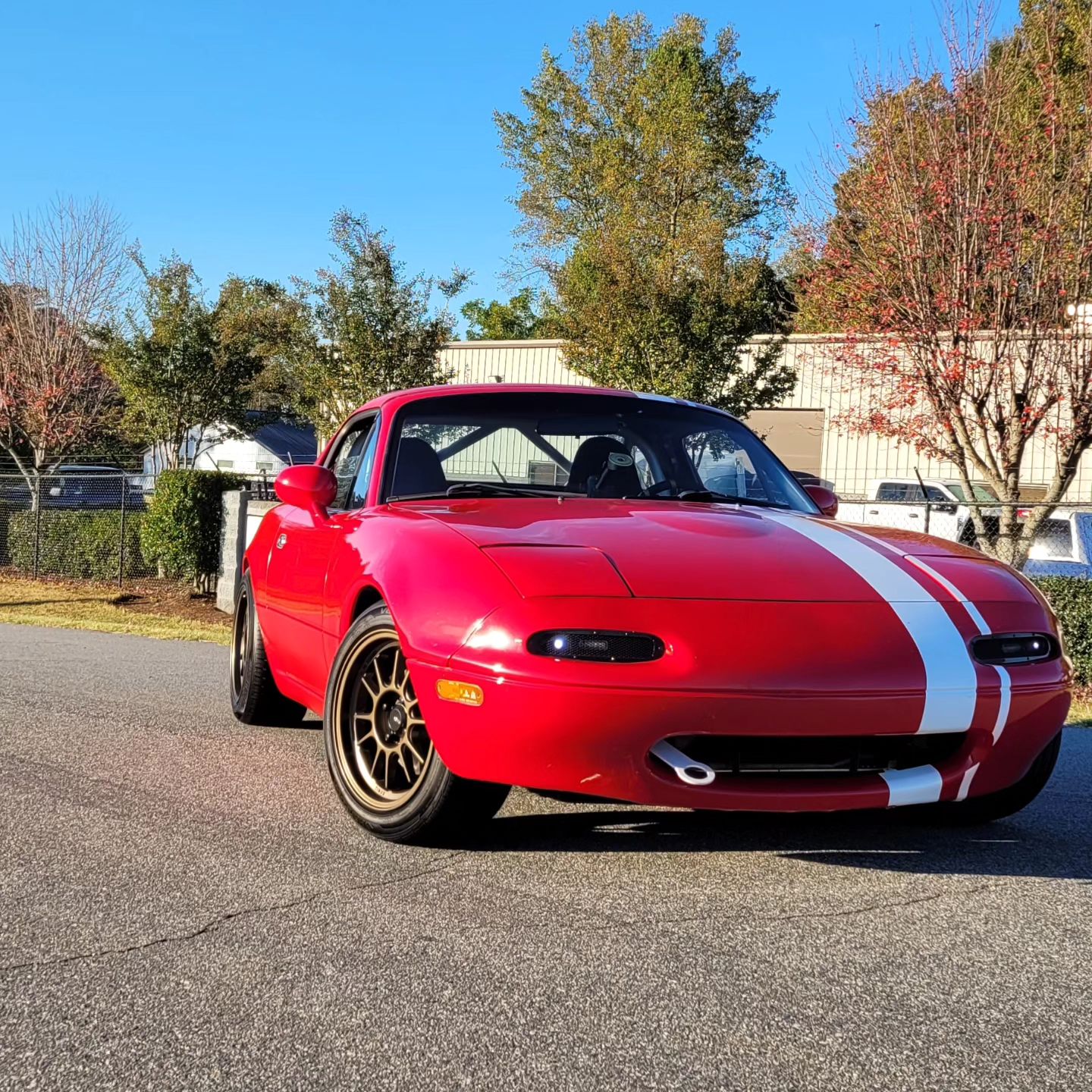

This rad NA Miata featured above is from @lexworxllc
If you want to see an exceptional example of a NA build check out that page!
The Hypergram is a lightweight, 12-spoke design that is motorsport inspired in its construction, appearance and its ability to clear many big brake cars and upgrades! Utilizing Flow Forming Technology allows the Hypergram to be lighter and stronger. With a large range of aggressive sizing the Hypergram is finished in either Matte Grey, Race Bronze, Metallic Carbon with Machined Lip or Matte Black in 15×7.5, 15×8, 15×8.5, 17×8, 17×9, 18×8.5, 18×9.5, 18×10.5 and 18×11 sizes.
Specification:
- Color Finishes: Matte Black | Race Bronze | Metallic Carbon w/ Machined Lip | Matte Grey
- Max Load: 1102
- Center Bore: 73.1
- Type: Flow Formed
- Weight: 12.72
- Size: 15×7.5
- Offset: 35 mm
- PCD: 4X100
- Center Cap Code: CAPFFB
- Back Space: 5.63

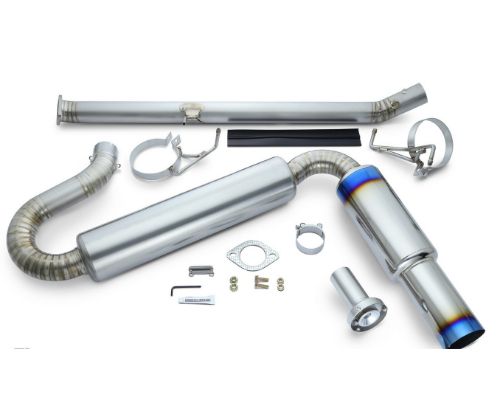

2. Tomei Full Titanium Muffler Kit Mazda Miata MX-5 NA 1990-1997
The Tomei Full Titanium Muffler Kit is a premium aftermarket exhaust system designed to enhance the performance, sound, and aesthetics of your Mazda Miata NA. Crafted from lightweight and durable titanium, this exhaust kit offers a range of benefits that make it a standout modification for enthusiasts.
One of the key advantages of the Tomei Full Titanium Muffler Kit is its weight savings compared to the stock exhaust system. Titanium is significantly lighter than traditional stainless steel, reducing overall vehicle weight and improving power-to-weight ratio. This weight reduction not only enhances acceleration and throttle response but also contributes to a more agile and responsive driving experience.
In addition to weight savings, the Tomei Full Titanium Muffler Kit is engineered to optimize exhaust flow and minimize backpressure. This leads to increased horsepower and torque throughout the RPM range, unlocking additional performance potential from your Miata’s engine.
Beyond performance gains, the Tomei exhaust system delivers an exhilarating exhaust note that enhances the auditory experience of driving your Miata. The unique tone and character of the titanium construction provide a distinct sound profile, adding a sporty and aggressive soundtrack to your driving adventures.
Furthermore, the Tomei Full Titanium Muffler Kit features precision craftsmanship and attention to detail, resulting in a visually stunning upgrade for your Miata’s rear end. The polished titanium finish not only looks impressive but also resists corrosion, ensuring long-lasting durability and aesthetic appeal.
Overall, the Tomei Full Titanium Muffler Kit is a must-have upgrade for Miata enthusiasts seeking improved performance, a captivating exhaust sound, and a touch of premium craftsmanship to elevate the overall driving experience.
Features
- Main pipe 60.5mm, Improved throttle response and power feeling
- Dramactically improves driving enjoyment of lightweight MX5
- Ultra-high quality sound from straight through titanium design
- 1.0mm thin-thickness pure titanium achieved amazingly lightweight of 5.7kg
- Flangeless slip joint identical to racing cars
- Sound reducer included
Fitment:
- Mazda Miata MX-5 NA 1990-1997

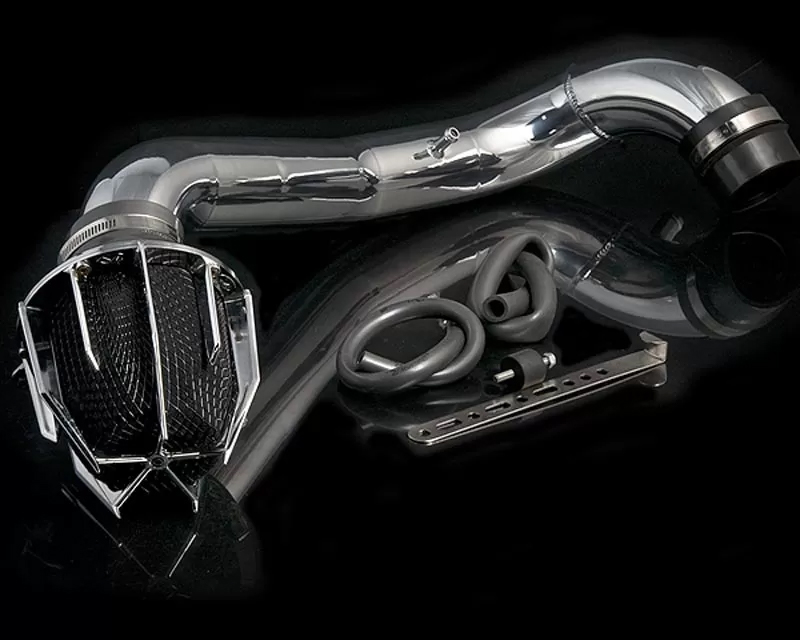

3. Weapon-R Dragon Intake System Mazda Miata 1.6L 90-93
Weapon-R Dragon Intake Systems are one of the mostly highly rated intake systems in the world. Used in many countries in many different forms of racing. Also recently rated “Best Overall Performer”, outperforming Cold Air & Short Ram Intake systems, in the 2003 Tuner Performance Reports, Intake system Battle. These Intake Systems are CNC Mandrel Bent out of 6061 aluminum, and then Hand Tig Welded to ensure a positive seal and proper fitment. Each one is carefully tuned, by matching the engines displacement, air intake capacity and airspeed to the intake systems tube size and length, maximizing every engines performance output.
Dragon Intake Systems are matched with the World Famous Dragon Filter, which provides maximum airflow with the protection of high quality dense Poly Urethane Foam. Many studies have shown Flow rates of up to 80% more Air and Better Dirt Filtration with Foam Filter than the conventional cotton filter. The Dragon Filter features a Computer CAD Designed and Flow benched Tested Velocity Stack, which greatly increases airflow and air volume into the engine, therefore increasing engine performance.
This intake available in Polished or Carbon Fiber finishes. Please make your selection below.
Additional Information:
- Many applications CARB approved
- Open pore high density re-usable foam filter
- High-polished Aluminum piping
- Everything included for a clean installation
Fits: 90-93 Mazda MX-5 Miata 1.6L only.

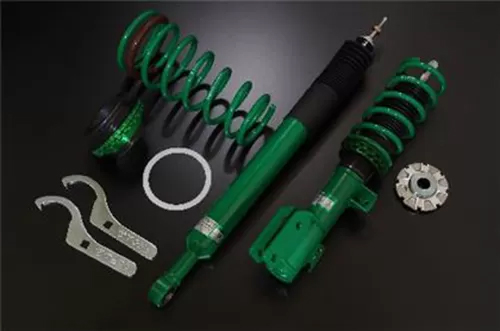

4. TEIN STREET BASIS Z Coilover Kit Mazda Miata NA6C FR 1990-1998 USA
The Tein STREET BASIS Z Coilover System combines affordability and comfort packaged into a masterfully constructed suspension system. These coilovers utilize a Twin-Tube setup that when compared to the regular mono-tube systems, these twin-tube systems attain longer stroke with a smaller repulsive force, resulting in increased ride comfort. Thanks to this unique characteristic, you can negotiate gaps and bumps steadily on rough roads, meaning a smooth ride at low speed and stability at high speeds.
Front Specifications:
- Damping Force Adjustment: N
- Full-Length Ride-Height Adjustable: N
- Upper Mount: OEM
- Recommended Ride Height (mm): -35
- Recommended Ride Height (inch): -1.4
- Ride Height Adjustable Range:
- Max Low (mm): -77
- Max Low (inch): -3
- Max High (mm): -12
- Max High (inch): -0.5
- Recommended Low (mm): -45
- Recommended Low (inch): -1.8
- Recommended High (mm): -25
- Recommended High (inch): -1
- Spring
- Rate (kgf/mm): 7
- Rate (lbs/in): 392
- SP PART#SW070-13175
- Free Length (mm): 175
- I.D. (mm): ID70
Rear Specifications:
- Damping Force Adjustment: N
- Full-Length Ride-Height Adjustable: N
- Upper Mount: OEM
- Recommended Ride Height (mm): -30
- Recommended Ride Height (inch): -1.2
- Ride Height Adjustable Range:
- Max Low (mm): -70
- Max Low (inch): -2.8
- Max High (mm): 6
- Max High (inch): 0.2
- Recommended Low (mm): -40
- Recommended Low (inch): -1.6
- Recommended High (mm): -20
- Recommended High (inch): -0.8
- Spring:
- Rate (kgf/mm): 6
- Rate (lbs/in): 336
- SP PART#SW060-13175
- Free Length (mm): 175
- I.D. (mm): ID70
Fitment:
- Year: 1990-1998
- Make: Mazda
- Model: Miata
- Drivetrain: FR
- Chassis: NA6C
- Motor Size: 1600
- Vehicle Region: USA
Notes:
- 2Dr/4Cyl
Features:
- Steel Construction
- Twin Tube internal construction
- Thread Type Ride Height Adjustment
- Utilizes OEM Mounts
- 16 way adjustable dampers, compression and rebound combined
- High Durability and Reliability
- Anodized brackets with Teflon coated shock body for heavy duty rust prevention

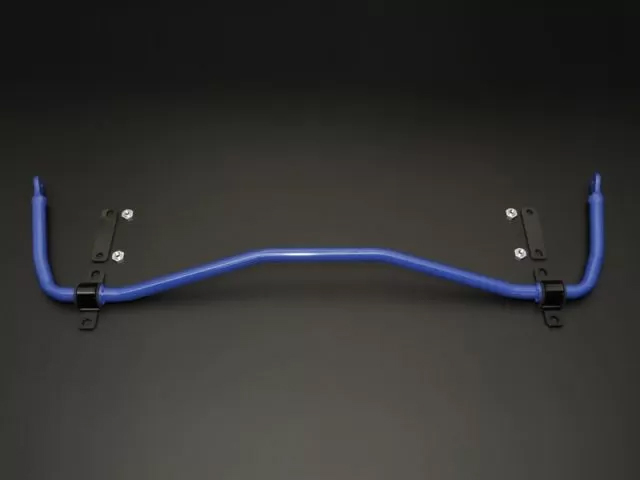

5. Cuscu Sway Bars Front and Rear
Cusco Sway Bars, also known as anti-roll bars or stabilizer bars, are crucial components that significantly impact the handling and performance of your Mazda Miata NA. These bars are designed to minimize body roll during cornering, enhancing overall stability, grip, and control.
By installing Cusco Sway Bars, you can experience a noticeable reduction in body lean when navigating tight turns and curves. This improvement not only enhances the driving dynamics of your Miata but also instills confidence, allowing you to push your vehicle to its limits with greater precision.
The front and rear Cusco Sway Bars work together to promote balanced handling characteristics. They help distribute weight more effectively, keeping all four tires firmly planted on the road surface. This translates to improved traction and responsiveness, especially during spirited driving or track sessions.
Additionally, Cusco Sway Bars offer adjustability, allowing you to fine-tune your Miata’s handling characteristics to suit your preferences and driving style. Whether you’re seeking sharper turn-in response, reduced understeer, or enhanced overall stability, these sway bars provide the versatility needed to optimize your driving experience.
Overall, investing in Cusco Sway Bars for the front and rear of your Mazda Miata NA is a smart choice for enthusiasts looking to elevate their driving pleasure, cornering prowess, and overall performance on both the street and the track.
Cusco Stabilization Sway Bar Front 24mm Mazda Miata
Cusco Sway Bar 16mm Rear Mazda Miata NA8C 89-97
