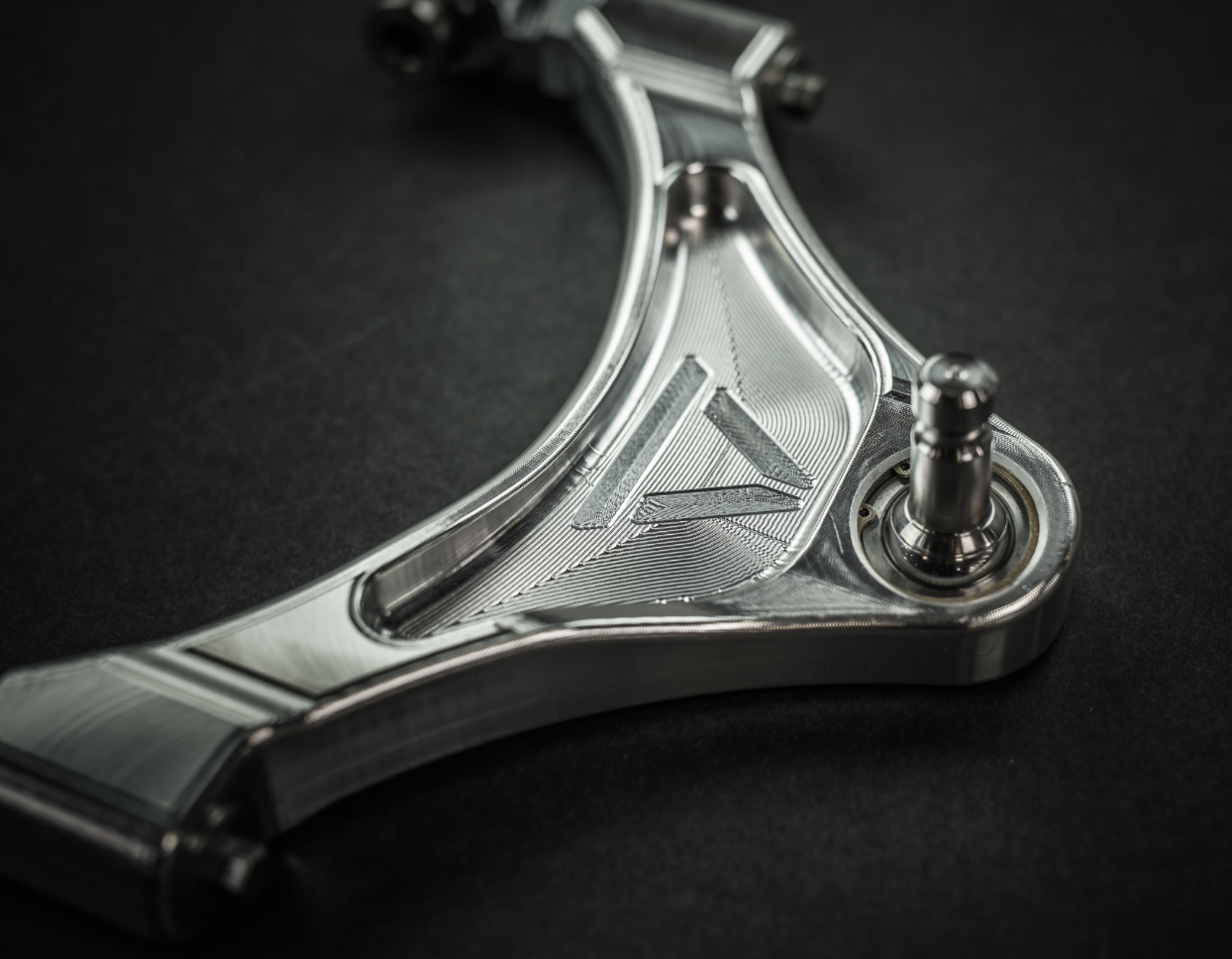

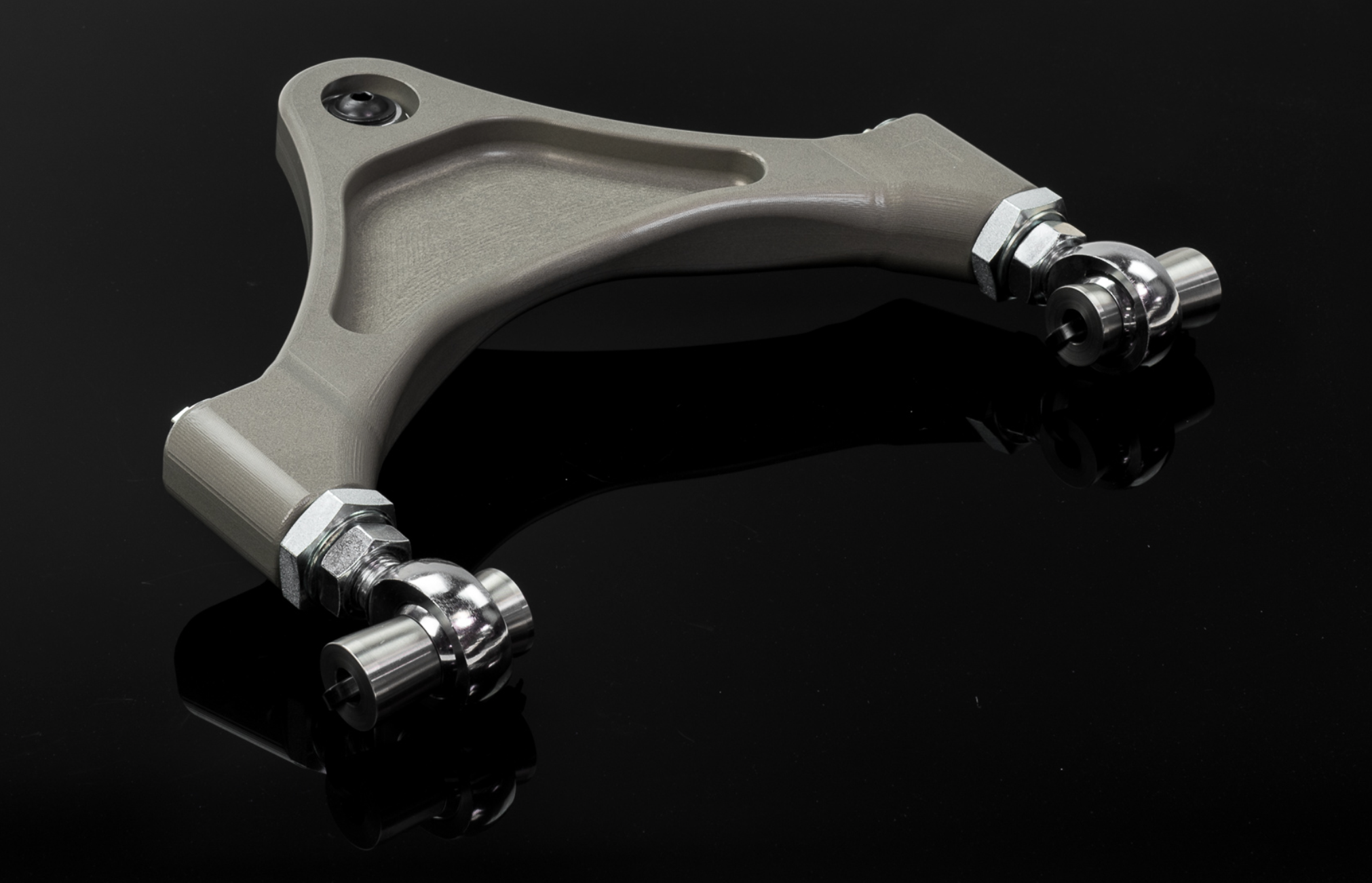

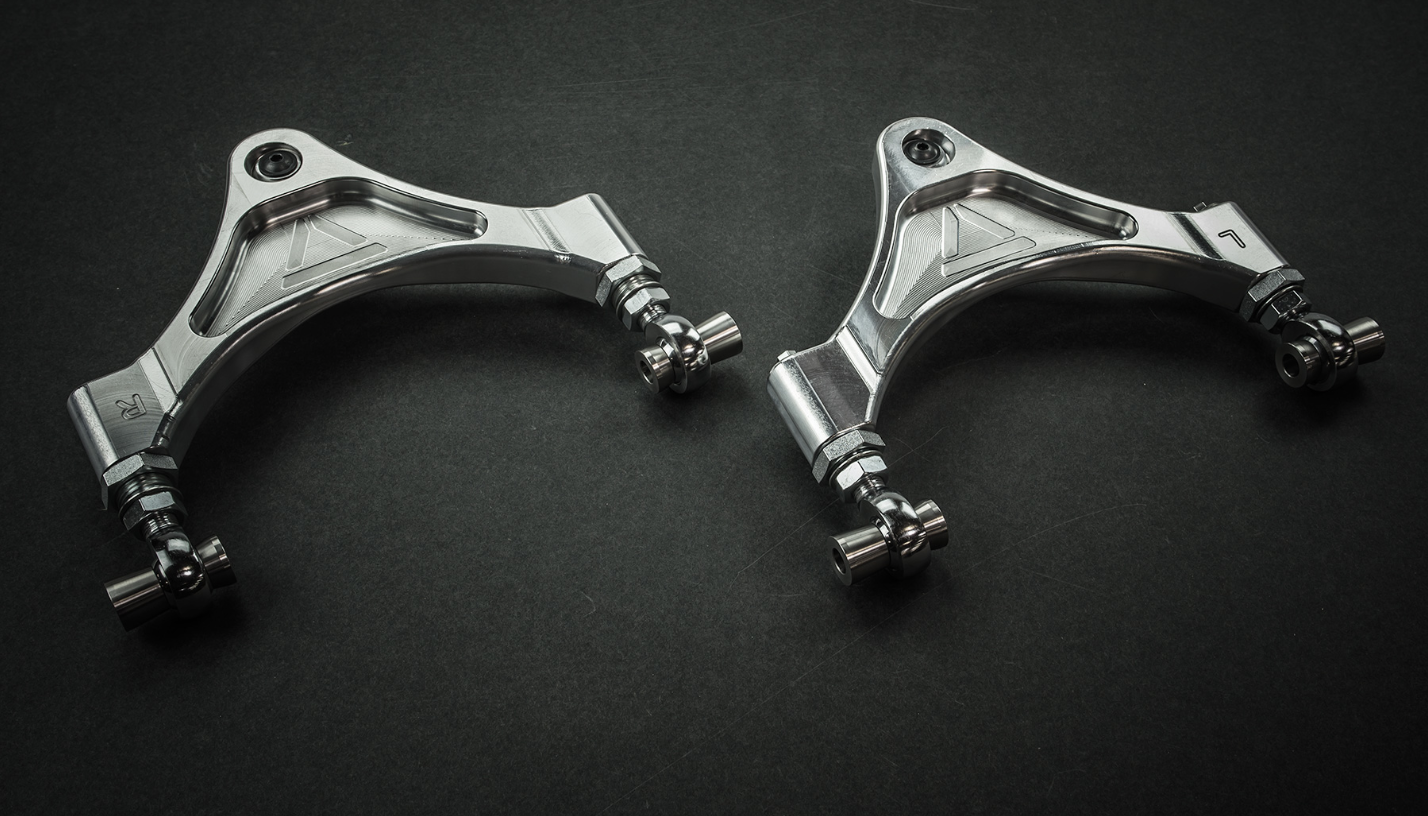

Voodoo13’s front upper control arms fitted for the 2009-2016 Nissan GTR R35 are made from CNC milled aerospace grade 6061 aluminum, featuring both dual adjustment functionality and an innovative design. The slim upper spindle mount helps prevent upper control arm slap from excessively lowered cars, while utilizing an encased spherical bearing design that works to prevent deformation from impact or high driving forces over time. The easy-to-reach dual adjusters allow for caster and camber correction, all while never being unbolted from the car, to suite any application. You can check out all of our Voodoo13 suspension products here.
Adjustment Range: -1.6° to +2.3° relative to stock arm and depending on ride height. +/- 2° of caster adjustment is available separate from camber. Our 2009 GTR test vehicle equipped with lowering springs had -2.9° camber. During testing we achieved a maximum setting of -4.5° and -.3°.
Features:
- Offset spacers allow extra caster adjustment
- CNC Machined Aerospace Grade Aluminum
- Slim profile for extremely lowered vehicles
- Unique Design for aesthetics and 100% functionality
- Made in the USA QA1 spherical bearings and rod ends
Additional Information:
Weight: 12 lbs
Dimensions: 24 x 11 x 5 in
Color: Raw, Hard OD Green, Hard Clear (grey)
