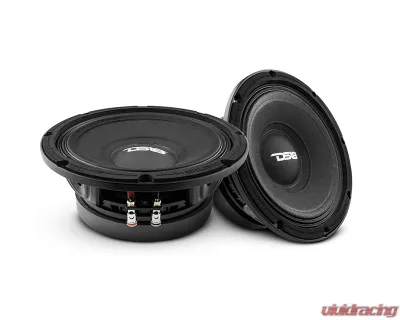

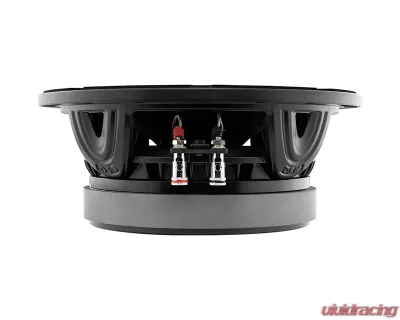

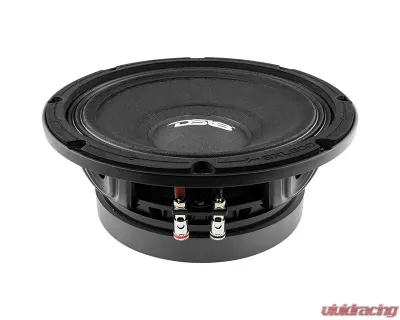

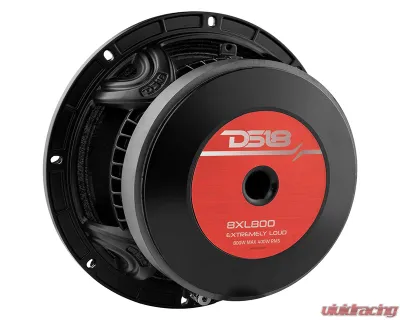

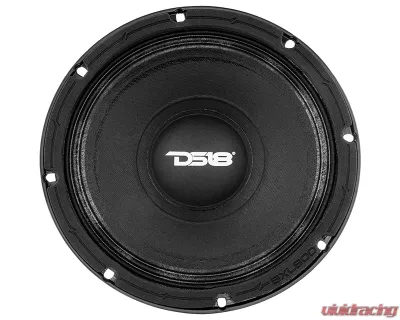

DS18 400 Watts RMS 8-Ohm XL 8" Mid-Bass Loudspeaker - 8XL800-8
DS18 400 Watts RMS 8-Ohm XL 8" Mid-Bass Loudspeaker - 8XL800-8 - Image 6 DS18 400 Watts RMS 8-Ohm XL 8" Mid-Bass Loudspeaker - 8XL800-8 - Image 2 DS18 400 Watts RMS 8-Ohm XL 8" Mid-Bass Loudspeaker - 8XL800-8 - Image 3 DS18 400 Watts RMS 8-Ohm XL 8" Mid-Bass Loudspeaker - 8XL800-8 - Image 4 DS18 400 Watts RMS 8-Ohm XL 8" Mid-Bass Loudspeaker - 8XL800-8 - Image 5 DS18 400 Watts RMS 8-Ohm XL 8" Mid-Bass Loudspeaker - 8XL800-8 - Image 6
DS18's 8XL800-8 is power and precision personified. Designed for an unparalleled sound experience, this speaker is sure to change the way you experience music. DS18's 8XL800-8 stands head and shoulders above the mid-range competition. This 8-inch loudspeaker comes in 4-ohm and 8-ohm impedance ensuring compatibility with a wide range of audio systems, for seamless integration into any setup. With power handling of 400W RMS and 800W MAX these speakers are guaranteed to blow you away. The frequency response of 60Hz-8KHz ensures an extensive range that captures every nuance of your favorite music genres while the sensitivity rating of 99 dB guarantees crystal-clear sound reproduction, even in large venues. Crafted with precision, DS18's 8XL800-8 features a 2" Kapton voice coil and a non-pressed paper cone for enhanced durability and optimal sound reproduction. The satin black aluminum basket not only enhances the speaker's aesthetics but also provides structural integrity. The ferrite magnet weighing in at 56 ounces ensures powerful and accurate bass responses that will leave you amazed. Elevate your audio game with the DS18 8XL800-8!

Features :
  • 8" Mid-Range
  • MAX Power: 800 Watts
  • RMS Power: 400 Watts
  • Impedance: 8-Ohm
  • Ferrite Magnet
  • 99dB
Specifications :
  • Nominal Diameter : 8" / 203mm
  • Nominal Impedance : 8 Ohm
  • RMS Power Handling : 400 watts
  • MAX Power Handling : 800 watts
  • Sensitivity (1w/1m) : 99dB
  • Frequency Response : 60Hz-8KHz
  • Recommended HI Pass Crossover : 90Hz
  • Sold in Pair or Single : Single
  • Grill Included : No
  • Motor
    • Voice Coil Diameter : 2" / 50.8mm
    • Voice Coil Former Material : Kapton
    • Winding Material : CCAW
    • Cone Material : Non-pressed Paper
    • Dust Cap Material : Paper
    • Bullet Material : N/A
    • Bullet Color/Finish : N/A
    • Surround Material : Cloth
    • Basket Material : Aluminum
    • Basket Color/Finish : Satin Black
    • Magnet Material : Ferrite
    • Magnet Weight : 56 Oz
    • Displacement Volume : 0.85L / 0.03ft3
  • Thiele & Small Parameters
    • Equivalent Volume : 14.8L / 0.52ft3
    • Excursion (one way) : 2.3mm
    • Free Air Resonance : 90Hz
    • Mechanical Factor : 5.62
    • Electrical Factor : 0.39
    • Total Factor : 0.36
    • Mechanical Mass : 15.2g
    • Mechanical Compliance : 0.23mm/N
    • BL Factor : 10.7
    • Voice Coil Inductance : 0.05mH
    • Cone Area : 211.24cm²
    • DC Resistance : 5.5 ohm
    • Mechanical Mass w/o air : 17.5
  • Measurement
    • Overall Diameter : 8.2" / 210mm
    • Overall Depth : 3.8" / 96.4mm
    • Front Mount Baffle Cutout : 7.2" / 183mm
    • Mounting Depth : 3.34" / 84.5mm
    • Motor Diameter : 6.14" / 156mm
