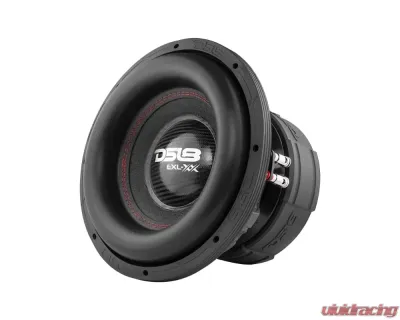

DS18 4000 Watts DVC 2-Ohm High Excursion 12" Subwoofer - EXL-XX12.2DHE

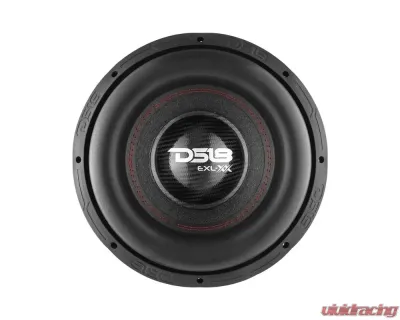

DS18 4000 Watts DVC 2-Ohm High Excursion 12" Subwoofer - EXL-XX12.2DHE - Image 2 DS18 4000 Watts DVC 2-Ohm High Excursion 12" Subwoofer - EXL-XX12.2DHE - Image 2
High excursion is now the standard in all big bass applications and we want to bring the experience of low frequency bass and high power to every user at a great price point. The EXL-XX12.2HE is the answer to that. This subwoofer is a high tier addition that comes in at an amazing price point while getting all those features other much more expensive high excursion subs come with. Also, with a power rating of 2000w RMS and 4000w Max, with the right power this sub will have increased excursion, decibels, and loudness altogether for a real competition bass experience.

Features:
  • High Excursion surround for a very high amount of xmax.
  • Great power handling of 2000w RMS and 4000w Max.
  • Three inch black aluminum voice coil for high power handling and great efficiency.
  • FS of 39 Hz so you can easily dip in the subsonic range with no issues along as your box is tuned accordingly.
Technical Details
  • Nominal Diameter: 12
  • Nominal Impedance: 2 + 2 Ohms
  • RMS Power Handling: 2000W
  • MAX Power Handling: 4000W
  • Sensitivity (1w/1m): 87 dB
  • Frequency Response: 20Hz - 1.3KHz
  • Recommended Lo Pass Crossover: 80 Hz
  • VC Diameter: 3"/ 75.6mm
  • VC Former Material: Black Aluminum
  • Winding Material: CCAW
  • Cone Material: Paper
  • Dust Cap Material: Glass Fiber
  • Surround Material: Foam
  • Basket Material: Aluminum
  • Basket Color/Finish: Black
  • Magnet Material: Ferrite
  • Magnet Weight: 306 Oz
  • Displacement Volume: 3.26L
  • Equivalent Vol: Vas 21.986L
  • Excursion(one way): Xmax 42 mm
  • Free Air Resonance: Fs 39.8 Hz
  • Mechanical Factor: Qms 5.128
  • Electrical Factor: Qes 0.529
  • Total Factor: Qts 0.468
  • Moving Mass: Mms 302.158 g
  • Compliance: Cms 0.025 mm/N
  • Bl Factor: BL 16.523
  • VC Inductance: Le 6.9 mH
  • Diaphragm Area: Sd 433.74 cm²
  • Dc Resistance: Re 2 + 2 Ohms
  • Efficiency Bandwidth Product: EBP 75.2
  • Overall Diameter: 12.6" / 321mm
  • Overall Depth: 9.25" /235mm
  • Front Mount Baffle Cutout: 11.1" / 282mm
  • Mounting Depth: 7.87" / 200mm
  • Motor Diameter: 8.89" / 226mm
Install Instructions:

Other Part Numbers:
DS18 #EXL-XX12.2DHE-FXVX
