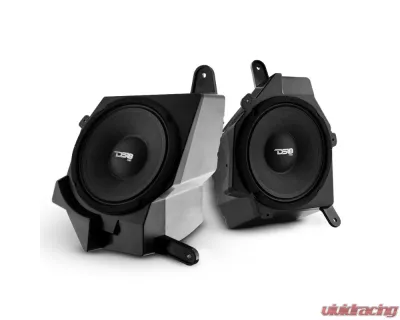

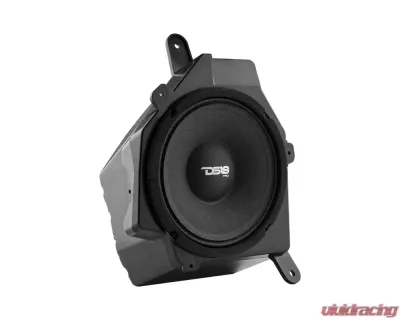

DS18 Dash Enclosure Upgrade with 6" Neo Mid-Range Speaker - JP6
DS18 Dash Enclosure Upgrade with 6" Neo Mid-Range Speaker - JP6 - Image 3 DS18 Dash Enclosure Upgrade with 6" Neo Mid-Range Speaker - JP6 - Image 2 DS18 Dash Enclosure Upgrade with 6" Neo Mid-Range Speaker - JP6 - Image 3

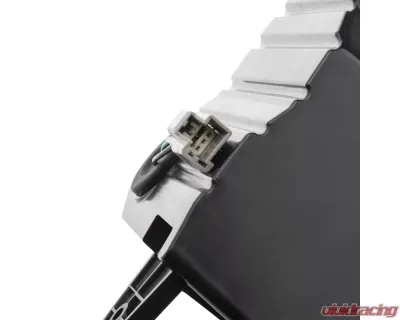

DS18 is proud to offer the only plug and play front speaker kit for the Jeep JL, JLU, and JT. This easy to install ensure comes with everything you need preassembled to get amazing sound out of your front stage with high powered DS18 Neodymium pro audio speakers! These 6.5 Neos are rated at 150w RMS and 300w peak power so you will get much more sound and clarity in just a few minutes of installation time. These plug right into your existing wiring harness and connections and can be powered easily by your factory amplifier. Alternatively, you can add an external amplifier for even more power and loudness!

Features:
  • True plug and play ensure only requiring some simple hand tools to install in less than 30 minutes for both.
  • DS18 Neodymium Pro audio 6.5 speakers included rated at 150w RMS and 150w Peak power for the loudest sound and highest wattage to decibel efficiency.
  • Especially designed for Jeep JL, JLU, and JT plug and play installation.
  • The units use the factory amplifier but alternatively can be powered for even more volume with an external amplifier.
Technical Details
  • Nominal Diameter: 6.5"
  • Nominal Impedance: 4 Ohms
  • RMS Power Handling: 150 Watts
  • MAX Power Handling: 300 Watts
  • Sensitivity (1w/1m): 96 dB
  • Frequency Response: 100Hz - 10KHz
  • Recommended HI Pass Crossover: 120Hz
  • Voice Coil Diameter: 1.5"
  • Voice Coil Former Material: Kapton
  • Winding Material: CCAW
  • Cone Material: Paper
  • Surround Material: Cloth
  • Basket Material: Steel
  • Magnet Material: Neodymium
  • Magnet Weight: 3 Oz
  • Equivilant Volume: Vas 4.463 Ltr
  • Excursion (one way): Xmax 1.5 mm
  • Free Air Resonance: Fs 138 Hz
  • Mechanical Factor: Qms 4.249
  • Electrical Factor: Qes 0.977
  • Total Factor: Qts 0.794
  • Mechanical Mass: Mms 7.166 gr
  • Mechanical Compliance: Cms 148.927 u/M/N
  • BL Factor: BL 4.767
  • Voice Coil Inductance: Le 0.08696mH
  • Cone Area: Sd 145 cm²
  • DC Resistance: Re 3.2 Ohms
  • Mechanical Mass w/o air: Mmd 6.159g
Install Instructions:

Other Part Numbers:
DS18 #JP6-FXVX
