Revving into the year 2022, the automotive world was abuzz with anticipation for the arrival of the new Nissan Z. And oh boy, did Nissan deliver! The Z34, equipped with a roaring 3.0L VR30DDTT Twin Turbo V6 and a thrilling 6-speed FS6R31 manual transmission, finally met the cravings of drivers left yearning for more in its predecessors, the Z34 and R35.
Enter Tomei, the legendary powerhouse in automotive tuning since its inception in 1968. Tomei’s legacy in motorsport and commitment to excellence has birthed the Expreme Ti Full Titanium Muffler Kits. Crafted with top-tier materials and engineered for supreme performance, these mufflers are the dream upgrade for enthusiasts seeking to unleash the true potential of this iconic sports car.
View Complete Tomei Catalog Here

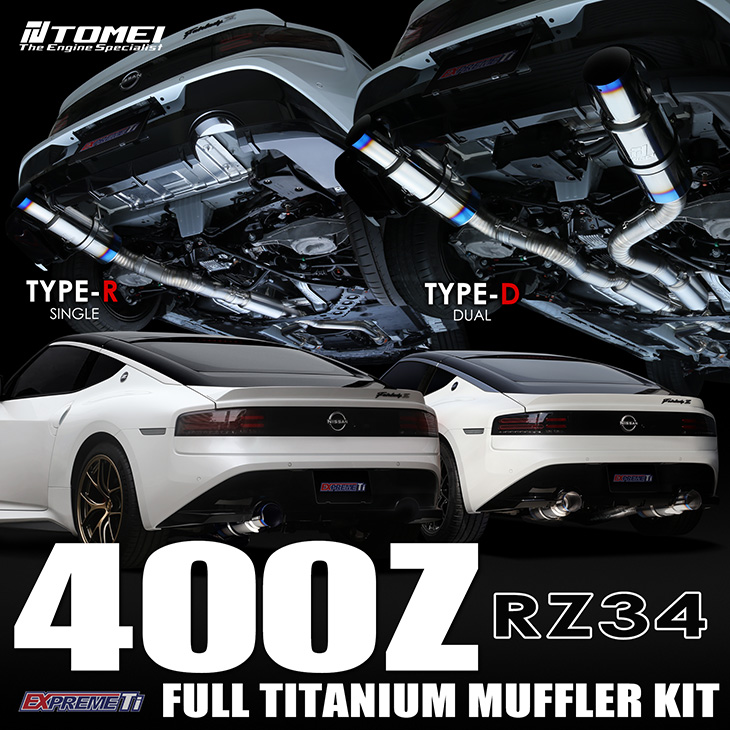

For the Nissan Z enthusiasts craving the lightest exhaust system imaginable, Tomei introduces not one, but two, Expreme Ti exhaust systems! The Type-R single muffler kit and the Type-D dual muffler kit promise to take your Z’s performance and sound to the next level.
The Expreme Ti Full Titanium Mufflers for the Nissan Z are lightweight, strong, and highly durable. Tomei sources its own raw materials, which allows them to significantly improve quality while also keeping prices low. Using titanium maximizes weight reduction and durability while simultaneously providing that tantalizing racing note.
- SILENCER CASE
- This part is made from Titanium with the pipe size of Φ152 and 1mm thickness.
- The oversized shell design optimizes exhaust gas flow which helps with power gains.
- Then with the embossed Tomei logo and beautiful heat gradation colouring gives it the finishing touch that you’d expect.
- PUNCHED MESH
- Made entirely from Titanium of 1mm wall thickness and with the open slot ratio of 32.6%. With the combination of light weight Titanium material, the high flow design delivers a really nice racing exhaust sound.
- GLASS WOOL
- The long fiber wool threads were adopted for the silencer.
- This type has proven to last longer than the traditional fiberglass materials even over a longer period of time with extensive high temperature exposure both at high and low pressures.
- Flange
- Flanges are cut from 8mm thick titanium, making them more
resist to cracking and warping. In addition, the opening
diameter is kept the same as stock to ensure a secure seal.
- Flanges are cut from 8mm thick titanium, making them more

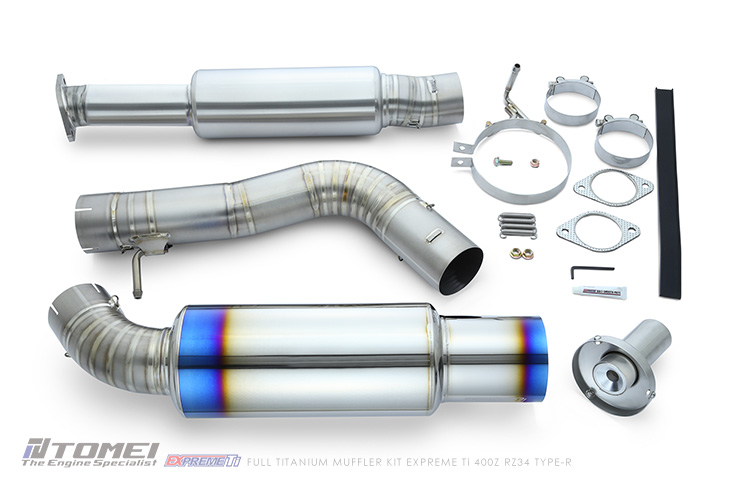

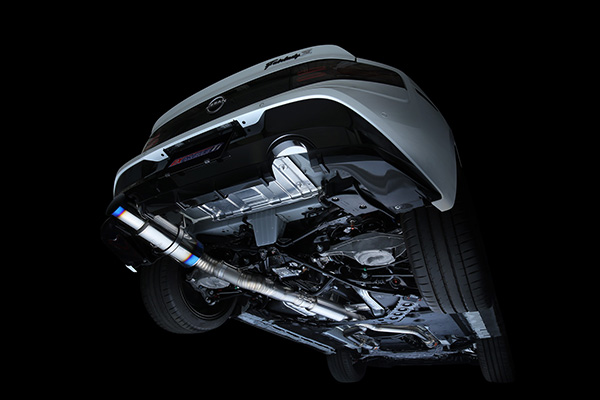

Type-R Single:
This new exhaust utilizes thin (1mm wall thickness) titanium piping with a single exit design. The midsection is connected with springs and clamps instead of flanges. With large 3.5 inch (89.1mm) piping, this exhaust offers significantly more flow than the OEM exhaust, which results in more power.

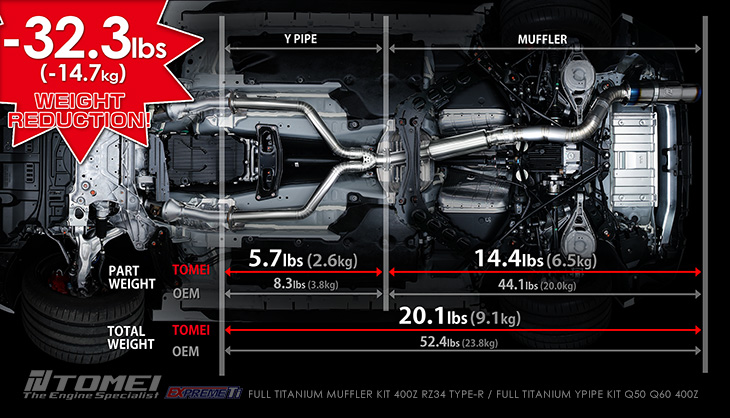

Compared to a Factory Nissan Z exhaust, the Tomei Expreme Ti is 29.7lbs lighter!
*32.3lbs lighter when paired with Tomei Full Titanium Y Shape Mid Pipe!
- 1mm wall thickness
- Titanium construction
- Light, strong, and durable
- Single exit design
- Sounds great!
- More power!
Complete Kit: This kit includes all of the necessary components for a seamless installation, including the bolts and nuts. Bolt Smooth Paste is also included to help prevent the bolts from becoming seized under extreme heat.
Part Number: TB6090-NS21C
Product Name: FULL TITANIUM MUFFLER KIT EXPREME Ti 400Z RZ34 TYPE-R
MSRP: $1,290.00
Specification:
- Material: Titanium
- Main Pipe Diameter: 3.5in
- Main Pipe Thickness: 1mm
- Main Silencer Diameter: 6in
- Main Silencer Thickness: 1mm
- Sub Silencer Diameter: 4.7in
- Sub Silencer Thickness: 1mm
- Exit Diameter: 4.5in
- Exit Thickness: 1mm
Fitment:
-
- 2023+ Nissan Z RZ34 VR30DDTT
Learn More and Purchase the New Tomei Type-R Full Muffler Kit Here.

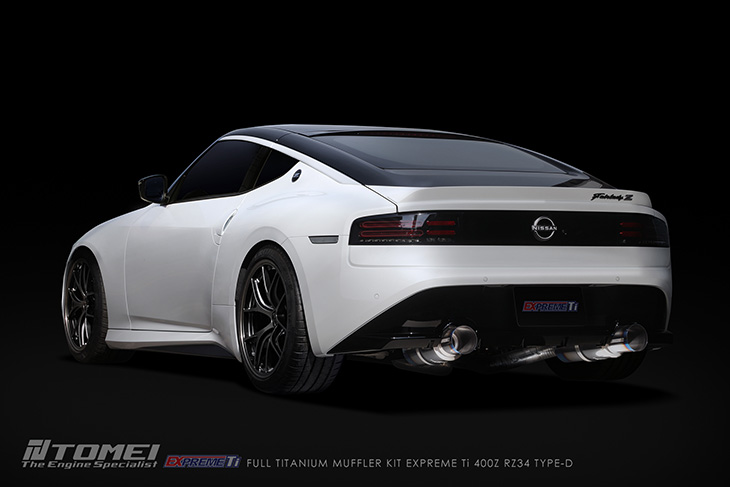

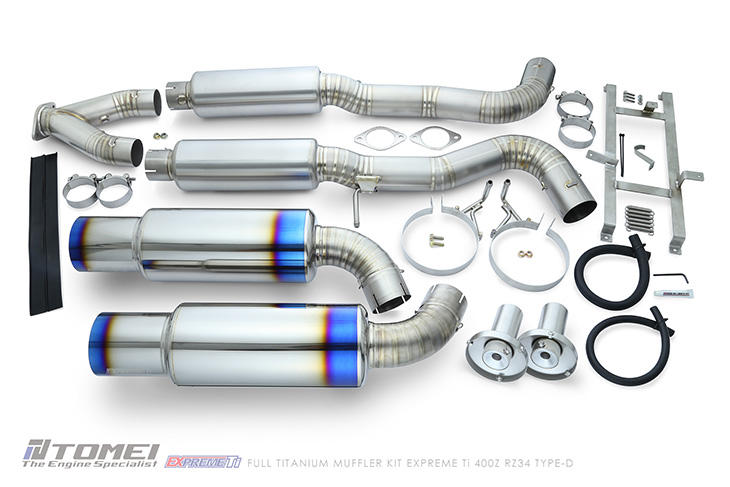

Type-D Duel:
For those who wants to keep the duel exhaust system for your new Z, the Type-D style is what you need! This new exhaust utilizes thin (1mm wall thickness) titanium piping with a duel exit design. The midsection is connected with springs and clamps instead of flanges. With large 80.5mm piping, this exhaust offers significantly more flow than the OEM exhaust, which results in more power.
Compared to a Factory Nissan Z exhaust, the Tomei Expreme Ti is 17.4lbs lighter!
*20.0lbs lighter when paired with Tomei Full Titanium Y Shape Mid Pipe!
- 1mm wall thickness
- Titanium construction
- Light, strong, and durable
- Dual exit design
- Sounds great!
- More power!
Complete Kit: This kit includes all of the necessary components for a seamless installation, including the bolts and nuts. Bolt Smooth Paste is also included to help prevent the bolts from becoming seized under extreme heat.
Part Number: TB6090-NS21D
Product Name: FULL TITANIUM MUFFLER KIT EXPREME Ti 400Z RZ34 TYPE-D
MSRP: $1,990.00
Specification:
- Material: Titanium
- Main Pipe Diameter: 3.2in
- Main Pipe Thickness: 1mm
- Main Silencer Diameter: 6in (x2)
- Main Silencer Thickness: 1mm
- Sub Silencer Diameter: 4.7in (x2)
- Sub Silencer Thickness: 1mm
- Exit Diameter: 4.5in (x2)
- Exit Thickness: 1mm
Fitment:
-
- 2023+ Nissan Z RZ34 VR30DDTT
Learn More and Purchase the New Tomei Type-D Full Muffler Kit Here.

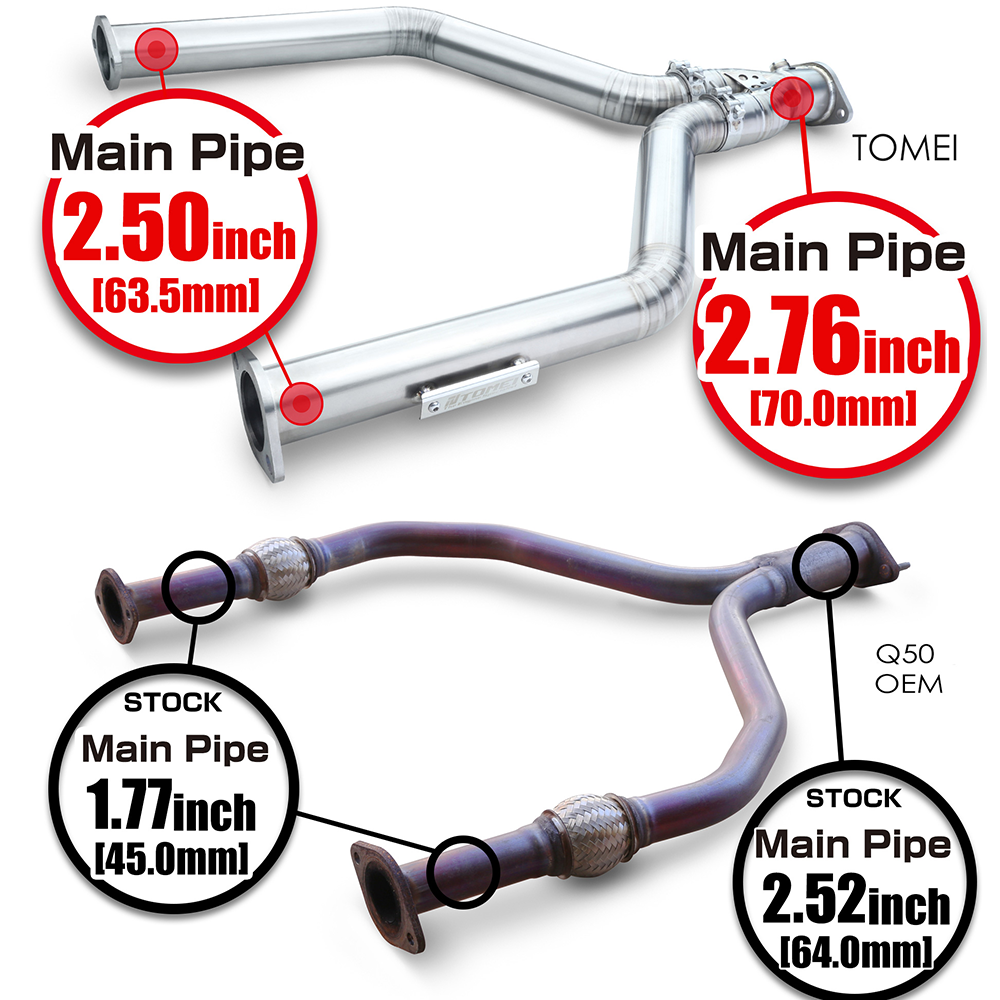

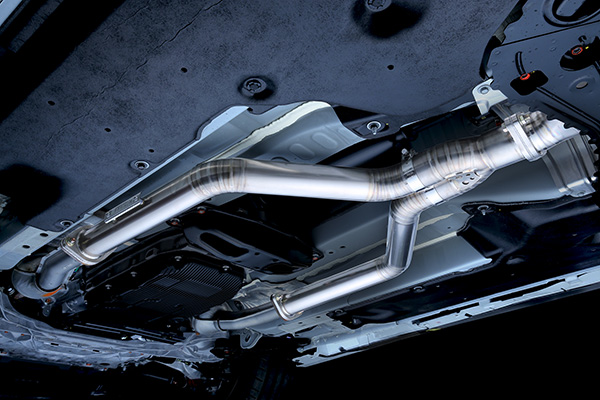

FULL TITANIUM Y SHAPE MID PIPE:
Compared to a Factory Nissan Z Mid Pipe, the Tomei Titanium Y Pipe is 2.7lbs lighter!
Part Number: TB6110-NS21A
Product Name: FULL TITANIUM Y PIPE KIT EXPREME TI Q50/Q60/400Z
MSRP: $890.00
Specification:
- Material: Titanium
- Main Pipe Diameter: 2.5-2.76in
- Main Pipe Wall Thickness: 1mm
- Flange Thickness: 8mm
Fitment:
-
- Nissan VR30DDTT / VQ37VHR 400Z RZ34 / Q50 / Q60
Learn More and Purchase the New Tomei Full Titanium Y Shape Mid Pipe Here.
If you have questions, please contact us. You can reach us by phone at 1-480-966-3040 or via email at sales@vividracing.com.
