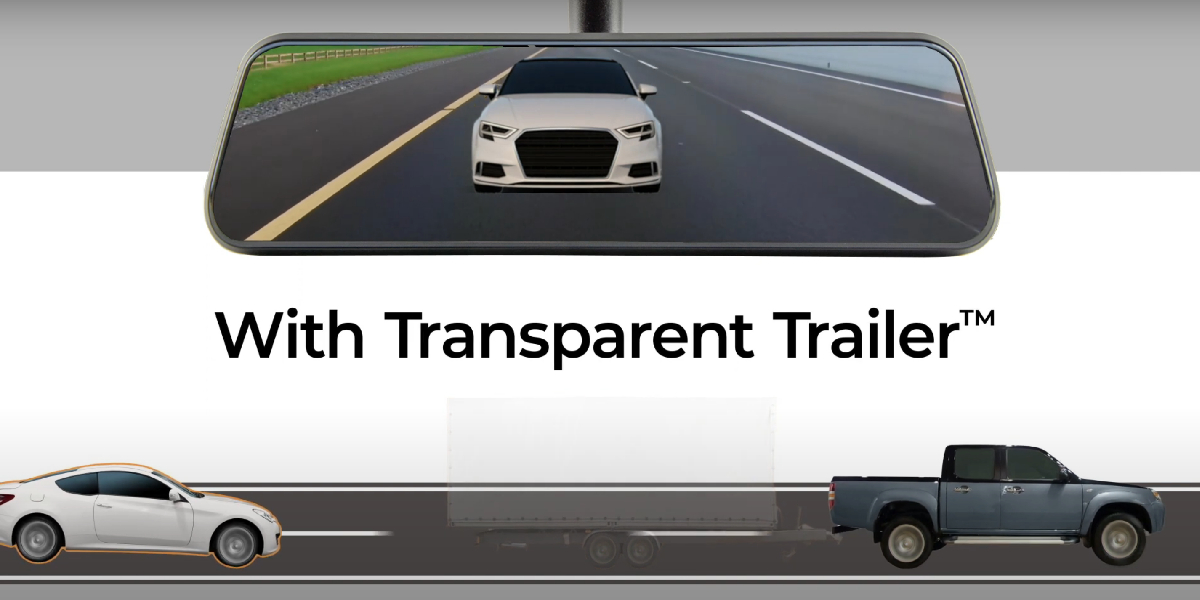

Introducing the Transparent Trailer Rear Vision System from Brandmotion: a rearview camera mirror that takes all the uncertainty out of towing. Brandmotion’s Transparent Trailer Rear Vision System is here to transform your driving experience by letting you see what you’ve never seen before, literally. This new versatile safety system replaces your current rearview mirror with a live streaming full HD video screen for the ultimate convenience. It improves on your traditional mirror by providing a clear and crisp view of exactly what you need to see without any obstructions, in your cabin or with your trailer. The unbeatable view gives drivers the peace of mind they wanted and deserved all along.
View All Brandmotion Products Here
Using this system, you can gain assistance when backing up trailers up to 65-feet long. A single camera is installed at the end of the trailer, with a harness running the length to the trailer hitch, using quick disconnect weatherproof connectors that integrate into the body. This clean OEM look allows for the trailer to be easily detached. When fully installed, the image from the rear camera cleanly displays on the newly installed edge-to-edge mirror in the cab with virtually no latency thanks to high-quality cabling.

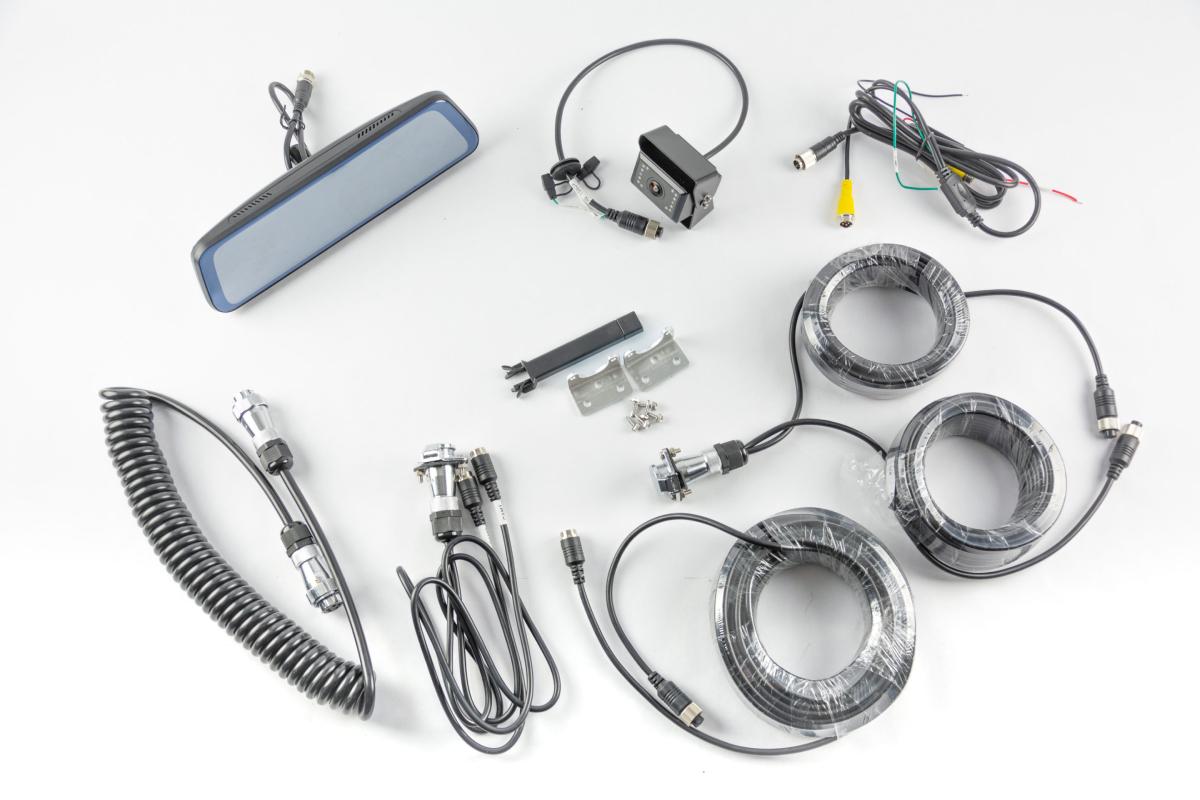

This Universal Transparent Trailer Rear Vision System from Brandmotion comes with a single camera, quick disconnect truck-to-trailer harness, a 10m truck harness, a 20m trailer harness, and a 9.66″ edge-to-edge display mirror as a complete rear vision solution. This kit is designed to be compatible with a wide array of vehicles utilizing a D-Tab Wedge mount. Some vehicles may require an adaptor. Please verify product fits in the desired location before final installation. Please see our Rear Vision Application Guide for compatibility questions.
Key Features:
- Integrates Into Your Truck And Trailer
- Clever Design Allows For Multiple Uses
- Heavy-Duty Design For Increased Durability

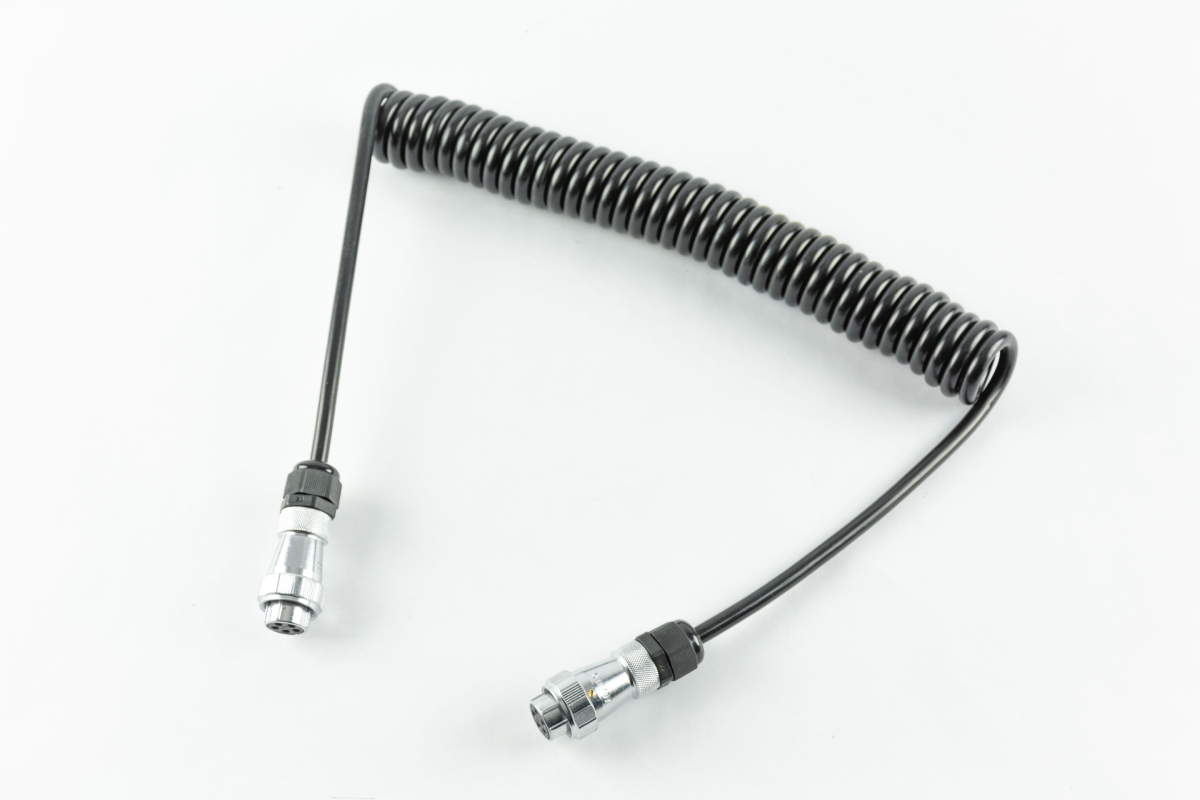

- Ultra High-Quality Truck-To-Trailer Quick Disconnect Wiring

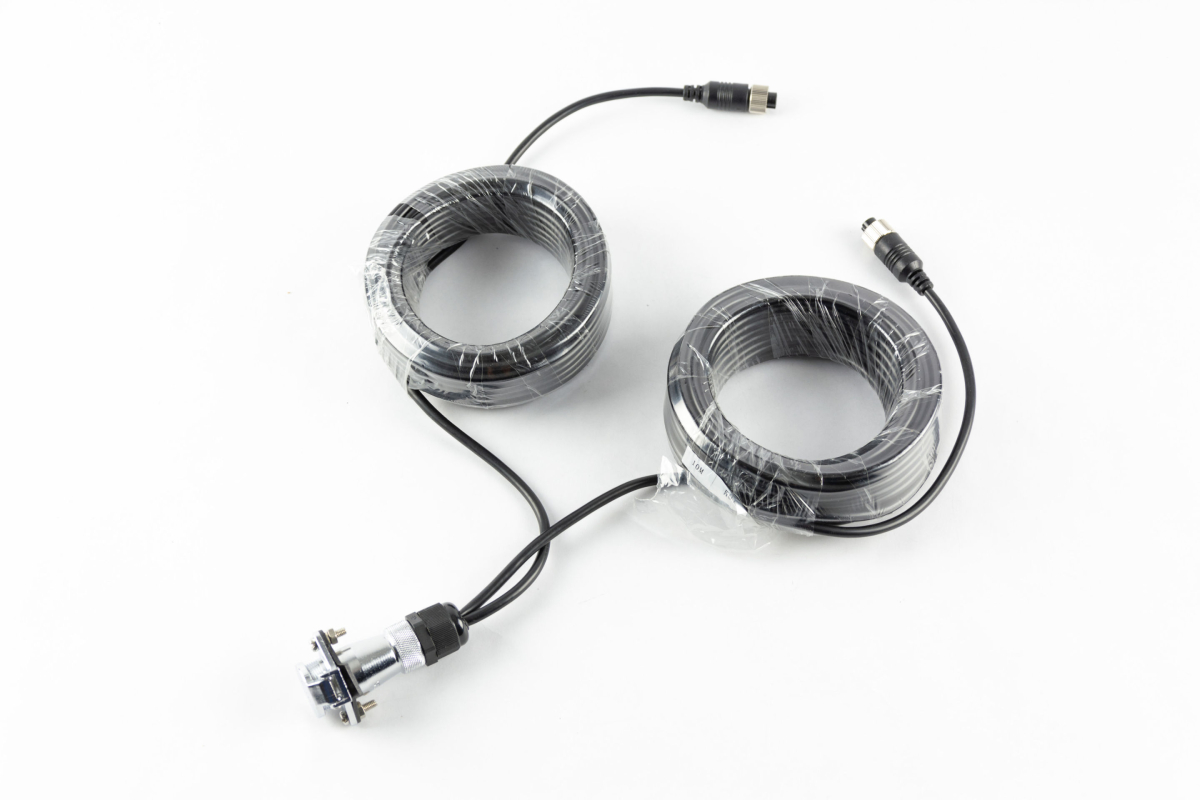

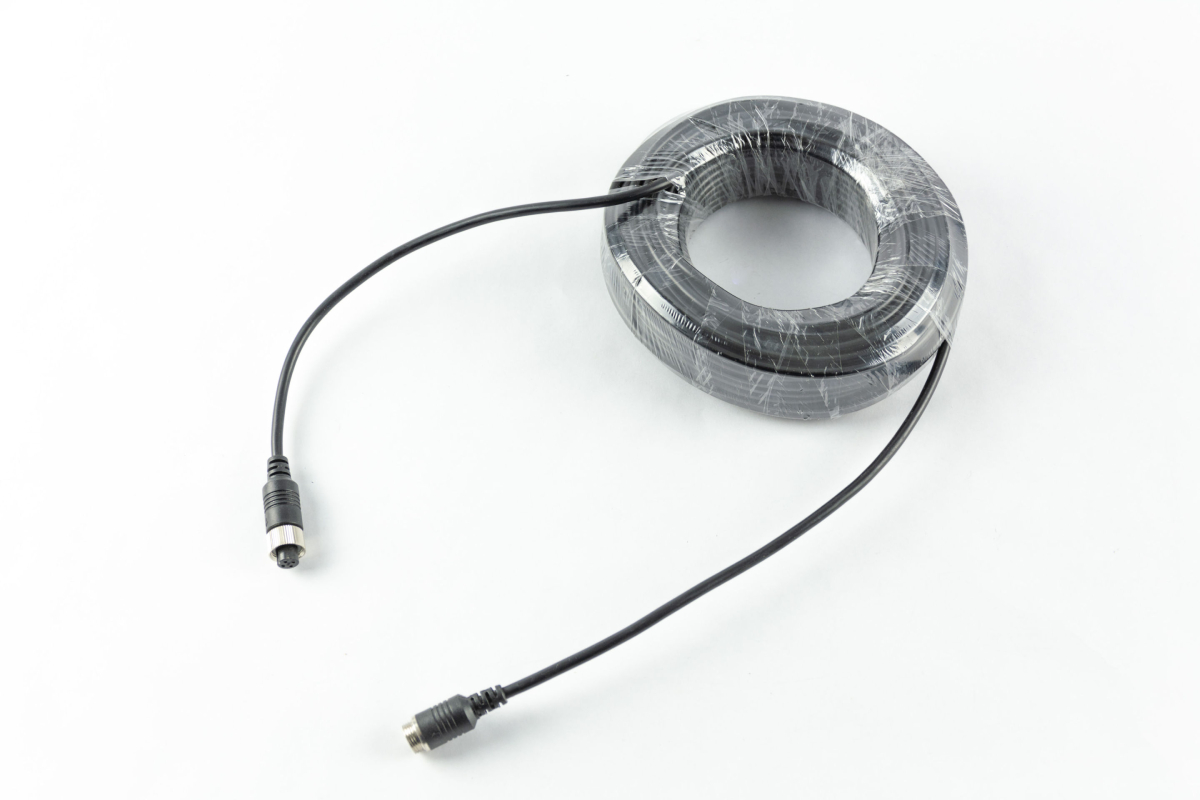

- Includes 10m Vehicle Side Harness and 20m Trailer Side Harness

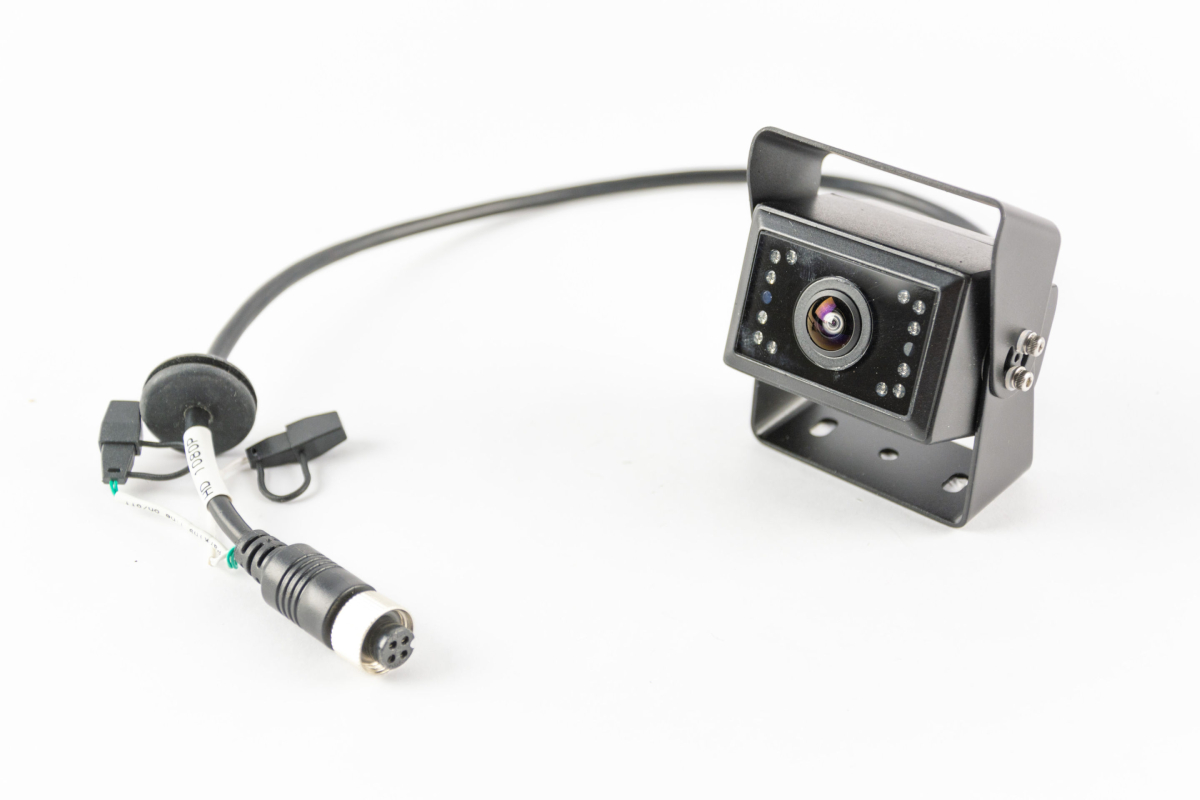

Camera Specifications:
- Industrial Grade CMOS Camera
- Camera Dimensions: 2.5″ Wide x 2.2″ Deep x 2.3″ Tall (Bracket Adds 1.5″ Height)
- Included Harnessing
- 1920 x 1080 Resolution 1080p
- 0.1 Lux With Infrared For Better Illumination And A Sharper Image
- Parking Gridlines Available
- Format: NTSC
- 9-16V Operating Voltage Range
- Color Image With Automatic White Balance
- Electric Auto Iris
- 170º Horizontal Field of View
- 130º Vertical Field of View
- Waterproof and Shockproof Case
- IP 68 Equivalent
Mirror Specifications:

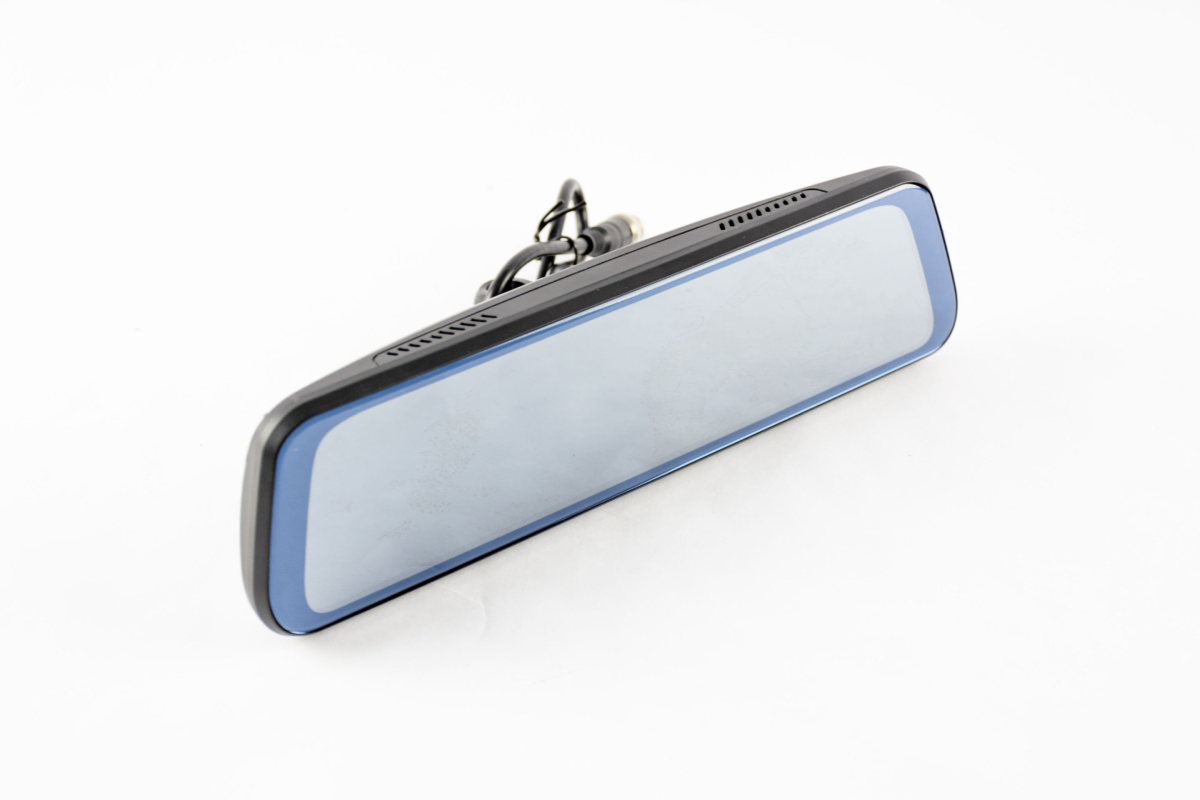

- Large, Vibrant 9.66″ Full-Color Display
- 1980 x 320 Resolution 1080p
- 9.66″ Mirror With Edge To Edge Display Embedded
- 2 Inputs (4 Pin Aviation)
- 16:9 Aspect Ratio
- Format: NTSC and PAL
- 12-24V Operating Voltage Range
- No Remote
- Not OnStar Compatible
- 2 Inputs Selectable Via Bottom Button
- Mirror Functionality By Holding Bottom Button
- No Parking Gridline Overlay (May Be Supplied By Camera)
Notes:
- Professional installation is recommended. (See Instructions Here)
- This mirror is a non-dimming display mirror.
- If you are requiring a microphone that your OEM mirror contained, please see 5000-PESMVR.
- If you are looking for a transparent trailer system to use a different camera, please see TRNS-2100.
- Note: If you are looking to add an additional camera, please see AHDS-7701.
If you have any questions, please do not hesitate to contact us. You can reach us by phone at 1-480-966-3040 or via email at sales@vividracing.com.
