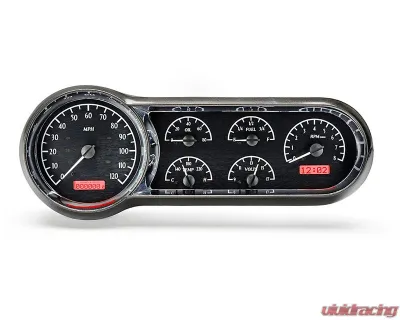

If you’re looking to breathe some life into your classic 1953-54 Chevy, this all-new instrument system is a game changer. It slots right into the stock or reproduction gauge bezel, but fair warning: you’ll need to do a little trimming on the steel dash to make room for that larger instrument cluster. It’s a small price to pay for a serious upgrade.

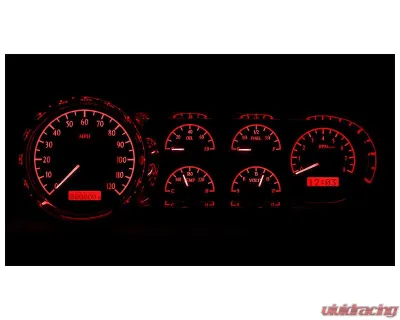

What sets the MHX Series apart? For starters, those fully lit needles and backlit faces make it easy to read your gauges at a glance, even in bright sunlight. Plus, the LCD message centers are a breath of fresh air compared to the old-school setups. You’ve got micro-controlled precision stepper motors and solid-state sensors under the hood, which means you’re getting top-notch accuracy. And if you’re worried about longevity, Dakota Digital backs this with a limited lifetime warranty, which is pretty much the gold standard in the industry.

Everything is engineered and built right in Sioux Falls, South Dakota, so you know you’re getting quality craftsmanship. Just a heads up, though: the bezel isn’t included, so you’ll need to grab an OEM or reproduction style bezel separately.

Specifications

Analog Gauges

• Speedometer: Reads from 0 to 120 MPH (there's a metric version that goes up to 195 km/h if you need it).
• Tachometer: Covers 0-8,000 RPM, perfect for keeping tabs on your engine’s performance.
• Oil Pressure: Monitors from 0-80 psi, giving you peace of mind.
• Water Temperature: Ranges from 100-260°F (or 40-120°C if you prefer metric).
• Fuel Level: Shows E, 1/4, 1/2, 3/4, and F—no more guessing how much gas you have left!
• Voltmeter: Reads from 9-17 VDC, so you can keep an eye on your electrical system.
• Lighting: Each gauge is lit by a series of LEDs, ensuring you can see everything that matters, even in low light.

Digital Message Centers

• Standard Displays:
  • Odometer (settable, up to a million miles)
  • Dual trip meter (0-9,999.9)
  • 12-hour clock
• Performance Meters:
  • 0-60 MPH timer
  • 1/4 mile time and end speed
  • High-speed and high RPM recall
• Gauges:
  • Speedometer (0-255 MPH/km/h)
  • Tachometer (0-9,900 RPM)
  • Oil Pressure (0-100 psi in 1 psi increments)
  • Water Temperature (100-300°F/40-150°C in 1°F/C increments)
  • Voltmeter (9-17 VDC)
  • Fuel Level (0-99% full)
• Lighting:
  • Auto-contrasting LCD for bright sunlight visibility.
  • LED backlit for nighttime use—looks sharp!

Built-in Indicators

• Turn signals, high beam, check engine, parking brake, cruise control, and more—all the essentials are covered.
• Keep in mind, not all OEM indicator functions will be replicated, but you can repurpose unused indicators for your needs.

Included Sensors

• Water Temperature: Comes with a 1/8" NPT sensor and a 10 ft harness.
• Oil Pressure: Also a 1/8" NPT solid-state sensor with a 10 ft harness.
• Speed Sensor: Replaces Ford and GM style speedometer cables, needing about 5" clearance.
• Bushings: Includes a variety of bushings for different sizes and threads.
• Control Box Dimensions: 5.5" x 3.5" x 1"—compact and easy to fit in.

Calibration

• The system is super user-friendly, programmed with just a push of a button. Mount the included buttons in a spot that’s easy to reach, and you’re good to go. They help calibrate everything from the speedometer to the fuel gauge, plus they give you access to all the info in those digital message centers.

Fitment

• Chevrolet Del Ray 1954
• Chevrolet One-Fifty Series 1953-1954
• Chevrolet Two-Ten Series 1953-1954

This MHX-53C-K-R Dakota Digital Black Alloy MHX System is a must-have for anyone serious about their Chevy. It’s not just an upgrade; it’s a transformation.
