Dakota Digital MFD System w/ New Dash Bezel Metric Custom Build - MFD3-67C-NOV-NT
Dakota Digital Series III instrument systems offer the latest technologies and features for your custom vehicle. High brightness vacuum fluorescent displays provide a lifetime of trouble free use while offering increased accuracy and features!

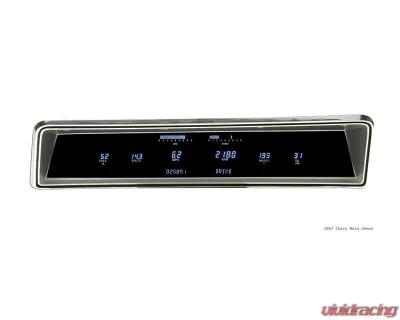

Full 6 Gauge Instrument System 1966- 67 Chevy Nova.

VFD3-66C-NOV-N - Shown Above

System now includes new reproduction dash carrier/bezel.


Specifications:
Digital Gauges
  • Speedometer
    • 0 -255 MPH (optional metric version 0- 255 km/h)
  • Tachometer
    • 0- 17,500 RPM
  • Oil Pressure
    • 0- 99 psi
  • Water Temperature
    • 0- 300F (optional metric version 0- 150C)
  • Fuel Level
    • 0- 99%
  • Voltmeter
    • 8- 17 VDC
  • Standard Colors
    • Blue or Teal
Digital Message Centers
  • Standard Displays
    • Odometer (One-time user settable, Million Mile)
    • Dual (A/B) Trip Meter (0- 9,999.9)
  • Performance Meters
    • 0- 60 MPH Timer (0- 100 kmh)
    • 1/4 mile time
    • 1/4 mile end speed (trap speed)
    • High-speed recall
    • High RPM recall
  • Gauges
    • Speedometer (0- 255 MPH/km/h) on the opposite scale of the main speedometer.
Built-in Indicators
  • Indicators
    • Turn Signals (Left/ Right)
    • High Beam
    • Check Engine
    • Parking Brake
    • Cruise Control (On/ On & Engaged when a vehicle is equipped)
    • Gear Position (Optional GSS-3000 sensor required)
    • 4 x 4 (When a vehicle is equipped)
    • Wait to Start (When a vehicle is equipped)
  • **Not all OEM indicator lamp functions will be replaced.
    • If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your application.
Included Sensors
  • Water Temperature
    • 1/8" NPT, the ground isolated sensor with a 10 ft harness.
  • Oil Pressure
    • 1/8" NPT solid state sensor with a 10 ft harness.
  • Cable Driven Speed Sensor/ Generator
    • Replaces Ford and/ or GM style speedometer cables with a 10 ft harness. The sensor requires approximately 5" clearance between the cable drive output and any obstruction. Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required. (Tremec and Ford style adaptors available on request.)
  • Bushings
    • Each kit comes with 1/8" to 1/4", 3/8", and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.
  • Control Box Dimensions
    • 5.5" x 3.5"x 1"
Calibration
  • Push button
    • Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included push buttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer and set the cylinder count and the fuel level gauge. Once properly configured, these same buttons are used to access the wealth of information located in the Digital Message Centers.

Other Part Numbers:
Dakota Digital #DAK-MFD367CNOV

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Dakota Digital: Pioneers in Automotive Instrumentation

Established in 1986, Dakota Digital has been at the forefront of the automotive aftermarket, specializing in high-quality digital instrumentation and accessories. With a commitment to innovation and excellence, Dakota Digital has carved a niche for itself, becoming a trusted name among car enthusiasts and professionals alike.

History of Dakota Digital

From its humble beginnings, Dakota Digital emerged as a leader in the automotive industry by combining advanced technology with classic design. Their passion for performance and precision has driven them to continuously improve and expand their product offerings. Over the years, Dakota Digital has developed a reputation for creating some of the most reliable and stylish gauges available, catering to a wide range of vehicles from classic cars to modern muscle.

Categories of Parts Offered by Dakota Digital

Dakota Digital is best known for its extensive range of digital instrument clusters, including speedometers, tachometers, and fuel gauges. Their products are designed to enhance not only the aesthetic appeal of a vehicle’s dashboard but also its functionality. In addition to instrument clusters, Dakota Digital offers a variety of accessories such as wiring harnesses, control modules, and mounting solutions, ensuring that every installation is seamless and efficient.

Why Dakota Digital Stands Out

What sets Dakota Digital apart from the competition is their unwavering commitment to quality and customer satisfaction. Each product undergoes rigorous testing to ensure durability and accuracy, making them a reliable choice for automotive enthusiasts. Furthermore, Dakota Digital’s innovative designs incorporate advanced technology, such as Bluetooth connectivity, allowing users to monitor their vehicle’s performance in real-time through mobile applications. This blend of style, functionality, and cutting-edge technology makes Dakota Digital the ultimate choice for those looking to upgrade their vehicle's instrumentation.

In conclusion, if you're in the market for premium automotive parts, Dakota Digital should be your go-to brand. Explore their impressive lineup at Vivid Racing and experience the difference that quality and innovation can make in your vehicle.
