DS18 4-Channel In | 8-Channel Out Digital Sound Processor with Bluetooth | Water Resistant - DSP4.8BTM
DS18 4-Channel In | 8-Channel Out Digital Sound Processor with Bluetooth | Water Resistant - DSP4.8BTM - Image 4 DS18 4-Channel In | 8-Channel Out Digital Sound Processor with Bluetooth | Water Resistant - DSP4.8BTM - Image 2 DS18 4-Channel In | 8-Channel Out Digital Sound Processor with Bluetooth | Water Resistant - DSP4.8BTM - Image 3 DS18 4-Channel In | 8-Channel Out Digital Sound Processor with Bluetooth | Water Resistant - DSP4.8BTM - Image 4
At DS18, our team of engineers is always working to give users unrestrained control over the unmatched power our products deliver. The DSP4.8BTM, our newest digital sound processor, gives users access to every bit of power in your vehicle's audio system, allowing you to gain the control needed to handle and achieve the quality of sound you desire.

Creating a flawless audio system has never been easier. The DSP4.8BTM gives users access to a list of filtrations settings directly from our BT Interface. This interface also gives users option to save presets for certain songs or genres allowing for the perfect listening experience one hundred percent of the time. The DSP4.8BTM gives you access to a great number of tuning options that can be adjusted using the DSP4.8BTM Application on the App Store or Google Play.

Features:
  • Bluetooth connectivity to allow for easy and accessible audio tuning
  • Easy to use software found on Google Play or the App Store to fine tune and monitor every aspect of your signal processing.
  • 4 Channel RCA and/or HI-level speaker inputs
  • 8 Channel RCA outputs
  • Parametric equalizer with 8 independent band per channel
  • Crossover with filters: Butterworth, Linkwitz-Riley and Bessel.
  • Great for: Car Audio, Pro Audio, Motor Cycles, Home Studio, Stunt Walls, and DIY Projects
Technical Details:

Routing Channel
  • Routing Options: A / B / C / D / A+B / A+C / B+C
  • GAIN: GAIN / GANANCIA
  • General Gain: -53 to 0dB
  • Channel Gain: -33 to +9dB
Frequency Cuts (Crossover)
  • Cut-off Frequency: 20Hz to 20 KHz
  • Types of Cuts: Linkwitz-Riley / Butter worth / Bessel
  • Attenuations: 6 / 12 / 18 / 24 / 36 / 48dB/OCT
Input Equalizer (EQ IN)
  • Equalization Bands: 15 Bands
  • Gain: -12 to +12dB
Channel Equalizer (EQ Channel)
  • Equalization Bands: 8 Parametric per Channel
  • Gain: -12 to +12dB
  • Q Factor: 0.6 to 9.9
Time Allignment (DELAY)
  • Time: 0 to 18,95ms
  • Distance: 0 to 6500mm
Limiter
  • Threshold: -54 to +6dB
  • Attack: 1 to 200ms
  • Release: 1 to 988ms
Polarity Inversion (PHASE)
  • Phase: 0 or 180
Memories (PRESETS)
  • Memories: 3-100% Configurable

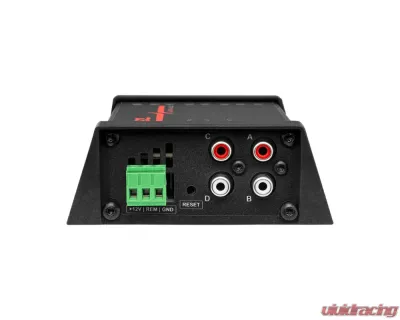

Input A/B/C/D
  • Input Channels: 4
  • Type: Electronically Symmetrical
  • Connectors: RCA
  • Max Input Level: 4,00Vrms (+14dBu)
  • Input Impedance: 100K?
Output

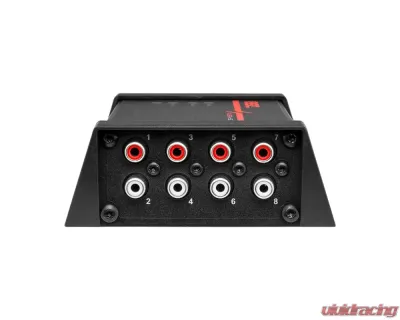

  • Output Channels: 8
  • Connectors: RCA
  • Type: Electronically Symmetrical
  • Max Input Level: 3,50Vrms (+13dBu)
  • Output Impedance: 100?
DSP
  • Frequency Response: 10Hz to 24 KHz (-1dB)
  • THD+N: <0.01 %
  • Signal Latency: <0.6ms
  • Bit Rate: 32Bits
  • Sampling Frequency: 96 KHz
Power Supply
  • Voltage DC: 10-15VDC
  • Maximum Consumption: 300mA
Dimension
  • Height x Length x Depth: 1.6" x 5.6" x 4.25" / 41mm x 142mm x 108mm
  • Weight: 277g / 9.7Oz
Install Instructions:

Other Part Numbers:
DS18 #DSP4.8BTM-FXVX
