Nuke Performance Pyrotect Elite Fuel Cell 150-06-062

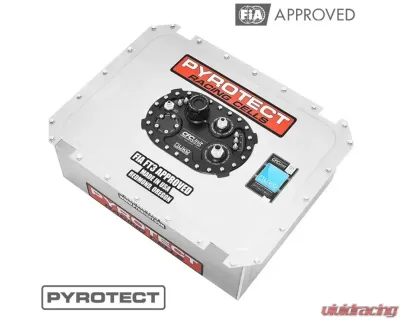

The Nuke Performance Pyrotect Elite Fuel Cell (Part #: 150-06-062) is engineered for serious motorsports applications, offering a robust solution for fuel management. This 6.25-gallon fuel cell is FIA/FT3 approved, making it suitable for a variety of racing disciplines. Its lightweight construction and advanced materials ensure that it meets the demanding standards of professional racing teams.

Construction and Features

• Material: Constructed from ultra-durable double-coated urethane fabric, this fuel cell is designed to withstand the rigors of motorsport environments.
• Dimensions: With a length of 406mm (16.0"), depth of 308mm (12.12"), and height of 219mm (8.62"), it fits well in various setups.
• Weight: The total weight, including the integrated CFC Unit, is 7650g (16.9lb), making it an efficient choice for weight-sensitive builds.
• Fuel Compatibility: Safe for all fuel types, including gasoline, ethanol, methanol, and E85, allowing for flexibility in fuel choice.
• Internal Foam Baffling: This feature minimizes fuel slosh during aggressive driving, ensuring consistent fuel delivery.

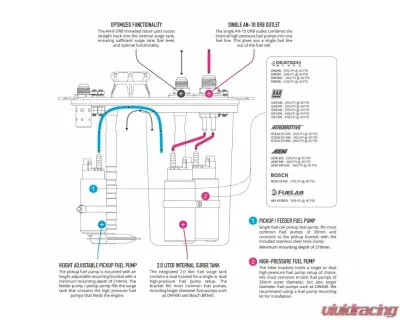

• Integrated Surge Tank: The CFC Unit includes a 2-liter surge tank, eliminating the need for an external surge tank setup.

Installation and Fitment

Designed for ease of installation, the Pyrotect Elite Fuel Cell comes with a dual billet fuel pump bracket that can accommodate either single or dual high-pressure fuel pumps. The mounting bolt pattern is a 6x10" 24-bolt configuration, ensuring a secure fit in your vehicle.

Included Components

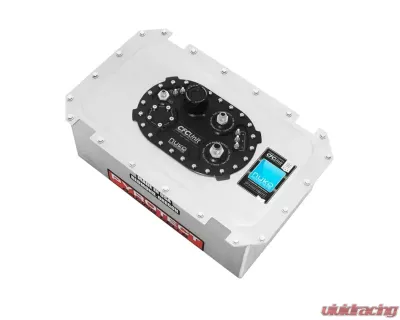

• 1 x Pyrotect Elite fuel cell with aluminum container

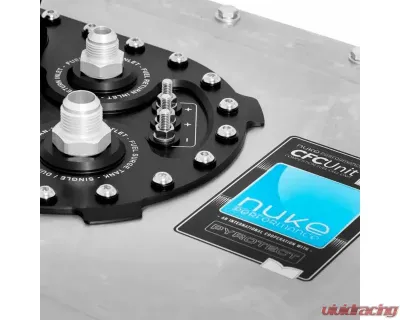

• 1 x Nuke Performance CFC Unit (low-profile version)
• 2 x 1/4" BSPP to Male barb 8mm hose fittings
• 1 x 1/4" BSPP plug (for single high-pressure fuel pump use)
• 2 x 39mm inserts for high-pressure fuel pump bracket
• 1 x Viton gasket for 24 bolt pattern fuel cells
• 1 x Low profile filler cap (remote fill neck available as accessory)
• 1 x Dual billet fuel pump bracket and adjustable pickup pump mount
• 1 x AN-8 (3/4 UNF) to AN-6 Male roll-over vent valve
• 1 x FLS spacer for fuel level senders with non-symmetrical bolt patterns
• 24 x 1/4-28 UNF x 1 bolts with nylon washers

Specifications

• Fuel Capacity: 23.65 liters (6.25 gallons)
• Fuel Level Sender: Compatible with 150-FLS-08 (203 mm/8")

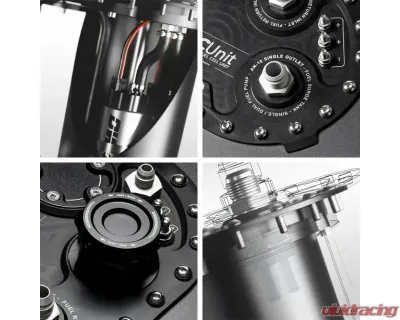

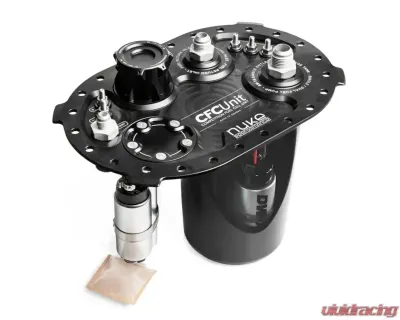

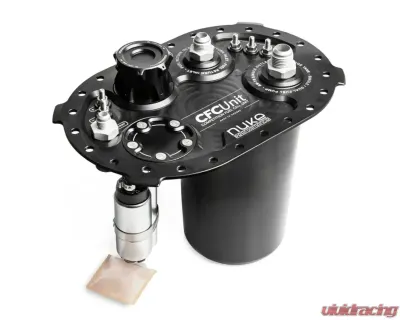

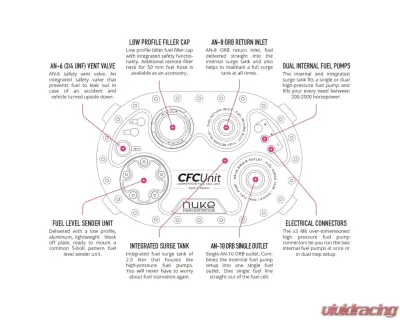

Nuke Performance CFC Unit Specifications

• CFC Unit Part #: 150-05-201
• Minimum Mounting Depth: 219mm (8.62")
• High-Pressure Fuel Pump Connector: 3 connectors (max 125 ampere each)
• Length: 295mm (13.74")
• Width: 194mm (9.88")
• Maximum Pickup Pipe Length: 90mm (3.54") / 95mm (3.74")
• Internal Surge Tank Volume: Approximately 2.0 liters (0.53 gallons)
• Outlet Port Thread: AN-10 ORB
• Return Port Thread: AN-8 ORB

Upgrade your fuel system with the Nuke Performance Pyrotect Elite Fuel Cell, engineered for performance and reliability on the track.
