ACL Mitsubishi 4G93 Standard Size High Performance Main Bearing Set 1992-2003, 2014-2016 - 5M8037H-STD

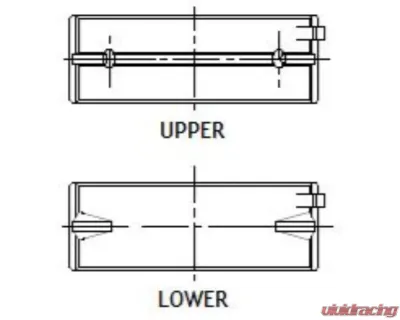

ACL Mitsubishi 4G93 Standard Size High Performance Main Bearing Set 1992-2003, 2014-2016 - 5M8037H-STD - Image 2 ACL Mitsubishi 4G93 Standard Size High Performance Main Bearing Set 1992-2003, 2014-2016 - 5M8037H-STD - Image 2

ACL 5M8037H-STD Main Bearing Set

The ACL 5M8037H-STD is a high-performance main bearing set specifically engineered for the Mitsubishi 4G93 engine, providing the durability and reliability required for demanding driving conditions. These tri-metal bearings are designed to excel in high RPM environments, making them an ideal choice for both street and track applications.

Key Features

  • High Strength Overlay: The bearings feature a reduced thickness overlay plate that enhances fatigue resistance, ensuring longevity under extreme conditions.
  • Hardened Steel Backs: Each rod bearing is equipped with hardened steel backs that improve support for the bearing lining and assist with retention within the housing.
  • Increased Crush: Enhanced crush design promotes better bearing retention, ensuring stability during operation.
  • Optimized Heat Transfer: The elimination of flash plating on the back of the bearings improves heat dissipation, maximizing the grip between the bearings and their housing.
  • Increased Eccentricity: Designed to accommodate bore distortion at high RPM, promoting the formation of effective hydrodynamic oil films.
  • 3/4 Grooved Design: These main bearings are 3/4 grooved to optimize load-carrying surface area and enhance oil flow to the connecting rod bearings.
  • Tight Wall Tolerances: Consistent wall tolerances help maintain precise clearances for optimal engine performance.
  • Enlarged ID Chamfers: Chamfers on bearing edges are enlarged where necessary to accommodate large fillet radii on performance crankshafts.

Specifications

  • Size: Standard (STD), .25
  • Oil Clearance: Standard
  • Half Type: Upper & Lower
  • Material: Tri-metal with hardened steel backs
  • Min Standard Shaft Size: 1.9678 in / 49.982 mm
  • Max Standard Shaft Size: 1.9685 in / 50.000 mm
  • Min Standard Tunnel Size: 2.1260 in / 54.000 mm
  • Max Standard Tunnel Size: 2.1267 in / 54.018 mm
  • Max Wall at Crown: 0.0784 in / 1.991 mm
  • Max Overall Length: 0.753 in / 19.13 mm

Fitment

This bearing set is compatible with:

  • Mitsubishi Mirage (1992-2003 & 2014-2016)

Other Part Numbers:
ACL #acl5M8037H-STD
