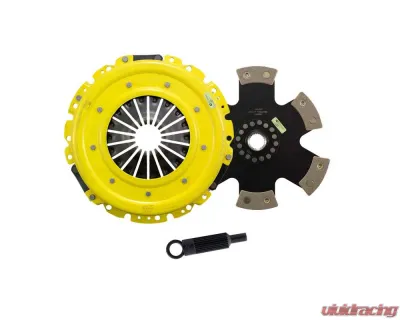

ACT HD/Race Rigid 6 Pad Kit Chevrolet | Pontiac 1993-2013 - GM9-HDR6

ACT GM9-HDR6 Heavy Duty/Race Rigid 6 Pad Clutch Kit

If you're looking to enhance the performance of your Chevrolet Camaro (1993-2002), Corvette (1997-2013), TrailBlazer (2002-2009), or Pontiac Firebird (1993-2002), the ACT GM9-HDR6 Heavy Duty/Race Rigid 6 Pad Clutch Kit is a top-tier choice. This clutch kit is designed for those who demand reliability and performance on the track or street.

Why Choose the GM9-HDR6?

The GM9-HDR6 features ACT's most popular Heavy Duty pressure plate, utilizing an innovative diaphragm design that increases clamp load while reducing deflection. This means you get a clutch that not only lasts longer but provides the consistent performance you need when pushing your vehicle to its limits. Each diaphragm undergoes a rigorous four-stage heat treatment process, ensuring it can withstand the heat generated during spirited driving.

Key Features

  • Light to moderate pedal effort for daily driving, with aggressive engagement for performance use.
  • Moderate friction life, enhanced by ACT's exclusive diaphragm design, although the rigid setup may lead to increased spline wear.
  • Constructed with high-quality ceramic friction materials for exceptional heat tolerance and performance.
  • Engineered for race use, ensuring you have the reliability needed for high RPM scenarios.
  • Every unit is 100% clamp load tested and dynamically balanced for smooth operation at high speeds.

Technical Specifications

  • Clutch Disc Diameter: 11 in (280 mm)
  • Disc Material: Ceramic
  • Input Spline Quantity: 26
  • Input Shaft Diameter: 1.125 in
  • Weight: 27.6 lbs
  • Torque Capacity: 908 ft/lbs
  • Pressure Plate Type: Heavy Duty
  • Alignment Tool Included: Yes
  • Grease Included: Yes

Installation Notes

For optimal performance, this clutch kit must be used with a flat flywheel or the ACT 600585 flywheel specifically designed for LS2/LS3/LS7 applications.

Customer Feedback

Chevrolet Corvette Z06 owners have reported significant improvements in shifting responsiveness after installing the GM9-HDR6, stating, "The engagement is definitely harsher, but the shifts are so much quicker! This clutch has transformed my driving experience." Similarly, a Pontiac GTO owner mentioned, "After upgrading to the ACT GM9-HDR6, I can feel the difference in power transfer during hard launches. It’s a must for anyone serious about performance."

Fitment

This clutch kit is compatible with the following vehicles:

  • Chevrolet Camaro (1993-2002)
  • Chevrolet Corvette (1997-2013)
  • Chevrolet Corvette Grand Sport (2010-2013)
  • Chevrolet Corvette Z06 (2001-2004)
  • Chevrolet TrailBlazer (2002-2009)
  • Pontiac Firebird (1993-2002)
  • Pontiac GTO (2004-2006)

Installation Instructions

For detailed installation instructions, CLICK HERE.

Upgrade your ride with the ACT GM9-HDR6 Heavy Duty/Race Rigid 6 Pad Clutch Kit and experience the difference in performance and reliability!
