ACT HD/Race Sprung 4 Pad Kit Toyota Corona Mark II 1969-1970

~~$584.00~~ SALE: $473.00

As low as $55/mo^* with Affirm. Financing Options

Free Shipping

Add to Wishlist

Model#TK1-HDG4
ManufacturerACT

Have a Question?

Live Chat (480) 966 3040

BEST PRICES, AMAZING SERVICE

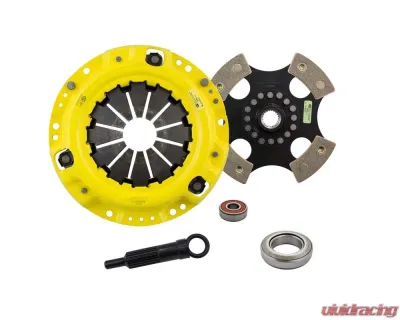

ACT TK1-HDG4 Heavy Duty/Race Sprung 4 Pad Kit

The ACT TK1-HDG4 kit is designed for those who demand performance and reliability from their clutch system. This kit features ACT's renowned Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to enhance clamp load, minimize deflection, and extend the overall lifespan of your clutch. With a rigorous four-stage heat-treating process, each diaphragm is crafted for exceptional performance under pressure.

One of the standout features of the TK1-HDG4 is its precision cover stampings, which ensure rigidity and consistency. The kit also includes a 4-pad spring-centered race disc that effectively dampens torsional vibrations, resulting in quieter operation and improved durability, even in the most demanding environments. Customers have noted that while engagement can be harsher, the benefit is noticeably quicker shifting, making it a favorite for both street and race applications.

What Customers Are Saying

"I installed the TK1-HDG4 on my track car, and the difference is night and day. The engagement is aggressive, but it shifts like a dream. Highly recommend!" - Mike R.

"I've used several clutch kits, but this one really stands out. The pedal feel is just right, and it handles the power without any issues." - Sarah L.

Key Features

Light to moderate pedal effort with aggressive engagement, leading to some OE to mild gear rattle.
Moderate friction life enhanced by ACT's unique diaphragm design.
Engineered with select ceramic friction materials for high heat tolerance and maximum performance.
Ideal for high horsepower street or race use.
100% clamp load tested and dynamically balanced for reliable high RPM performance.

Specifications

Clutch Master Cylinder Included: No
Grease Included: Yes
Grade Type: Performance
Pilot Bushing Included: No
Pressure Plate Type: Heavy Duty
Release Bearing Included: Yes
Clutch Disc Diameter: 7.9 in (200 mm)
Disc Material: Ceramic
Input Spline Quantity: 21
Input Shaft Diameter: 0.9375 in
Alignment Tool Included: Yes
Disc Type: Sprung
Pressure Plate Bolts Included: No
Clutch Slave Cylinder Included: No
Flywheel Bolts Included: No
Pilot Bearing Included: Yes
Product Weight: 10.6 lbs
Torque Capacity: 265 ft/lbs
Torque Capacity Over OE: 0.86

Installation Instructions

For detailed installation instructions, CLICK HERE.

Other Part Numbers:
ACT #actTK1-HDG4

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Vehicle Make/Model	Year	Trims
Toyota Corona	1969-1970	Mark II
