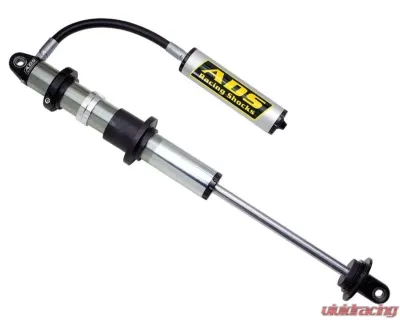

Coil Over Shocks 2.5 Inch Reservoir ADS Racing Shocks

Whether you're cruising down the highway or tackling rugged trails, ADS coil over shocks are designed to stand the test of time. These shocks feature a coil spring positioned over the shock body, which is what makes them so effective. Crafted from some of the toughest materials out there, every ADS coil over shock is equipped with a 7075 aluminum shock piston, known for being more than twice as strong as the standard 6061. This means they can resist cracking and warping, even under the intense heat that comes from off-road adventures. For those opting for ADS 3 Inch and larger diameter coil overs, we’ve upgraded to induction hardened shafting with a hard chrome finish to meet the demands of larger shocks.

So how does a shock absorber work? It transforms kinetic energy into heat, which the shock fluid absorbs and eventually dissipates. On paved roads, the shock shaft barely moves, resulting in minimal heat generation. However, when you're off-roading, the shaft moves much more, creating significant kinetic energy and heat. The durability of the materials used in these shocks directly impacts their lifespan. That's why ADS shocks are built with the strongest materials and top-quality fluids, ensuring they serve you well for years to come.

Even the toughest shocks might need a little TLC from time to time. The great news is that ADS shocks can be fully disassembled using basic hand tools. We also provide replacement parts and accessories, making it easy to rebuild, upgrade, or revalve your shocks right at home. Collapsed Length: 23.785 inches. Extended Length: 37.785 inches.

Features:

• Shock Body: Precision honed steel body, zinc plated to prevent corrosion, and ceramic coated for extra protection against the elements.
• Shock Components: Billet 6061 aluminum parts with an anodized black finish, providing greater strength than traditional cast components.
• Piston: Race-inspired 7075 hard anodized billet aluminum piston for superior strength, with set screws for precise tuning across various driving speeds.
• Wear Band: Teflon coated bronze with overlapping ends, designed to keep operating temperatures cooler while maintaining a positive seal.
• Valving: Precision ground and stamped for accurate dampening control.
• Shock Oil: High performance 10 weight shock oil ensures greater temperature-viscosity stability and resists foaming and cavitation.
• Shaft: Hard chrome plated shaft with a large diameter for enhanced strength.
• Shaft Seals: Proprietary rod seals guarantee leak-free performance, even under the extreme pressures of tough terrain.
• Reservoir: Lightweight aluminum cylinder designed for heat dissipation and reliability, featuring billet threaded caps to prevent leaks and keep out dirt and moisture.
• Nitrogen Valve: Protective billet aluminum cap to prevent damage and leakage.
• Hose: High-quality, large, steel-lined rubber hose for efficient fluid transfer, complete with O-ring seals on both ends.
• Bearings: Large, replaceable Teflon lined bearings, made in the U.S.A, offering outstanding durability.
• Mounting: Billet stainless steel heim spacers with a captive design for easy installation.
• Spring Adjuster: Billet aluminum with a releasable pinch bolt for hassle-free adjustments.
• Coil-Over Threads: Standard pitch thread for precise engagement.
• Coil Divider: Composite design with an extended neck for improved spring alignment.
• Dual Rate Nuts: Allow for a softer initial rate and a firmer final rate to handle various terrains.

Note:

• Springs not included.
