AEM Electronics V2 Water Methanol Multi Input Controller Kit

$165.61 Sale:$149.05

AEM Electronics

Model #30-3305

Free Shipping

In Stock

Help me decide

Shopper Award

AEM s Multi-Input water/methanol injection controller features a multiple input design that enables users to install it on both high compression naturally aspirated vehicles (NA) via the MAF/IDC settings and ultra-high boost vehicles (above 35 PSI) using an external MAP sensor. The Multi-Input controller works with an external 0-5v voltage-based external MAP sensor, a frequency based input for Injector Duty Cycle (IDC), frequency-based mass airflow (MAF), or a 0-5v voltage-based MAF.

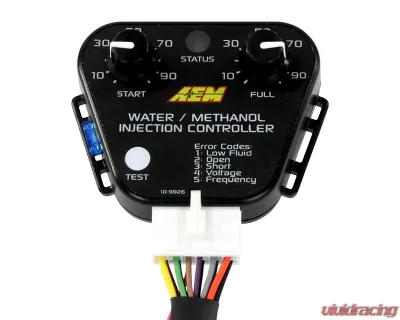

The controller design features large, turn-resistant knobs and larger numbering to easily set accurate start and full activation points, with covered status LED and test buttons for added splash resistance. A plug is integrated into the controller housing for mating to the redesigned wiring harness s positive-lock connector. The Multi-Input controller has an easy-to-remove plug covering the programming dipswitches and a programming legend on the back for the 0-5v and frequency based settings. The controller housing features an easy to access integrated fuse and molded mounting tabs.

AEM s engineers spent extensive time developing the controller s flow control strategy for a more linear flow output delivery. This means that the flow delivery better matches an engine s need for water/methanol injection, which further optimizes charge air cooling and detonation control on gasoline engines or EGT reduction on turbo Diesels.

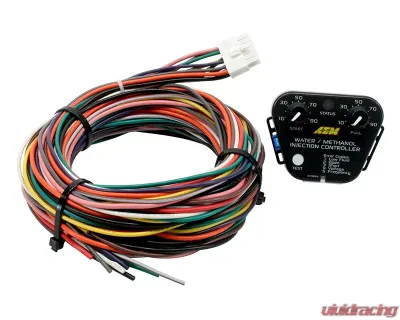

AEM s Water/Methanol Injection wiring harness for the Multi-Input controller is terminated with a positive-lock connector on one end and has color-coded wires to ease installation. Both the power and ground wires for the pump are included in the harness which simplifies the wiring process and eliminates any chance of the pump accidentally activating from a short in the system. An additional wire is included for adding an optional on/off solenoid to stop fluid flow when the system is inactive.

Features:

  • Controller design features large, turn-resistant knobs
  • Easy to access integrated fuse and molded mounting tabs
  • Status LED and test buttons
NOTE 1: For Optimum Results, All Water/Methanol Injection Systems And Gauges Should Be Run With An AEM Inline Filter
NOTE 2: Improper installation and/or adjustment of this product can result in major engine/vehicle damage.
