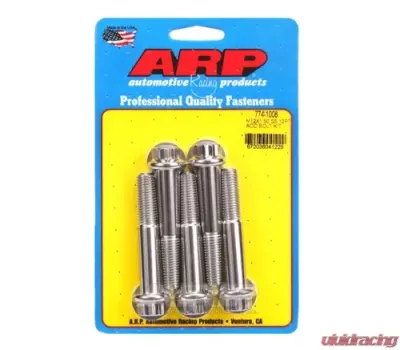

ARP Bolts M12 x 1.50 x 70mm 12pt Stainless Steel Bolts (5/PKG) - 14mm Socket Size - 774-1008

ARP 774-1008 Bolts: Precision Engineering for High-Performance Applications

ARP has been a leader in fastener technology since 1968, delivering products designed to withstand the demanding conditions of motorsport and high-performance applications. The ARP 774-1008 bolts are engineered to provide superior strength and reliability, making them an essential upgrade for any serious builder or racer.

Specifications

  • Socket Size: 14mm 12-point
  • Torque Value: 98 ft-lbs (132.9 Nm)
  • Overall Length (UHL): 70mm
  • Thread Length: 30mm
  • Grip Length: 40mm
  • Thread Diameter and Pitch: M12 x 1.50mm
  • Grip Diameter: 12mm
  • Wrenching Size: 14mm
  • Head Height: 11.7mm
  • Collar Diameter: 21.6mm

These bolts are specifically designed to handle extreme loads, making them ideal for critical applications such as cylinder heads and driveline components. The high installation pre-loads ensure that each bolt maintains a secure fit, minimizing the risk of failure under stress.

Installation Notes

Proper installation is crucial to achieving the full performance potential of the ARP 774-1008 bolts. Adhere to the specified torque values to ensure optimal clamping force. These bolts are compatible with a variety of applications that utilize M12 x 1.50mm thread sizes but confirm fitment based on your specific needs.

Whether you're building a race engine or upgrading your drivetrain, the ARP 774-1008 bolts provide the strength and reliability needed for high-performance applications.

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

ARP Bolts Logo

The Story Behind ARP Bolts

ARP (Automotive Racing Products) was founded by Gary Holzapfel in 1968 when he noticed his drag-racing friends succumbing to bolt-induced engine failure as a result of poor-quality fasteners. He drew upon his expertise in the aerospace industry to develop a solution, which turned into a successful business nonetheless.

Since its inception, ARP has been engineering and perfecting a wide range of bolts, studs, nuts, and other fasteners for engines, cylinder heads, headers, wheels, and transmissions. Today, ARP remains the undisputed world leader in automotive fasteners. Racing aficionados everywhere know and recognize the ARP brand and can vouch for its quality.

What Makes ARP Bolts So Special?

Located in Ventura, California, all ARP processes from raw wire to finished fasteners are conducted in-house, right here in the USA. The company continually improves its processes with strict quality control guidelines and is dedicated to producing products that are second to none. Simply put, ARP Bolts are better than the competition because of their quality materials and advanced processes.

ARP prides itself on using only top-quality materials that are above the usual “aerospace-grade” quality that other manufacturers settle for. For example, while 8740 Chromoly steel has four different grades, ARP only uses the top two, SDF and CHQ. These grades cost twice as much as the lower commercial and aircraft grades, but deliver “zero defect” quality that you can trust each and every time.

ARP Bolts are built to withstand serious racing, possess greater tensile strengths, and can survive higher stress levels than most aircraft fasteners. ARP is dedicated to creating fasteners that boast ultimate strength and durability to ensure they last race after race. Its product lineup ranges from quality high-performance OEM parts to exotic specialty hardware for IndyCar, NASCAR, NHRA drag racing, Formula 1, and even marine applications.

Equip Your Ride with ARP Bolts at Vivid Racing

If you are looking to change the fasteners on your car, you’ve come to the right place. No other brand beats out ARP Bolts in terms of strength, quality, and race-proven success. Vivid Racing is, therefore, proud to carry an extensive lineup of products from American Racing Products like bolts, fluids, sealants, hand tools, stud kits, piston sleeves, wheel bolts, and more! If you have any questions regarding the parts above, please call our specialized sales team at (480) 966-3040.
