  See more parts for Ford F-250 Super Duty
Select the year of your Ford F-250 Super Duty:

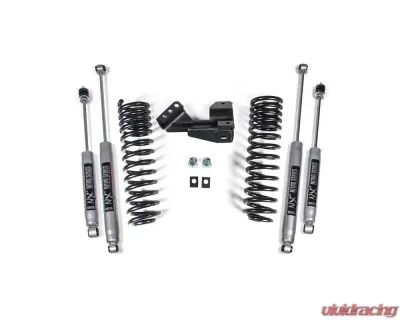

BDS Suspension 1-2 Inch Leveling Kit Performance Spring | NX2 Nitro Series Shock Ford F250 | F350 Super Duty 4WD 2017-2025 - BDS1910H
Simply level out your Ford F250 and F350 Super Duty truck to the next level with this performance spring 2-inch leveling kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes dual rate Pro-Ride coil springs, track bar relocation bracket for steering correction, and alignment cams. This kit is rounded out with your choice of NX2 twin tube gas or FOX 2.0 Performance Series monotube IFP shocks to further dial in the comfort and control of your F250/F350.

A pair of full-length Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. These dual rate springs utilize a softer initial spring rate over factory for improved on-road comfort, while also using a higher secondary spring rate to provide stability and performance in harsh terrains.



Features:
  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs ride smooth through any terrain
  • Heavy duty track bar relocation bracket designed to recenter the front axle
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
  • NX2 Nitro Series
    • Nitrogen-charged
    • Twin-tube design
    • 10-stage velocity-sensitive valving
    • Dual-welded ends for increased strength
    • 1-3/8-inch high-flow piston
    • Self-lubricating seals
    • Silver powder coat finish


    Specifications:
    • Front Lift Method : Coil Spring
    • Front Lift Height : 2
    • Rear Lift Method : Stock
    • Rear Lift Height : 0"
    • Shocks Included : Yes
    • Lift Height : 2-3.5"
    • Recommended Tires & Wheels (Trimming may be required):
      • 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
      • 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
      • 35 x 12.5 with 20 x 9 and 4.5 in. Backspace


    Fitment:
    • Ford F250/F350 Super Duty (1 Inch Lift) 4WD Diesel/Gas 2017-2019
    • Ford F250/F350 Super Duty (2 Inch Lift) 4WD Diesel/Gas 2020-2025


    Note:
    • 2017-2019 models net 1 inch of lift height; requires an additional 1 inch coil spring spacer to sit level.
    • 2020-2025 models net 2 inch.
    • Kit designed for diesel models; Gas models will achieve approx. 1/2 inch more ride height.
    • 2024+ Ford Super Duty Only: This kit includes ball joint cams to achieve optimum performance both on and off-road. For vehicles equipped with non-selectable passenger side hub-lock on the front axle along with these ball joint cams, it is required to replace the non-selectable with a selectable hub-lock. Part number (PC3Z-3B396-A) is needed to prevent a grinding noise from the front axle for these applications. If your vehicle is not factory equipped with them, you may also need vacuum lines (3C125-A and/or 3C124). You can reference Section 307-07A of the Workshop Manual or Bulletin SSM 52423 for more information. See installation instructions for additional Information.
    • Fits SRW models only.
    • Vehicles with radius arm mounted ride height sensors will require BDS123303.
    • 2023+ Models: Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of the vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation. Please connect with your local dealership or ADAS service center. Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.

Other Part Numbers:
BDS Suspension #BDS1910H-BLDV

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Vehicle
2017-2025
 Ford F-250 Super Duty
2017-2025
 Ford F-350 Super Duty
