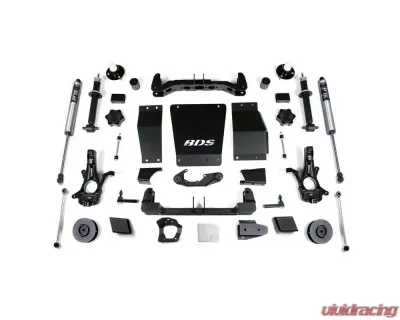

Take your 2015-2019 Chevy Suburban, or Tahoe and GMC Yukon 1500 to new heights with a BDS 4-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers coil spring spacers to properly level the vehicle. Also for the rear are precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
Features:
Specifications:
Fitment:
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers coil spring spacers to properly level the vehicle. Also for the rear are precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
Features:
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- High-strength replacement upper control arms provide durability and serviceability
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
- FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Specifications:
- Front Lift Method : Cross-Member
- Front Lift Height : 4"
- Rear Lift Method : Coil Spring
- Rear Lift Height : 3"
- Shocks Included : Yes
- Lift Height : 4-5.5"
- Recommended Tires & Wheels (Trimming may be required):
- 32 x 12.5 with 17 x 8 and 4.5 in. Backspace
- 33 x 12.5 with 18 x 9 and 5 in. Backspace
- 33 x 12.5 with 20 x 9 and 5.75 in. Backspace
Fitment:
- Chevrolet Suburban 4WD 2015-2019
- Chevrolet Tahoe 4WD 2015-2019
- GMC Yukon/XL 4WD 2015-2019
Other Part Numbers:
BDS Suspension #BDS734FS-BLDV
Proposition 65
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
| Make Vehicle | Model | Year |
|---|---|---|
|
2015-2019 Chevrolet Suburban |
Suburban | 2015-2019 |
|
2015-2019 Chevrolet Tahoe |
Tahoe | 2015-2019 |
|
2015-2019 GMC Yukon |
Yukon | 2015-2019 |
|
2015-2019 GMC Yukon XL |
Yukon XL | 2015-2019 |
