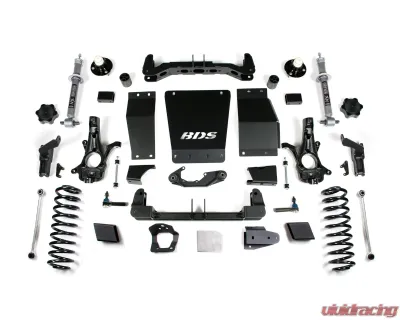

Take your 2015-2019 Chevy Suburban, or Tahoe and GMC Yukon 1500 to new heights with a BDS 6-inch lift kit. Works only on Autoride equipped SUVs. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes a full length NX2 nitrogen charged strut, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers new Pro-Ride coil springs for on-road ride quality as well as serious off road performance, anti-sway bar links, track bar relocation system, and adjustable upper control arms allowing you to properly adjust pinion angle. The rear sensors are relocated using the supplied brackets along with rear shock extensions to retain the factory electronic dampers.
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
GM is producing several knuckle/control arm configurations in 2014-2018 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering.
Features:
Specifications:
Fitment:
Note:
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes a full length NX2 nitrogen charged strut, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers new Pro-Ride coil springs for on-road ride quality as well as serious off road performance, anti-sway bar links, track bar relocation system, and adjustable upper control arms allowing you to properly adjust pinion angle. The rear sensors are relocated using the supplied brackets along with rear shock extensions to retain the factory electronic dampers.
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
GM is producing several knuckle/control arm configurations in 2014-2018 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering.
Features:
- Includes shock relocation brackets to maintain factory Autoride shocks
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- High-strength replacement upper control arms provide durability and serviceability
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
Specifications:
- Front Lift Method : Cross-Member
- Front Lift Height : 6
- Rear Lift Method : Coil Spring
- Rear Lift Height : 5"
- Shocks Included : No
- Lift Height : 6-7.5"
- Recommended Tires & Wheels (Trimming may be required):
- 33 x 12.5 with 17 x 8 and 4.5 in. Backspace
- 34 x 12.5 with 18 x 9 and 5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5.75 in. Backspace
Fitment:
- Chevrolet Suburban 2015-2019
- Chevrolet Tahoe 2015-2019
- GMC Yukon 2015-2019
- GMC Yukon XL 2015-2019
Note:
- Frame bracket modification and welding are required.
- 20 inch wheels with 5 inch to 5-3/4 inch backspacing are recommended to reduce trimming.
- AWD models may require front driveline modification
- Factory 17 inch and 18 inch wheels cannot be reinstalled due to tie rod interference.
Other Part Numbers:
BDS Suspension #BDS737H-BLDV
Proposition 65
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
| Vehicle Make/Model | Year | Trims |
|---|---|---|
| Chevrolet Suburban | 2015-2019 | LS |
| Chevrolet Suburban | 2015-2019 | LT |
| Chevrolet Suburban | 2015-2016 | LTZ |
| Chevrolet Suburban | 2016-2019 | HD |
| Chevrolet Suburban | 2017-2019 | Premier |
| Chevrolet Suburban 3500 HD | 2016-2019 | LS |
| Chevrolet Suburban 3500 HD | 2016-2019 | LT |
| Chevrolet Tahoe | 2015-2019 | PPV |
| Chevrolet Tahoe | 2015-2019 | SSV |
| Chevrolet Tahoe | 2015-2019 | LT |
| Chevrolet Tahoe | 2015-2016 | LTZ |
| Chevrolet Tahoe | 2015-2019 | LS |
| Chevrolet Tahoe | 2016-2017 | Z71 |
| Chevrolet Tahoe | 2017-2019 | Premier |
| Chevrolet Tahoe | 2017-2019 | Police |
| Chevrolet Tahoe | 2018 | Midnight Edition |
| GMC Yukon | 2015-2019 | SLE |
| GMC Yukon | 2015-2019 | Denali |
| GMC Yukon | 2015-2019 | SLT |
| GMC Yukon XL | 2015-2019 | Denali |
| GMC Yukon XL | 2015-2019 | SLT |
| GMC Yukon XL | 2015-2019 | SLE |
