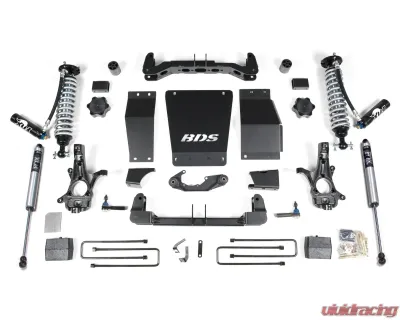

BDS steps up the performance and capability of the 2014-2018 Chevy Silverado and GMC Sierra 1500 trucks with 4-inch coil-over suspension lift kits. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increased travel and the ability to soak up the roughest terrain along with smooth on-road comfort.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar links, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and FOX 2.0 Performance Series shocks.

FOX 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

FOX 2.5 coil-overs are available with optional DSC (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.

GM is producing several knuckle/control arm configurations in 2014-2018 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering.



Features:

• FOX 2.5 Factory Race series coilovers for improved ride quality, performance, and capability
• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included
• FOX 2.5 Coil-Overs
• 2.5-inch smooth bore zinc plated seamless steel body
• Zinc-plated and double-clear coated for long lasting finish
• Black-anodized, CNC-machined 6061-T6 billet aluminum
• Application-specific, adjustable 3.0 Eibach® racing springs
• 7/8-inch hard chrome-plated steel shafts
• Application specific valving to maximize performance
• Dual Speed Compression (DSC) Adjuster
• Increases both low and high-speed compression levels up to 25%
• Easy twist knobs for Low-Speed and High-Speed Compression adjustment
• Provides added control and comfort for on-road use
• More aggressive damping for use off-road
• 4 Inch Block Kit
• The 4" rear block replaces the factory 1-1/4" block
• Nets 2-3/4" of rear lift to level the vehicle.
• Made of cast iron for high strength.
• Designed to provide correct pinion angles.

Specifications:

• Front Lift Method : Cross-Member
• Front Lift Height : 4"
• Rear Lift Method : Block
• Rear Lift Height : 4"
• Shocks Included : Yes
• Lift Height : 4-5.5"
?
• Recommended Tires & Wheels (Trimming may be required):
• 33 x 12.5 with 17 x 9 and 5 in. Backspace
• 33 x 12.5 with 18 x 9 and 5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5.75 in. Backspace

Fitment:

• Chevrolet Silverado 1500 4WD 2014-2018
• GMC Sierra 1500 4WD 2014-2018

Note:

• Strut compressor required
• Requires frame bracket modification
• Requires differential modification to clear electric power steering
• Factory 17 inch and 18 inch wheels cannot be reinstalled due to tie rod end interference
• If choosing the 5 inch rear block option, add-a-leaf # 111209 is recommended for a more level/tail high stance on crew cab models.
• All wheel drive models require drive line modification.
• Will not fit MagneRide magnetic ride control equipped models
