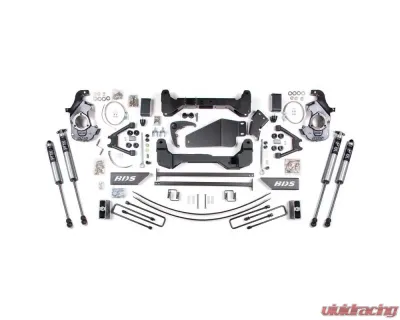

Engineered to improve stance, performance, and capability, the BDS 6-inch lift kit for the 1988-1998 Chevy and GMC K1500 and K2500 6 Lug trucks is a must have upgrade. For maximum drivability, BDS designed this kit around heavy duty upper control arms and steering knuckles that offers zero track width change. This kit includes everything necessary to set your truck up right with clearance for up to 35" tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes torsion bar drop brackets, heavy duty upper control arms, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers both replacement lift block / add-a-leaf combo and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
Features:
Specifications:
Fitment:
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes torsion bar drop brackets, heavy duty upper control arms, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers both replacement lift block / add-a-leaf combo and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
Features:
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles for long lasting durability
- High-strength replacement upper control arms provide durability and serviceability
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
- FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
- 5 Inch Block Kit with Add-A-Leaf
- Designed to give 4.5" of lift.
- Help freshen up old worn-out factory leaf springs.
- Includes new center pins.
Specifications:
- Front Lift Method : Cross-Member
- Front Lift Height : 6
- Rear Lift Method : Block
- Rear Lift Height : 5"
- Shocks Included : Yes
- Lift Height : 6-7.5"
- Recommended Tires & Wheels (Trimming may be required):
- 35 x 12.5 with 15 x 8 and 3.625 in. Backspace
- 35 x 12.5 with 17 x 8 and 4.5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5.25 in. Backspace
Fitment:
- Chevrolet K1500/K2500 6 Lug 4WD 1988-1998
- GMC K1500/K2500 6 Lug 4WD 1988-1998
Other Part Numbers:
BDS Suspension #BDS193FS-BLDV
Proposition 65
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
| Vehicle Make/Model | Year | Trims |
|---|---|---|
| Chevrolet C1500 | 1988-1993 | Cheyenne |
| Chevrolet C1500 | 1988-1993 | Silverado |
| Chevrolet C1500 | 1988-1992 | Scottsdale |
| Chevrolet C1500 | 1989-1991 | Base |
| Chevrolet C1500 | 1990-1993 | 454 SS |
| Chevrolet C1500 | 1990-1993 | WT |
| Chevrolet K1500 | 1988-1998 | Cheyenne |
| Chevrolet K1500 | 1988-1998 | Silverado |
| Chevrolet K1500 | 1988-1992 | Scottsdale |
| Chevrolet K1500 | 1990-1998 | WT |
| Chevrolet K1500 | 1991 | Sport |
| Chevrolet K1500 | 1994-1997 | Base |
| GMC C1500 | 1988-1998 | Sierra SLE |
| GMC C1500 | 1988-1993 | Sierra SLX |
| GMC C1500 | 1988-1993 | Sierra |
| GMC C1500 | 1994-1998 | Sierra Special |
| GMC C1500 | 1994-1998 | Sierra SL |
| GMC C1500 | 1994-1998 | Sierra SLT |
| GMC C1500 | 1997 | Sierra GT |
| GMC C1500 Suburban | 1992-1998 | SLE |
| GMC C1500 Suburban | 1992-1998 | Base |
| GMC C1500 Suburban | 1995-1998 | SLT |
| GMC C2500 | 1988-1993 | Sierra SLX |
| GMC C2500 | 1988-1998 | Sierra SLE |
| GMC C2500 | 1988-1993 | Sierra |
| GMC C2500 | 1994-1998 | Sierra SL |
| GMC C2500 | 1994-1998 | Sierra SLT |
| GMC C2500 Suburban | 1992-1998 | SLE |
| GMC C2500 Suburban | 1992-1998 | Base |
| GMC C2500 Suburban | 1995-1998 | SLT |
| GMC K1500 | 1988-1993 | Sierra |
| GMC K1500 | 1988-1998 | Sierra SLE |
| GMC K1500 | 1988-1993 | Sierra SLX |
| GMC K1500 | 1993 | Sierra Sport |
| GMC K1500 | 1994-1998 | Sierra SLT |
| GMC K1500 | 1994-1998 | Sierra Special |
| GMC K1500 | 1994-1998 | Sierra SL |
| GMC K1500 | 1995 | Sierra SLS |
| GMC K1500 Suburban | 1992-1998 | Base |
| GMC K1500 Suburban | 1992-1998 | SLE |
| GMC K1500 Suburban | 1995-1998 | SLT |
| GMC K2500 | 1988-1993 | Sierra |
| GMC K2500 | 1988-1993 | Sierra SLX |
| GMC K2500 | 1988-1998 | Sierra SLE |
| GMC K2500 | 1994-1998 | Sierra SLT |
| GMC K2500 | 1994-1998 | Sierra SL |
| GMC K2500 Suburban | 1992-1998 | SLE |
| GMC K2500 Suburban | 1992-1998 | Base |
| GMC K2500 Suburban | 1995-1998 | SLT |
