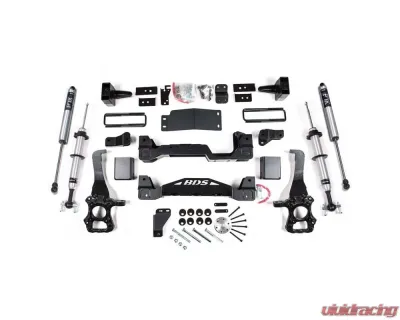

BDS Suspension 6 Inch Lift Kit 4 Inch Block Kit Ford F150 4WD 2015-2020 - BDS1305FSR
Prepare to get your 2015-2020 Ford F150 4WD truck dirty after installing a 6-inch lift kit with FOX 2.0 struts by BDS Suspension. Designed to improve stance the BDS 6 inch lift kit with FOX 2.0 front struts give more capability off-road. This kit includes everything necessary to set your F150 truck up right with clearance for up to 37" tires.This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes FOX 2.0 strut shocks, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.These FOX 2.0 Performance Series coil-over struts bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut assemblies while retaining the OE coil spring and top plate. They feature a 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, 5/8" hard chrome plated heat-treated alloy shaft.BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.



Features:
  • FOX 2.0 Performance IFP shocks eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving
  • High clearance crossmembers improve strength and offroad capability
  • Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential skid plate for improved offroad protection
  • Rear lift blocks and u-bolts to lift and level the stance
  • 4 Inch Block Kit
    • Tail low to level stance


Specifications:
  • Front Lift Method : Leaf Spring
  • Front Lift Height : 6
  • Rear Lift Method : Block
  • Rear Lift Height : 4.5"
  • Shocks Included : Yes
  • Lift Height : 6-7.5"
  • Recommended Tires & Wheels (Trimming may be required):
    • 35 x 12.5 with 20 x 9 and 5 in. Backspace
    • 37 x 12.5 with 20 x 9 and 5 in. Backspace


Fitment:
  • Ford F150 4WD 2015-2020


Note:
  • 18 inch wheels with 5-5.5 inch total backspacing should be test fir prior to mounting tire to ensure proper clearance to BDS steering knuckle.
  • 18 inch or larger diameter wheels required. Stock 17 inch and 18 inch wheels cannot be reinstalled. Stock 20 inch wheels can be used with up to a 305/60-20 tires.
  • E-brake bracket required for factory powersteps (123018)
  • Block kits replace factory 1-1/4 inch block.
  • Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406
  • Will not fit HD models (7 lug).

Other Part Numbers:
BDS Suspension #BDS1305FSR-BLDV
