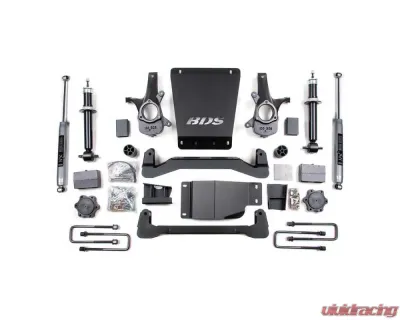

BDS Suspension 4 Inch Lift Kit | 5 Inch Block Kit | NX2 Nitro Series Shock Chevrolet Silverado | GMC Sierra 1500 4WD 2007-2013 - BDS184H
Take your 2007-2013 Chevy Silverado and GMC Sierra 1500 to new heights with a BDS 4-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.



Features:
  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Factory Protection Plus drivetrain warranty included
  • NX2 Nitro Series
    • Nitrogen-charged
    • Twin-tube design
    • 10-stage velocity-sensitive valving
    • Dual-welded ends for increased strength
    • 1-3/8-inch high-flow piston
    • Self-lubricating seals
    • Silver powder coat finish
  • 5 Inch Block Kit
    • The 5" rear block replaces the factory 2" block
    • Nets 3" of rear lift to level the vehicle.
    • Made of cast iron for high strength.
    • Designed to provide correct pinion angles.


Specifications:
  • Front Lift Method : Cross-Member
  • Front Lift Height : 4"
  • Rear Lift Method : Block
  • Rear Lift Height : 5"
  • Shocks Included : Yes
  • Lift Height : 4-5.5"
  • Recommended Tires & Wheels (Trimming may be required):
    • 32 x 11.5 with 17 x 8 and 4.5 in. Backspace
    • 33 x 12.5 with 17 x 9 and 5 in. Backspace
    • 33 x 12.5 with 20 x 9 and 5.75 in. Backspace


Fitment:
  • Chevrolet Silverado 1500 4WD 2007-2013
  • GMC Sierra 1500 4WD 2007-2013

Other Part Numbers:
BDS Suspension #BDS184H-BLDV
