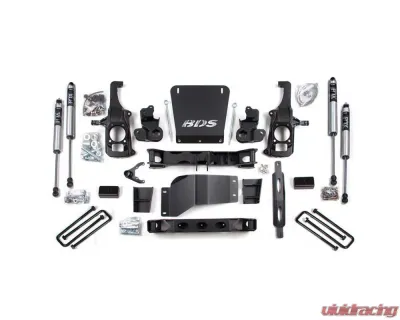

Improve the stance, performance, and capability of your 2011-2019 Chevy Silverado and GMC Sierra 2500 HD 4WD with a BDS 6.5-inch lift kit. For maximum ground clearance, BDS designed a No Torsion Bar Drop System where the torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar cross-member. This kit includes everything necessary to set your truck up right with clearance for up to 37" tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar links, bump stop extensions, stainless steel brake lines, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers replacement lift blocks to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear is a u-bolt flip kit for max clearance and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function.
Features:
Specifications:
Fitment:
Note:
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar links, bump stop extensions, stainless steel brake lines, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers replacement lift blocks to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear is a u-bolt flip kit for max clearance and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function.
Features:
- High Clearance design w/ no torsion bar drop maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
- Choice of NX2 or FOX 2.0 gas shocks for improved performance
- 3" block - Will result in a slightly tail-low stance.
- FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Specifications:
- Front Lift Method : Cross-Member
- Front Lift Height : 6.5"
- Rear Lift Method : Block
- Rear Lift Height : 3"
- Shocks Included : Yes
- Lift Height : 6-7.5"
- Recommended Tires & Wheels (Trimming may be required):
- 37 x 12.5 with 17 x 8 and 4.625 in. Backspace
- 37 x 12.5 with 18 x 9 and 4.625 in. Backspace
- 37 x 12.5 with 20 x 9 and 6 in. Backspace
Fitment:
- Chevrolet Silverado 2500HD/3500HD 2/4WD 2011-2019
- GMC Sierra 2500HD/3500HD 2/4WD 2011-2019
Note:
- Torsion Bar Tool required to load/unload the torsion bars.
- 3 inch rear block kit recommended for dually applications, 5 inch rear block kit will not fit dually applications.
- Stock 17 inch & 18 inch wheels cannot be reinstalled.
- Stock 20 inch x 8.5 inch wheels with 6.18 inch backspacing may fit with a max tire size of 37x12.50 on certain tire sidewall profiles due to clearance to the steering knuckle and sway bar. A minimum 1/4 inch wheel spacer may be required due to tire side wall profile variations. A wider tire will cause clearance issues with the steering knuckle.
- Factory dually wheels cannot be reinstalled.
- Models with two piece rear driveshaft may require #121612.
- If minor front driveline vibration occurs at highway speeds while in 4wd and the vehicle will be used in this situation on a regular basis, we recommend replacing the front driveshaft with a dual Cardan style driveshaft.
Other Part Numbers:
BDS Suspension #BDS199FS-BLDV
Proposition 65
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
| Vehicle Make/Model | Year | Trims |
|---|---|---|
| Chevrolet Silverado 2500 | 2011-2012, 2014, 2016-2017 | Base |
| Chevrolet Silverado 2500 | 2013, 2015-2018 | LS |
| Chevrolet Silverado 2500 HD | 2011-2019 | LT |
| Chevrolet Silverado 2500 HD | 2011-2019 | WT |
| Chevrolet Silverado 2500 HD | 2011-2019 | LTZ |
| Chevrolet Silverado 2500 HD | 2015-2019 | High Country |
| Chevrolet Silverado 3500 | 2011-2013, 2016-2018 | Base |
| Chevrolet Silverado 3500 | 2015 | WT |
| Chevrolet Silverado 3500 HD | 2011-2019 | LT |
| Chevrolet Silverado 3500 HD | 2011-2019 | WT |
| Chevrolet Silverado 3500 HD | 2011-2019 | LTZ |
| Chevrolet Silverado 3500 HD | 2015-2019 | High Country |
| GMC Sierra | 2011-2019 | Denali |
| GMC Sierra | 2011-2012 | Base |
| GMC Sierra | 2013-2015 | SLT |
| GMC Sierra | 2013-2019 | SLE |
| GMC Sierra | 2014-2018 | All Terrain |
| GMC Sierra | 2019 | AT4 |
| GMC Sierra 1500 | 2011-2019 | SLT |
| GMC Sierra 1500 | 2011-2013 | SL |
| GMC Sierra 1500 | 2011-2013 | WT |
| GMC Sierra 1500 | 2011-2013 | XFE |
| GMC Sierra 1500 | 2011-2019 | Denali |
| GMC Sierra 1500 | 2011-2019 | SLE |
| GMC Sierra 1500 | 2011-2013 | Hybrid |
| GMC Sierra 1500 | 2014-2019 | Base |
| GMC Sierra 1500 | 2019 | AT4 |
| GMC Sierra 1500 | 2019 | Elevation |
| GMC Sierra 1500 Limited | 2019 | SLE |
| GMC Sierra 1500 Limited | 2019 | Base |
| GMC Sierra 2500 HD | 2011-2019 | Denali |
| GMC Sierra 2500 HD | 2011-2019 | SLE |
| GMC Sierra 2500 HD | 2011-2014 | WT |
| GMC Sierra 2500 HD | 2011-2019 | SLT |
| GMC Sierra 2500 HD | 2015-2019 | Base |
| GMC Sierra 3500 HD | 2011-2019 | SLE |
| GMC Sierra 3500 HD | 2011-2014 | WT |
| GMC Sierra 3500 HD | 2011-2019 | Denali |
| GMC Sierra 3500 HD | 2011-2019 | SLT |
| GMC Sierra 3500 HD | 2015-2019 | Base |
