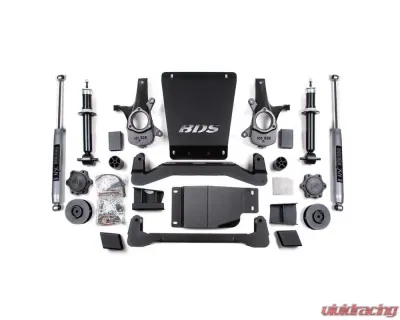

Take your 2007-2014 Chevy Avalanche, Suburban, or Tahoe and GMC Yukon 1500 to new heights with a BDS 4-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers coil spring spacers to properly level the vehicle. Also for the rear are precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
Features:
Specifications:
Fitment:
Note:
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers coil spring spacers to properly level the vehicle. Also for the rear are precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
Features:
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- High-strength replacement upper control arms provide durability and serviceability
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
- NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
- 3 Inch Lift Coil Spacer
- If your vehicle is closer to 1" tail high from the factory then this is the appropriate selection to level your vehicle.
- This kit includes 3" coil spacers and a track bar relocation system.
Specifications:
- Front Lift Method : Cross-Member
- Front Lift Height : 4"
- Rear Lift Method : Spacer
- Rear Lift Height : 3"
- Shocks Included : Yes
- Lift Height : 4-5.5"
- Recommended Tires & Wheels (Trimming may be required):
- 32 x 11.5 with 17 x 8 and 4.5 in. Backspace
- 33 x 12.5 with 17 x 9 and 5 in. Backspace
- 33 x 12.5 with 20 x 9 and 5.75 in. Backspace
Fitment:
- Chevrolet Avalanche 2007-2013
- Chevrolet Suburban 1500 2007-2014
- Chevrolet Tahoe 2007-2014
- GMC Yukon 2007-2014
- GMC Yukon XL 1500 2007-2014
Note:
- Will not work with auto-ride equipped vehicles.
- Strut compressor required for installation.
- Minor premature engagement of the StabiliTrak system may occur during certain driving maneuvers.
- Minor frame bracket modification and welding are required.
- 20 inch wheels with 5 inch to 5-3/4 inch backspacing are recommended to reduce trimming.
- Add 121651 Auxillary Differential bracket for AWD models. Also may require front driveline modification.
Other Part Numbers:
BDS Suspension #BDS900H-BLDV
Proposition 65
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
| Make Vehicle | Model | Year |
|---|---|---|
|
2007-2013 Chevrolet Avalanche |
Avalanche | 2007-2013 |
|
2007-2014 Chevrolet Suburban |
Suburban | 2007-2014 |
|
2007-2014 Chevrolet Tahoe |
Tahoe | 2007-2014 |
|
2007-2014 GMC Yukon |
Yukon | 2007-2014 |
|
2007-2014 GMC Yukon XL |
Yukon XL | 2007-2014 |
