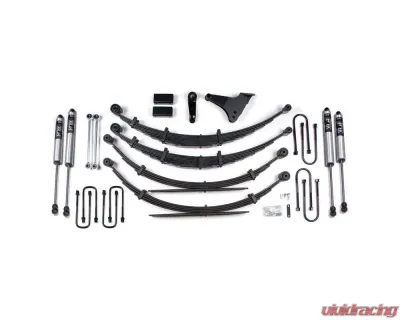

Update the style of your 2000-2005 Ford Excursion with this 6-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.
Up front the lift kit includes Glide-Ride leaf springs, forged drop pitman arm and track bar bracket for steering correction, sway bar links, bump stop brackets and precision tuned NX2 or FOX nitrogen charged shocks.
In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.
Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Features:
Specifications:
Fitment:
Note:
Up front the lift kit includes Glide-Ride leaf springs, forged drop pitman arm and track bar bracket for steering correction, sway bar links, bump stop brackets and precision tuned NX2 or FOX nitrogen charged shocks.
In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.
Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Features:
- Easy, 100% Bolt-on installation
- Glideride leaf springs to provide full lift height and increased capacity
- Track bar relocation bracket maintains proper steering angles for improved handling
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Specifications:
- Front Lift Method : Leaf Spring
- Front Lift Height : 6
- Rear Lift Method : Leaf Spring
- Rear Lift Height : 5"
- Shocks Included : Yes
- Lift Height : 6-7.5"
- Recommended Tires & Wheels (Trimming may be required):
- 35 x 12.5 with 16 x 8 and 4 in. Backspace
Fitment:
- Ford Excursion 4WD 2000-2005
Note:
- Remove factory block.
- Models with rear CV driveshaft may experience drive line vibration.
- Due to OE variances, you may need to change the rear block to level the truck.
- #003202, #003402, #003602, #003609, #003802 & #003809 come with rubber bushings installed.
Other Part Numbers:
BDS Suspension #BDS303FS-BLDV
Proposition 65
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
| Vehicle Make/Model | Year | Trims |
|---|---|---|
| Ford Excursion | 2000-2005 | XLT |
| Ford Excursion | 2000-2005 | Limited |
| Ford Excursion | 2003-2005 | Eddie Bauer |
| Ford Excursion | 2004-2005 | XLS |
