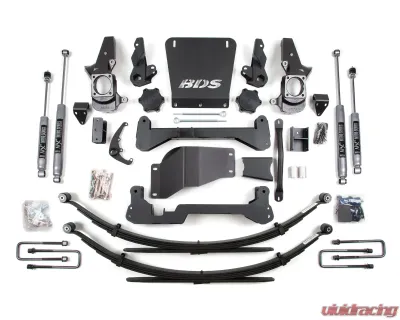

Designed to improve stance, performance, and capability, the BDS 6-inch lift kit for the 2001-2010 Chevy Silverado and GMC Sierra 2500 HD 4WD is a must have upgrade. For maximum ground clearance, BDS designed a No Torsion Bar Drop System where the torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar cross-member. This kit includes everything necessary to set your truck up right with clearance for up to 35" tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function..
This system is available with two different knuckle designs. The standard knuckle widens the track width, but does not affect the turning radius. The narrow track knuckle reduces the total track width change by about 1.5" overall but does increase the turning radius slightly.
Features:
Specifications:
Fitment:
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function..
This system is available with two different knuckle designs. The standard knuckle widens the track width, but does not affect the turning radius. The narrow track knuckle reduces the total track width change by about 1.5" overall but does increase the turning radius slightly.
Features:
- High Clearance design w/ no torsion bar drop maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
- Choice of NX2 or FOX 2.0 gas shocks for improved performance
- NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
- Leaf Springs
- Eliminates any need for a lift block.
- Reduces axle wrap and creates a more controlled and stable feel.
- Multi-leaf progressive design for a smooth ride.
- Maintains factory payload weight ratings.
Specifications:
- Front Lift Method : Cross-Member
- Front Lift Height : 7"
- Rear Lift Method : Leaf Spring
- Rear Lift Height : 5"
- Shocks Included : Yes
- Lift Height : 6-7.5"
- Recommended Tires & Wheels (Trimming may be required):
- 35 x 12.5 with and 4.5 in. Backspace
- 35 x 12.5 with and 5.5 in. Backspace
- 35 x 12.5 with and 5.75 in. Backspace
Fitment:
- Chevrolet Silverado?2500HD/3500 4WD 2001-2010
- GMC Sierra 2500HD/3500 4WD 2001-2010
Other Part Numbers:
BDS Suspension #BDS190H-BLDV
Proposition 65
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
| Vehicle Make/Model | Year | Trims |
|---|---|---|
| Chevrolet Avalanche 2500 | 2002-2004 | Base |
| Chevrolet Avalanche 2500 | 2005-2006 | LT |
| Chevrolet Avalanche 2500 | 2005-2006 | LS |
| Chevrolet Silverado 1500 HD | 2001-2003, 2005-2006 | LT |
| Chevrolet Silverado 1500 HD | 2001-2003, 2005 | LS |
| Chevrolet Silverado 1500 HD | 2005 | Base |
| Chevrolet Silverado 2500 | 2001-2004 | LS |
| Chevrolet Silverado 2500 | 2001-2010 | Base |
| Chevrolet Silverado 2500 | 2001-2002 | Custom |
| Chevrolet Silverado 2500 | 2001-2004 | LT |
| Chevrolet Silverado 2500 | 2001-2005 | 400 SS |
| Chevrolet Silverado 2500 | 2001-2002, 2007 | Cheyenne |
| Chevrolet Silverado 2500 | 2004 | WT |
| Chevrolet Silverado 2500 HD | 2001-2005 | Base |
| Chevrolet Silverado 2500 HD | 2001-2010 | LT |
| Chevrolet Silverado 2500 HD | 2001-2006 | LS |
| Chevrolet Silverado 2500 HD | 2003-2010 | WT |
| Chevrolet Silverado 2500 HD | 2007-2010 | LTZ |
| Chevrolet Silverado 2500 HD Classic | 2007 | LS |
| Chevrolet Silverado 2500 HD Classic | 2007 | WT |
| Chevrolet Silverado 2500 HD Classic | 2007 | LT |
| Chevrolet Silverado 3500 | 2001-2004, 2006 | HD |
| Chevrolet Silverado 3500 | 2001-2006 | LT |
| Chevrolet Silverado 3500 | 2001-2010 | Base |
| Chevrolet Silverado 3500 | 2001-2006 | LS |
| Chevrolet Silverado 3500 | 2004, 2006 | WT |
| Chevrolet Silverado 3500 Classic | 2007 | LT |
| Chevrolet Silverado 3500 Classic | 2007 | LS |
| Chevrolet Silverado 3500 Classic | 2007 | WT |
| Chevrolet Silverado 3500 HD | 2007-2010 | LTZ |
| Chevrolet Silverado 3500 HD | 2007-2010 | LT |
| Chevrolet Silverado 3500 HD | 2007-2010 | WT |
| Chevrolet Suburban 2500 | 2006 | LT |
| Chevrolet Suburban 2500 | 2006 | LS |
| GMC Sierra 1500 HD | 2001-2003, 2005-2006 | SLE |
| GMC Sierra 1500 HD | 2001-2003, 2005-2006 | SLT |
| GMC Sierra 2500 | 2001-2004 | SLE |
| GMC Sierra 2500 | 2001-2004 | SLT |
| GMC Sierra 2500 | 2001-2002 | SL |
| GMC Sierra 2500 | 2002-2004 | Base |
| GMC Sierra 2500 | 2003-2004 | WT |
| GMC Sierra 2500 HD | 2001-2010 | SLE |
| GMC Sierra 2500 HD | 2001-2002, 2006 | SL |
| GMC Sierra 2500 HD | 2001-2010 | SLT |
| GMC Sierra 2500 HD | 2002-2005 | Base |
| GMC Sierra 2500 HD | 2003-2010 | WT |
| GMC Sierra 3500 HD | 2007-2010 | SLE |
| GMC Sierra 3500 HD | 2007-2010 | SLT |
| GMC Sierra 3500 HD | 2007-2010 | WT |
