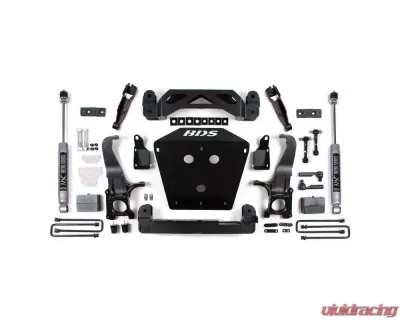

BDS steps up the performance and capability of the 2016-2021 Toyota Tundra trucks with 7 inch lift kit suspension system. Get the tire clearance and attitude you're looking for with the 7 inch Lift Kit Suspension System for your Toyota Tundra. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.These specially designed 1/4" thick laser cut high clearance crossmembers to maximize clearance and provide a solid mounting point for the OE lower control arms. These paired with the heavy duty front skid plate system create a rigid subframe while adding protection for vital steering and driveline components.The steering knuckles are critical to setting your lifted truck up right. While taller for the additional lift height, these arms dwarf the factory units to allow additional strength with ductile iron castings, CNC- machined for a precision fit. The steering tie rod mount is relocated to mimic original steering geometry for ESC system compatibility.
Features:
Specifications:
Fitment:
Note:
Features:
- High clearance design maximizes ground clearance.
- Robust steering knuckles maintain ESC system compliance.
- Full width belly skidplate for added protection.
- Allows fitment of up to 37" tires with 7" systems.
- Choice of FOX 2.0 Performance or NX2 Nitro shocks for improved capability.
- NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
Specifications:
- Front Lift Method : Cross-Member
- Front Lift Height : 7"
- Rear Lift Method : Block
- Rear Lift Height : 4"
- Shocks Included : Yes
- Lift Height : 6-7.5"
- Recommended Tires & Wheels (Trimming may be required):
- 35 x 12.5 with 18 x 9 and 5.5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5.5 in. Backspace
- 37 x 12.5 with 20 x 9 and 6.25 in. Backspace
Fitment:
- Toyota Tundra 2WD/4WD 2016-2021
Note:
- Requires frame bracket modification and welding.
- No strut dissassembly required.
- Stock 18 inch wheels can not be installed. factory 20 inch wheels with more than 6.25 inch backspacing can not be installed.
- Models with two piece rear drive line would require rear drive shaft modification.
- Models equipped with 6 piston calipers will require clearance machining on the caliper near the bolt holes on the mounting surface.
- Will NOT work on TRD Pro (Bilstein anf Fox Piggback Strut) models.
Other Part Numbers:
BDS Suspension #BDS818H-BLDV
Proposition 65
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
| Vehicle Make/Model | Year | Trims |
|---|---|---|
| Toyota Tundra | 2016-2021 | SR |
| Toyota Tundra | 2016-2021 | SR5 |
| Toyota Tundra | 2016-2021 | Platinum |
| Toyota Tundra | 2016-2017, 2019-2021 | TRD Pro |
| Toyota Tundra | 2016-2021 | 1794 Edition |
| Toyota Tundra | 2016-2021 | Limited |
| Toyota Tundra | 2018-2021 | 1794 |
| Toyota Tundra | 2020-2021 | TRD Off-Road |
| Toyota Tundra | 2020-2021 | Base |
| Toyota Tundra | 2020 | TRD Sport |
| Toyota Tundra | 2021 | Nightshade |
| Toyota Tundra | 2021 | TRD Sport Premium |
| Toyota Tundra | 2021 | Trail |
| Toyota Tundra | 2021 | TRD Off-Road Premium |
