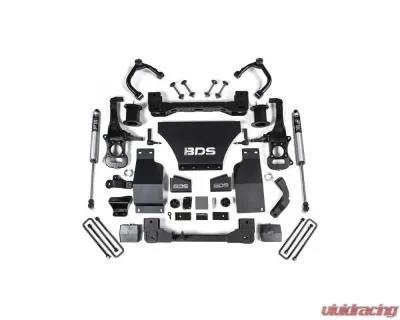

BDS steps up the performance and capability of the Chevy Silverado and GMC Sierra 1500 trucks with 6-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers a heavy duty lift block. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Features:
Specifications:
Fitment:
Note:
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers a heavy duty lift block. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Features:
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- High-strength replacement upper control arms provide durability and serviceability
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
- Strut Spacer Front Shock
- Made from heavy-duty steel that guarantees its durability
- Maintains factory like ride quality
- Fast and Easy to install
- FOX 2.0 Performance Series Rear Shock
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Specifications:
- Front Lift Method : Cross-Member
- Front Lift Height : 6
- Rear Lift Method : Block
- Rear Lift Height : 4"
- Shocks Included : Yes
- Lift Height : 6-7.5"
- Recommended Tires & Wheels (Trimming may be required):
- 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
- 35 x 12.5 with 20 x 9 and 6.25 in. Backspace
- 37 x 12.5 with 20 x 9 and 6.25 in. Backspace
Fitment:
- Chevrolet Silverado 1500 4WD Gas 2019-2025
- GMC Sierra 1500 4WD Gas 2019-2025
Note:
- Requires frame bracket modification.
- Factory 17-18 inch wheels cannot be reinstalled due to tie rod end interference, stock 20 inch wheels can be reinstalled
- 17 inch wheels with 4.5 inch backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle / tie rod
- All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition
- Actual ride height on coilover kits is closer to 6.5 inch of lift
- 2.7L models use diesel kit for proper skid plate fitment
- If equipped with a mono-leaf rear spring please use part #UBT4064 (Qty 4 required).
- 2.7L Turbo models use Diesel kit for proper skid plate fitment.
- Will not fit models equipped with ARC
Other Part Numbers:
BDS Suspension #BDS1801FS-BLDV
Proposition 65
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
| Vehicle Make/Model | Year | Trims |
|---|---|---|
| Chevrolet Silverado 1500 | 2019-2020 | WT Doble Cabina |
| Chevrolet Silverado 1500 | 2019-2025 | WT |
| Chevrolet Silverado 1500 | 2019-2025 | LT |
| Chevrolet Silverado 1500 | 2019-2025 | High Country |
| Chevrolet Silverado 1500 | 2019-2025 | RST |
| Chevrolet Silverado 1500 | 2019-2025 | Custom Trail Boss |
| Chevrolet Silverado 1500 | 2019-2025 | LT Trail Boss |
| Chevrolet Silverado 1500 | 2019-2025 | Custom |
| Chevrolet Silverado 1500 | 2019-2020 | WT Cab Regular |
| Chevrolet Silverado 1500 | 2019-2025 | LTZ |
| Chevrolet Silverado 1500 | 2019-2021 | SSV |
| Chevrolet Silverado 1500 | 2022-2025 | ZR2 |
| Chevrolet Silverado 1500 | 2023-2025 | PPV |
| Chevrolet Silverado 1500 LD | 2019 | WT |
| Chevrolet Silverado 1500 LD | 2019 | LT |
| Chevrolet Silverado 1500 LD | 2019 | Custom |
| Chevrolet Silverado 1500 LTD | 2022 | RST |
| Chevrolet Silverado 1500 LTD | 2022 | Custom |
| Chevrolet Silverado 1500 LTD | 2022 | Custom Trail Boss |
| Chevrolet Silverado 1500 LTD | 2022 | WT |
| Chevrolet Silverado 1500 LTD | 2022 | LT Trail Boss |
| Chevrolet Silverado 1500 LTD | 2022 | LT |
| Chevrolet Silverado 1500 LTD | 2022 | LTZ |
| Chevrolet Silverado 1500 LTD | 2022 | High Country |
| Chevrolet Silverado 1500 LTD | 2022 | SSV |
| Chevrolet Silverado 1500 Nueva | 2022 | Custom |
| Chevrolet Silverado 1500 Nueva | 2022 | Base |
| GMC Sierra | 2019-2025 | AT4 |
| GMC Sierra | 2019-2025 | Denali |
| GMC Sierra | 2019, 2021-2023 | SLE |
| GMC Sierra | 2020, 2024-2025 | Regular |
| GMC Sierra | 2020 | AT4 CarbonPro |
| GMC Sierra | 2023-2025 | Denali Ultimate |
| GMC Sierra 1500 | 2019-2025 | AT4 |
| GMC Sierra 1500 | 2019-2025 | Elevation |
| GMC Sierra 1500 | 2019-2025 | Denali |
| GMC Sierra 1500 | 2019-2021 | Base |
| GMC Sierra 1500 | 2019-2025 | SLT |
| GMC Sierra 1500 | 2019-2025 | SLE |
| GMC Sierra 1500 | 2022-2025 | Pro |
| GMC Sierra 1500 | 2022-2025 | AT4X |
| GMC Sierra 1500 | 2022-2025 | Denali Ultimate |
| GMC Sierra 1500 Limited | 2019 | Base |
| GMC Sierra 1500 Limited | 2019, 2022 | SLE |
| GMC Sierra 1500 Limited | 2022 | Pro |
| GMC Sierra 1500 Limited | 2022 | Elevation |
| GMC Sierra 1500 Limited | 2022 | AT4 |
| GMC Sierra 1500 Limited | 2022 | Denali |
| GMC Sierra 1500 Limited | 2022 | SLT |
| GMC Sierra 2500 HD | 2019-2021 | Base |
| GMC Sierra 2500 HD | 2019-2025 | SLT |
| GMC Sierra 2500 HD | 2019-2025 | Denali |
| GMC Sierra 2500 HD | 2019-2025 | SLE |
| GMC Sierra 2500 HD | 2020-2025 | AT4 |
| GMC Sierra 2500 HD | 2022-2025 | Pro |
| GMC Sierra 2500 HD | 2024-2025 | AT4X |
| GMC Sierra 2500 HD | 2024-2025 | Denali Ultimate |
| GMC Sierra 3500 HD | 2019-2025 | Denali |
| GMC Sierra 3500 HD | 2019-2021 | Base |
| GMC Sierra 3500 HD | 2019-2025 | SLT |
| GMC Sierra 3500 HD | 2019-2025 | SLE |
| GMC Sierra 3500 HD | 2020-2025 | AT4 |
| GMC Sierra 3500 HD | 2022-2025 | Pro |
| GMC Sierra 3500 HD | 2024-2025 | Denali Ultimate |
| GMC Sierra Nueva | 2022 | SLE |
| GMC Sierra Nueva | 2022 | AT4 |
| GMC Sierra Nueva | 2022 | Denali Ultimate |
| GMC Sierra Nueva | 2022 | Denali |
