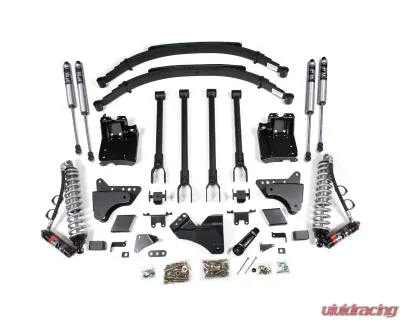

Go farther and raise the bar of performance on your 2011-2016 Ford Super Duty F250 and F350 diesel truck to the next level with this 6-inch radius arm lift kit with 4-link and FOX Performance Elite coil-over conversion from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.
Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, heavy-duty 4-link control arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned secondary FOX 2.0 shocks.
In the rear this kit utilizes a replacement GlideRide leaf springs with integrated overload leaf, u-bolts, brake line brackets and a matching set of FOX 2.0 Performance shocks.
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
This lift system retains the factory rear blocks with the addition of the new BDS leaf springs to achieve a level stance. Choose the height of your factory lift blocks for proper u-bolt length.
Features:
Specifications:
Fitment:
Note:
Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, heavy-duty 4-link control arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned secondary FOX 2.0 shocks.
In the rear this kit utilizes a replacement GlideRide leaf springs with integrated overload leaf, u-bolts, brake line brackets and a matching set of FOX 2.0 Performance shocks.
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
This lift system retains the factory rear blocks with the addition of the new BDS leaf springs to achieve a level stance. Choose the height of your factory lift blocks for proper u-bolt length.
Features:
- FOX 2.5 Coil-Over mounts in factory coil bucket location
- Adds additional secondary FOX 2.0 shock for max performance
- Eibach coil springs ride smooth through the roughest terrain
- Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide level stance from front to rear
- FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
- FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Specifications:
- Front Lift Method : Coil Spring
- Front Lift Height : 6
- Rear Lift Method : Leaf Spring
- Rear Lift Height : 3"
- Shocks Included : Yes
- Lift Height : 6-7.5"
- Recommended Tires & Wheels (Trimming may be required):
- 37 x 12.5 with 17 x 9 and 4.5 in. Backspace
- 37 x 12.5 with 18 x 9 and 4.5 in. Backspace
- 37 x 12.5 with 20 x 9 and 4.5 in. Backspace
Fitment:
- Ford F250/F350 Super Duty 4WD Diesel 2011-2016
Note:
- Front exhaust modification may be required to clear front drive shaft (gas only).
- If equipped with 2-piece driveshaft, a driveshaft alignment kit may be required.
- Although extremely rare, front driveline vibration may occur.
- If equipped with rear sway bar, #123009 required.
- U-bolts will not work on dually.
Other Part Numbers:
BDS Suspension #BDS596FPE-BLDV
