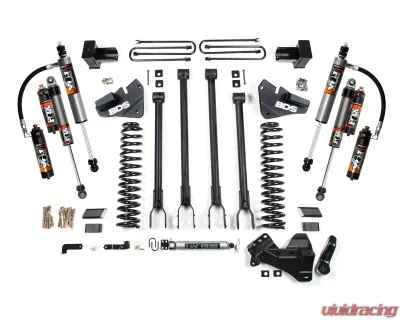

BDS Suspension 5 Inch Lift Kit with 4-Link | 4 Inch Block Kit | FOX 2.5 Performance Elite Series Shock Ford F250 | F350 Super Duty 4WD Diesel 2020-2022 - BDS1998FPE
Raise the height of your Ford Super Duty diesel powered truck with this 5-inch lift kit and 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.



Features:
  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
  • FOX 2.5 Performance Elite Series
    • Increased off-road capabilities
    • Easily adjust your shock for terrain, load and speed
    • 2.5-inch Impact extruded aluminum body
    • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
    • External reservoir design separates shock oil from the high-pressure nitrogen
    • DSC - Dual Speed Compression Adjuster comes standard
    • Fully serviceable for a lifetime of use
    • 1-year Manufacturer's Warranty
  • 4 Inch Block Kit
    • Included in the base system.
    • Made of cast iron for high strength.
    • Designed to provide correct pinion angles.


Specifications:
  • Front Lift Method : Coil Spring
  • Front Lift Height : 5"
  • Rear Lift Method : Block
  • Rear Lift Height : 4"
  • Shocks Included : Yes
  • Lift Height : 4-5.5"
    • ?
  • Recommended Tires & Wheels (Trimming may be required):
    • 37 x 12.5 with 17 x 9 and 5 in. Backspace
    • 37 x 12.5 with 18 x 9 and 5 in. Backspace
    • 37 x 12.5 with 20 x 9 and 5 in. Backspace


Fitment:
  • Ford F250/F350 Super Duty 4WD Diesel 2020-2022


Note:
  • Ford recommends the replacement of the pitman arm nut after each time it has been removed.
  • If installed on a truck with a top-mounted overload spring, with an overload spacer block taller than 1-1/8 inch UBT4027 (Qty: 4) is required.
  • Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
  • If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
  • Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final ride height will be the same as standard models.
  • Larger tires on the stock wheel are not recommended due to the brake line clearance required. Use recommended specs listed in the wheel and tire fitment section.
  • Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
  • Installation requires a torque wrench capable of 405 ft-lbs.
  • Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, BDS recommends having this performed prior to installing the lift.
  • Fits SRW models only.

Other Part Numbers:
BDS Suspension #BDS1998FPE-BLDV
