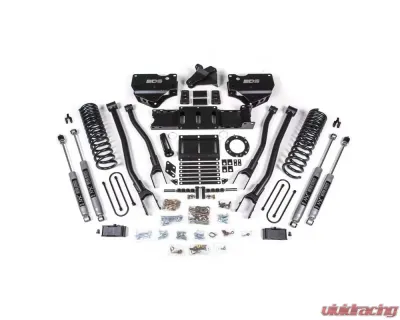

BDS Suspension 4 Inch Lift Kit with 4-Link NX2 Nitro Series Shock Ram 3500 4WD Gas 2019-2023 - BDS1676H
Raise your RAM 3500 gas powered truck to the next heights with this 4-inch lift kit with 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.



Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arms and conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.



Features:
  • Heavy duty 4-link arms improve strength, handling and caster control
  • High strength progressive rate coil springs for a great ride on any terrain
  • Track bar relocation brackets to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
  • NX2 Nitro Series
    • Nitrogen-charged
    • Twin-tube design
    • 10-stage velocity-sensitive valving
    • Dual-welded ends for increased strength
    • 1-3/8-inch high-flow piston
    • Self-lubricating seals
    • Silver powder coat finish


Specifications:
  • Front Lift Method : 4-Link
  • Front Lift Height : 4"
  • Rear Lift Method : Block
  • Rear Lift Height : 3"
  • Shocks Included : Yes
  • Lift Height : 4-5.5"


Fitment:
  • Ram 3500 4WD Gas 2019-2023


Note:
  • A DEF tank relocation bracket(part# 122409) is required for this kit to work with Dually or Mega Cab Models with Aisin Transmissions (8-bolt).
  • Exhaust modification is required to clear the front driveshaft. The vehicle can be driven w/o a front driveshaft to an exhaust shop.
  • Vehicles equipped with a Manual T-case, requires BDS122422 Manual transfer case shifter extension.
  • Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.

Other Part Numbers:
BDS Suspension #BDS1676H-BLDV

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Vehicle
2019-2024
 Ram 3500
