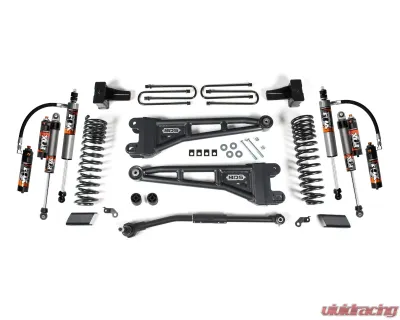

BDS Suspension 2.5 Inch Lift Kit with Radius Arm | FOX 2.5 Performance Elite Series Shock Ford F450 Super Duty 4WD 2020-2022 - BDS2219FPE
Level out and take your Ford F450 Super Duty diesel or gas powered truck with this 2.5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

A pair of full-length, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8" solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.



Features:
  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs ride smooth through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Adjustable solid steel track bar designed to recenter the front axle
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
  • FOX 2.5 Performance Elite Series
    • Increased off-road capabilities
    • Easily adjust your shock for terrain, load and speed
    • 2.5-inch Impact extruded aluminum body
    • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
    • External reservoir design separates shock oil from the high-pressure nitrogen
    • DSC - Dual Speed Compression Adjuster comes standard
    • Fully serviceable for a lifetime of use
    • 1-year Manufacturer's Warranty


Specifications:
  • Front Lift Method : Coil Spring
  • Front Lift Height : 3
  • Rear Lift Method : Block
  • Rear Lift Height : 1"
  • Shocks Included : Yes
  • Lift Height : 2-3.5"
    • ?
  • Recommended Tires & Wheels (Trimming may be required):
    • 35 x 12.5 with and in. Backspace


Fitment:
  • Ford F450 Super Duty 4WD Diesel & Gas 2020-2022


Note:
  • Designed for use on diesel models, but can be installed on gas model trucks (will achieve an additional 1/2 inch front ride height).
  • Larger tires on stock wheels are not recommended due to brake line clearance required.
  • Installation requires a torque wrench capable of 405 ft-lbs.

Other Part Numbers:
BDS Suspension #BDS2219FPE-BLDV
