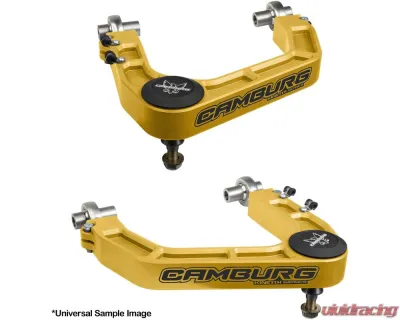

Camburg CAM-110250-GLD Suspension Control Arm Kit

The Camburg CAM-110250-GLD is a high-performance suspension control arm kit specifically designed for the Ford Ranger models from 2019 to 2023. This kit is engineered to provide enhanced stability, precision, and durability for both on-road and off-road applications.

Construction and Design

Crafted from aerospace-grade 6061-T6 billet aluminum, these control arms undergo CNC machining to ensure a precise fit and finish. The arms are then bead blasted and Type II anodized in a striking gold finish, complete with a laser-etched Camburg logo. This construction not only enhances aesthetics but also provides superior resistance to corrosion and wear.

Performance Features

• Improved Handling: The CAM-110250-GLD control arms are designed to significantly enhance handling and steering response, making them a substantial upgrade over factory components.
• Increased Wheel Travel: Featuring a larger FK 1.25" uniball with a PTFE liner, these arms allow for maximum usable wheel travel while reducing flex and deflection during aggressive driving.
• Robust Spindle Adaptation: The uniball is adapted to the spindle using model-specific spacers made from heat-treated stainless steel, ensuring a precise fit without the need for drilling or modifications.
• Adjustable Camber and Caster: Equipped with FK 7/8" chromoly heim joints, these control arms allow for additional camber and caster adjustments, catering to specific alignment needs.

Installation Details

• Installation Type: Bolt-on installation is straightforward, although basic automotive knowledge is recommended. Professional installation is advised for optimal results.
• Included Hardware: Camburg provides high-quality hardware for secure installation, allowing for the reuse of original equipment hardware where necessary.

View Installation Instructions

Specifications

• Adjustable: Yes
• Ball Joint Included: Yes
• Bushing Material: 4130 Chromoly
• Bushings Included: Yes
• Control Arm Color: Gold
• Control Arm Construction: CNC Machined
• Control Arm Material: 6061-T6 Billet Aluminum
• Grade Type: Performance
• Mounting Hardware Included: Yes
• Position: Upper
• Aftermarket Coilovers Accepted: Compatible with most aftermarket coilovers
• Lift Compatibility: Designed for 1 to 3 inches of lift

Fitment

• Ford Ranger: 2019-2023

Important Note

When upgrading to the CAM-110250-GLD control arms, be mindful that adjustments may be necessary based on wheel size, offset, tire size, and suspension specifics. Trimming of plastic inner fenders or modification of body mounts may be required to prevent tire rubbing.
