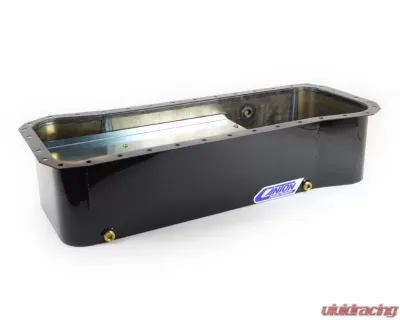

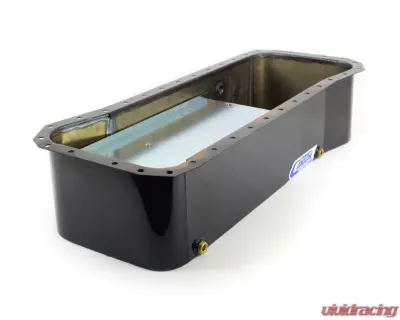

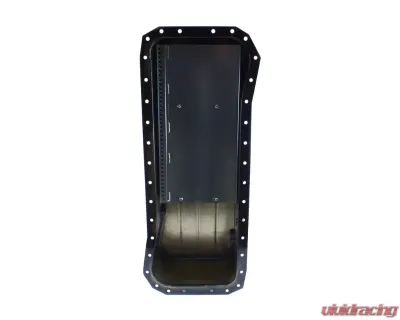

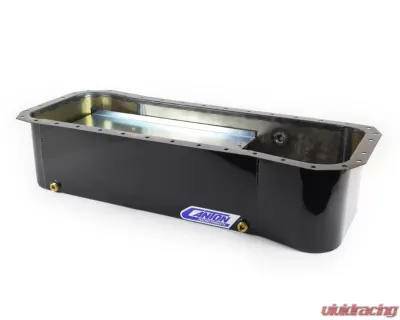

This 5.9 Cummins high capacity oil pan is a multi-application oil pan for Truck/Marine/Industrial/Open Chassis that require a larger capacity than the stock 5.9 oil pan. This oil pan is 7" deep, 10" wide at the center, and 30-1/4" long and has a oil capacity of 20qts. This oil pan features a symmetrical bolt pattern which allows for front and rear pickup mounting. It includes double trap door baffles and slosh tray for superior oil control. 1/2" NPT turbo drain backs are on both sides of the oil pan as well as 1/2" NPT drain bungs at all four corners. The oil pan also includes a 1/4" NPT provision for a Canton dipstick. The finish of the pan is black powdercoat and built from 14 gauge steel for long lasting durability. Pickups required for this oil pan are 18-945 for front sump applications and 18-946 for rear sump applications.
Features:
- Deep Flat bottom pan, 10" wide at center x 30-1/4" Longl
- 20qt Capacityl
- Symmetrical bolt pattern allows for front or rear oil pickup mountingl
- Double trap door baffles and slosh tray for oil controll
- 1/2" NPT turbo drain back ports on both sides of the oil panl
- 1/2" NPT Drain bungs on all four corners of the oil panl
- *Canton Dipstick Provisionl
- 14 Gauge Tig Welded Steell
- Black Powder Coat Finishl
- Use 18-945 for front scavenge pickup tubel
- Use 18-946 for rear scavenge pickup tubel
Canton Racing Products has been building oil pans and engine related products for racing and high performance applications since 1981. They began in a small Connecticut garage building specialty oil pans for local auto racers. The unique oil pans provided racers with the power and quality they demanded. As popularity for the specialty oil pans grew so did their selection of products. Today they offer a wide range of high performance products for racing and the street. Their production process focuses on accuracy and reliability. Every product we make is built with the same production and quality assurance methods that we use when building parts for Ford, Roush, and Mopar.All products are tig welded, rather then mig welded. The tig welding process takes more time and skill but ensures more even heat and penetration through out the welding process. This result is better quality welds with less possibility for leaks and cracks. Every oil pan, valve cover, and tank that we produce under goes several leak tests. Canton Racing Products oil pans and valve covers are fitted on blocks or heads several times through out the production process to ensure they easily install on their application.
LIMITED WARRANTY:
This limited warranty applies to any product which, after careful inspection by Canton Racing Products, Inc., is found to have a defect in either material or workmanship. Canton Racing Products, Inc. warrants that when our products are properly installed in their correct application they will be free from defect. Any product returned for warranty must be returned to Canton Racing Products, Inc. within 1 year of purchase. All returns must include the original sales slip or proof of purchase, detailed information regarding the problem, your name, address and phone number.
If returned product is found by Canton Racing Products, Inc. to be defective in either material or workmanship, Canton Racing Products, Inc. will either repair or replace the product at its discretion and its sole cost.
This limited warranty DOES NOT cover or apply to any personal injury, labor charges or apply to products that have been:- Damaged in transit, subject to abuse, neglect, accident or improper installation.
- Altered or modified outside of Canton Racing Products, Inc. specifications.
- Used in other than those applications recommended by Canton Racing Products.
This limited warranty is the only express warranty which applies to Canton Racing Products, Inc. and is expressly given in lieu of any other warranty expressed or implied. Other Warranties including that of merchantability and/or fitness for a particular purpose is hereby expressly disclaimed. This limited warranty gives you specific legal rights and you may also have other rights which vary from state to state.
Except for those obligations assumed herein, Canton Racing Products, Inc. assumes no other obligations in connection with the sale of its products.
Canton Racing Products, Inc. reserves the right to change specifications at any time. The changes will be made without obligation to change any products previously manufactured. Canton Racing Products, reserves the right to change prices at any time.
Products are designed for general applications. No guarantees are made regarding product fitment, results, or suitability in any particular application. Purchaser is responsible for determining products suitability for their particular situation and for taking all proper precautions to protect self, others, and personal property.
