The Backcountry on steroids, take the description for the Backcountry and throw an exponent on it. This system is our most popular, all around suspension system. The on-road ride is terrific, sharp edges are rounded and light to medium duty offroad escapades become completely controlled and uneventful. Most Carli videos were filmed with the Pintop kit showcasing the extremes of its capability.

The Pintop is a Jack-of-all-trades system from which every Super Duty owner would benefit. Raising the Super Duty Platform then adding the 2.5in diameter shocks (55% more piston surface area than a 2.0in shock) will support the argument that these trucks should come equipped with 2.5in shocks from the factory. The higher end systems will get you more off-road capability, yes, and even a bit more on-road. The premium paid for these systems; however, doesn't compare to the on and off-road ride quality per dollar spent on the Pintop. For these reasons, it will likely remain our best seller for years to come.

The Pintop system boasts Carli specific, blueprinted, King 2.5in shocks on all four corners. In an effort to provide customers with the best product, we designed a custom piston to determine proper base flow rates to ensure the shock works well in the heavy duty truck platform; we then tuned the shocks around the custom pistons based on the only thing that matters to us, seat-of-the-pants feel. We round off ALL our King shocks with shafts machined and polished from a solid piece of 17-4 Stainless. Unlike King's standard shafts, there is no coating to wear off, weather can't hurt them and if there is a small chip, you can round the edges with emery cloth to ensure the seal housing isn't damaged as they're not brittle like the stock, hardened shafts. The shocks are finished with King oil good to -55° F. Note that all King shocks are built with a plated steel body. If subjected to inclement weather for extended periods, we recommend wrapping your shocks in 3M to provide a moisture barrier that's replaceable.

The truck will sit 3.0in higher in the front and have more wheel travel thanks to the lighter rate Carli Coil Springs. The Adjustable Track Bar centers the front axle and Stainless Brake Lines firm up braking and ensure there is enough line for the newfound travel. To round off the front end, we include Radius Arm Drop Brackets & 1° Caster Shims to correct caster and provide proper tracking. A fabricated, High-Clearance Bump Stop Drop to keep the springs clear from the contacting the factory bump stop.

The front Sway Bar Geometry will need to be addressed with your choice of a Sway Bar Drop Bracket (more economical, maintains the factory Sway Bar End Links) or our Extended Sway Bar links with relocation brackets - a FAR more robust option. For those seeking the most possible ride quality, we offer our full replacement Torsion Sway Bar that lightens the most neglected spring rate - the factory sway bar. From the Torsion Sway bar upgrade, one can expect a far more compliant feel and increased articulation with only slightly more body roll. The replacement End Links and Torsion Sway Bar are the only options compatible with a snow-plow bracket.

The rear can be outfitted with a replacement Full Progressive Spring Pack (reduces capacity to a "light" 3/4-ton) or factory leaf-pack modifying Progressive Add-a-Pack (eliminates the factory block and maintains payload capacity; pairs with a rear bump stop drop). This is where the F250 and F350 are a bit different. Since 2008, the main spring packs on these two trucks is different; the F250 has a lighter rate spring pack (2 main leaf springs) than its 350 counterpart (3 main leaf springs). The F250 Add-a-Pack equipped systems are a nice improvement over stock; the F350 with the Add-a-Pack is still very stiff in the rear as the main pack doesn't move much unless loaded. We recommend the Full Replacement Leaf Spring packs for both trucks but especially the F350 given the super-stiff factory springs. If you own an F250 built with the Tremor or high-capacity tow package, these are equipped with an F350 rear spring and should avoid the add-a-pack, as well. If capacity is a concern, an aftermarket airbag system should be installed to complement the Full Progressive Leaf Springs to restore the F350 capacity. We recommend a system that will allow the airbags to disconnect from the lower mount during suspension cycling to ensure you're able to take advantage of all your rear suspension travel. The Full Progressive Leaf Spring Pack will shift the axle slightly forward in the wheel well to ensure maximum tire clearance for a 37in M/T at full compression.

Wheel and Tire: Factory Wheels Should Not be run with oversized tires. They're known to rub the radius arm, sway bar and most concerning - Brake Lines. Factory tires and factory wheels will work without issue but we DO NOT recommend running oversized tires on factory wheels. On our 2.5in Ford Systems, we recommend 17in-18in wheels, no more than 9in wide with 5.5in of backspacing with Carli Fabricated Radius Arms or 5in Backspace with factory arms; 5in will require a bit more trimming. Tires, 37x12.5in will fit with some trimming; 35in will likely fit without trimming. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter.



Features:

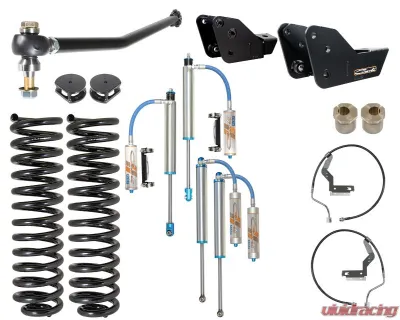

• Base Kit Includes:
  • CS-FLC-11-GAS - Front Leveling Coils
  • CS-FPT25SPKG-LVL-11-GAS - Carli Custom Tuned King 2.5in Remote Reservoir Shocks, Front and Rear with Stainless Shafts & Reservoir Mounts
  • CS-FORDBBL-LVL-17-F - Front Brake Lines
  • CS-FCASTERSHIM-45 - 1° Caster Shims
  • CS-FBDF-25-17 - High Clearance Bump Stop Drops, Front
  • CS-FATB-17 - Track Bar
  • CS-FRAD-LVL-23 - Radius Arm Drops, LVL

Specifications:

• F250/350 Lift Height: 3.5in
  • Front Travel: 9.0in
  • Shock Type 2.5in Remote Reservoir
• Tremor Lift Height: 1in
  • Rear Travel: 12in
  • Tire Fitment: 37inx12.5in


Fitments:
• Ford F-250 | F-350 4X4 7.3L Gas (3in Lift) 2023-2024
• Ford F-250 | F-350 7.3L Gas Tremor (1in Lift) 2023-2024


Note:
• Our Systems are not compatible with the Onboard/Smart Hitch. Modifying the ride height or spring rate will interfere with this system's performance.
