The COBB Tuning Air/Oil Separator (AOS) is an essential upgrade for Subaru WRX models from 2015 to 2021. Designed to optimize the crankcase ventilation system, this AOS effectively prevents oil vapors from entering the intake system, which can degrade performance and efficiency over time.

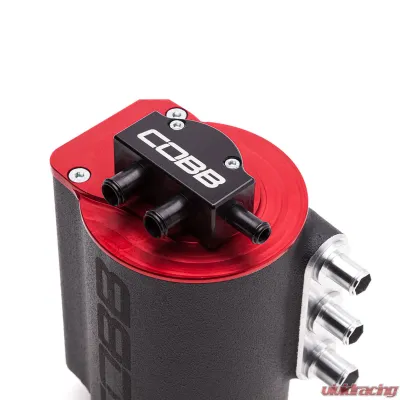

The Subaru FA engine's design includes three vent ports for crank pressure—one on each cylinder head and one on the top of the block. Each port connects to the AOS, allowing for faster and more effective crankcase pressure management, ultimately reducing overall system pressure. With a diameter of 4 inches and a height of 5.75 inches, the AOS provides ample capacity to handle oil without the risk of overfilling.

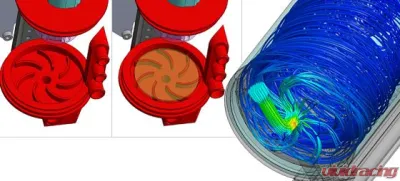

The innovative snail-shaped bottom design redirects positive crank pressure into a swirling pattern, enhancing oil drainage while efficiently separating oil from air across all venting ports.

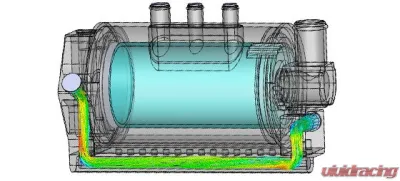

The back plate of the AOS features a specialized coolant routing system that ensures the unit maintains the same temperature as the engine. This design maximizes the evaporation of moisture that may accumulate inside the can, preventing water from mixing with the oil and maintaining optimal performance.
For detailed installation instructions, please visit the COBB Tuning Documentation.
By integrating the COBB Tuning Air/Oil Separator into your Subaru WRX, you can significantly improve engine longevity and performance, ensuring your vehicle runs smoothly and efficiently.
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
| Vehicle Make/Model | Year | Trims |
|---|---|---|
| Subaru WRX | 2015-2021 | Premium |
| Subaru WRX | 2015-2021 | Limited |
| Subaru WRX | 2015-2016 | STI |
| Subaru WRX | 2015-2021 | Base |
| Subaru WRX | 2017-2021 | Sport |
| Subaru WRX | 2017-2021 | Sport-tech |
| Subaru WRX | 2018-2021 | CVT |
| Subaru WRX | 2018-2021 | 6 Man |
| Subaru WRX | 2019 | Raui Edition |
| Subaru WRX | 2019-2020 | Sport-tech RS |
| Subaru WRX | 2021 | EyeSight |
