CSF A90 Supra / BMW B58 Charge-Air Cooler Manifold - Thermal Black Finish - 8200B
CSF A90 Supra / BMW B58 Charge-Air Cooler Manifold - Thermal Black Finish - 8200B - Image 6 CSF A90 Supra / BMW B58 Charge-Air Cooler Manifold - Thermal Black Finish - 8200B - Image 2 CSF A90 Supra / BMW B58 Charge-Air Cooler Manifold - Thermal Black Finish - 8200B - Image 3 CSF A90 Supra / BMW B58 Charge-Air Cooler Manifold - Thermal Black Finish - 8200B - Image 4 CSF A90 Supra / BMW B58 Charge-Air Cooler Manifold - Thermal Black Finish - 8200B - Image 5 CSF A90 Supra / BMW B58 Charge-Air Cooler Manifold - Thermal Black Finish - 8200B - Image 6

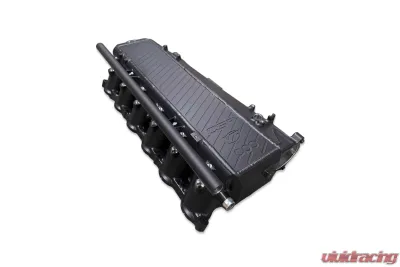

CSF 8200B Charge-Air Cooler Manifold

The CSF 8200B Charge-Air Cooler Manifold is engineered for the B58 platform, specifically designed to enhance the performance of the Mk5 Supra and select BMW models. This CNC-machined, high-performance manifold addresses the limitations of the OEM system, particularly under demanding conditions.

Key Features

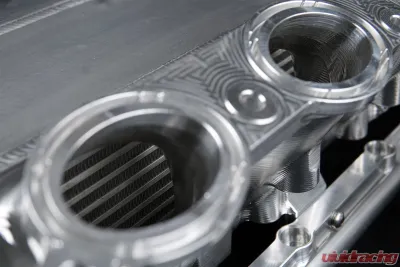

  • Constructed with a high-performance, motorsports-grade bar/plate air-to-water intercooler core.

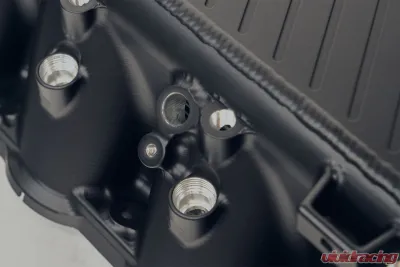

  • Features individual port injection bungs pre-plugged on each cylinder runner, allowing for easy integration of aftermarket fueling solutions.

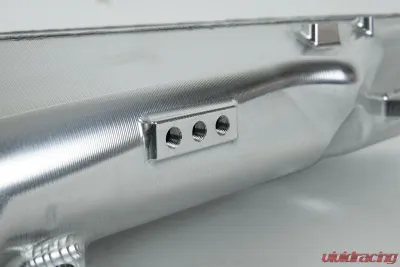

  • Includes 1/8" NPT ports on the top of each runner for nitrous or methanol injection, optimizing spray distribution for enhanced performance.

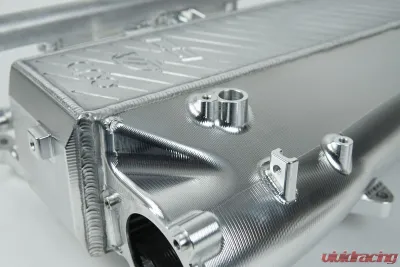

  • Integrated breather ports facilitate easy air-bleeding of the system, ensuring efficient operation.
  • Plug-and-play design requires no modifications for installation, making it accessible for both enthusiasts and professionals.

Technical Specifications

  • Color: Thermal Black Heat Dispersion Cerakote
  • Core Material: Aluminum
  • Core Row Quantity: 12 rows, double the capacity of the OEM core.
  • Pressure Tested: Each manifold is pressure tested at 60-70 PSI during quality control.

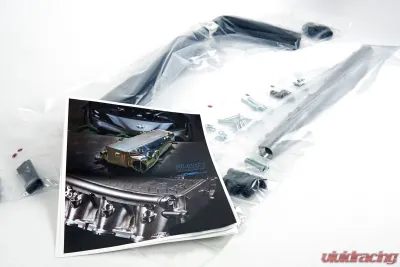

  • Installation Type: Drop-in fit installation with included hardware and detailed diagrams for straightforward assembly.

Performance Enhancements

This manifold significantly reduces pressure drop compared to the OEM setup, which is crucial for maintaining optimal intake air temperatures (IATs) during high-performance driving. The integrated air divider ensures even airflow distribution, further enhancing cooling efficiency. The CSF 8200B is particularly beneficial for modified B58 engines, where heat soak can lead to performance losses and potential engine protection modes.

Fitment

The CSF 8200B is designed specifically for the following models:

  • BMW 540i (2020-2023)
  • BMW 740i (2018-2022)
  • BMW 745e (2020-2022)
  • BMW 840i (2020-2024)
  • BMW M240i (2022-2024)
  • BMW M340i (2020-2024)
  • BMW M440i (2021-2024)
  • BMW X3 (2020-2024)
  • BMW X4 (2020-2024)
  • BMW X5 (2019-2024)
  • BMW X6 (2020-2024)
  • BMW X7 (2019-2024)
  • BMW Z4 (2020-2024)
  • Toyota Supra (2020-2024)

The CSF 8200B Charge-Air Cooler Manifold is a crucial upgrade for B58 engine owners looking to maximize their vehicle's performance while ensuring reliability under pressure.

Other Part Numbers:
CSF Radiators #csf8200B

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Vehicle
2020-2023
 BMW 540i
2018-2022
 BMW 740i
2020-2022
 BMW 745e
2020-2024
 BMW 840i
2022-2024
 BMW M240i
2020-2024
 BMW M340i
2021-2024
 BMW M440i
2020-2024
 BMW X3
2020-2024
 BMW X4
2019-2024
 BMW X5
2020-2024
 BMW X6
2019-2024
 BMW X7
2020-2024
 BMW Z4
2020-2024
 Toyota Supra
CSF Radiator

Anyone who needs a new radiator should consider buying a CSF radiator. A CSF radiator and CSF cooling system offers the best performance for driving and racing enthusiasts. If you have a faulty radiator or are looking to upgrade to a high-performance radiator, a CSF radiator will get the job done.

What is a CSF Radiator?

During the last 40 years, CSF has manufactured over 10,000 different models of radiators, oil coolers, heat exchangers and condensers for Automotive, Truck, Industrial and Marine applications. Today, their products are sold in over 60 countries throughout the world. Their US Aftermarket Division stocks over 1000 models that cover over 2100 applications for all popular Import vehicles.

CSF supplies radiators and condensers that are designed to meet or exceed original equipment (OE) engineering specifications. Their plants meet ISO 9000 standards and provide parts to OE manufacturers, and to top it all off - check out their industry leading warranty. Simply put, you cannot buy, sell, install or own a better value radiator or condenser.

Why Should I Buy a CSF Radiator?

A CSF radiator offers a number of benefits over the competition. Below, we explain the main reasons why you should buy a CSF radiator.

A Market Leader for over 45 Years

CSF has been a market leader for over 45 years, as the company was initially established in 1975 and have been selling CSF radiators ever since. Over time, a CSF radiator has become known for its innovative design and impeccable quality.

High-Quality Radiator Testing

Every single CSF radiator and CSF cooling system has been put through a rigorous series of tests to make sure every system is reliable and performs at a high level. In their testing lab, CSF puts in the time to make sure every product works perfectly.

Cutting-Edge Technology

Each CSF radiator uses cutting-edge technology to bring customers the best CSF full cooling system possible. CSF racing radiators combine a high-efficiency core, advanced endtank designs, and innovative design and engineering to give our customers the most advanced and efficient radiator possible.

Get a CSF Radiator or CSF Cooling System From Vivid Racing

Vivid Racing carries a wide selection of CSF radiator products, including CSF cooling systems and other accessories. If you are interested in learning more or would like to purchase a CSF radiator, please contact Vivid Racing today by calling (480) 966-3040.

CSF takes pride in the quality of its products and offers one of the best warranty’s in the industry. Please refer to the CSF warranty card in the shipping carton for details.

CSF warranty is applicable only to the original owner of the vehicle. Original paper work verifying the proof of purchase and pre-installation cooling system checklist signed by the professional installer is required to process warranty claims.

All warranty claims should be directed to the point of purchase. Due to CSF’s established agreements with Authorized CSF Warehouse Distributors, CSF is unable to handle and/or process warranty related calls/inquires from any individuals – all inquires/warranty related claims should be directed to the point of purchase or an authorized warehouse distributor.

Take care of your radiator, as under circumstances listed below the warranty will be void.

If the radiator is installed and is returned deformed (bulging tanks, warped core etc.), this is an indication that the radiator is the victim of some other problem and not the cause. The deformation is a result of the radiator being subjected to extremely high pressure and or temperature caused by any of the following reasons:Defective Pressure Cap, Defective Head Gasket, Defective Temperature gauge (incorrect readings), Defective Water Pump etc. Such units are not covered under the warranty.

If a radiator seems to have a “fit problem” there is the possibility that there is some confusion about a multi-fit radiator that might look different. Your nearest CSF WD can clarify the application, just give them a call. A perceived fit problem is not covered under warranty.

If a unit is damaged in shipping, please file a claim with the carrier. Damages caused during shipping, installation or handling are not covered under warranty.

Any repairs or alterations to the unit will automatically void the warranty.

Any form of abuse, including the use of improper coolant mixtures, damage caused by steam, corrosion etc and use on commercial vehicles voids the warranty. It is the vehicle owners’ responsibility to maintain the cooling system as specified in the owners manual.
