  See more parts for Audi 4000
Select the year of your Audi 4000:

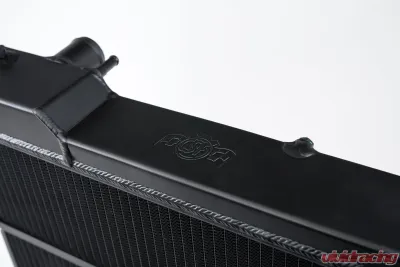

CSF Classic & Small Chassis Audi 5-Cylinder All-Aluminum Radiator 1980-1995 - 7208
CSF Classic & Small Chassis Audi 5-Cylinder All-Aluminum Radiator 1980-1995 - 7208 - Image 2 CSF Classic & Small Chassis Audi 5-Cylinder All-Aluminum Radiator 1980-1995 - 7208 - Image 2
If you're looking to keep your Audi Quattro or any of the classic small chassis models running cool, you might want to check out this CSF High-Performance All-Aluminum Radiator. With over 50 years of experience under their belt, CSF knows a thing or two about keeping engines at the right temperature, whether you're cruising down the street or tearing it up at the track. This radiator is designed for performance, and it really shows. It features a robust 2-row, 42mm dual pass core that helps manage heat like a champ, especially if you're pushing the limits with a high horsepower build. The real kicker here is CSF's exclusive B-Tube Technology. Instead of the usual oval tubes, these "B-tubes" are engineered to be stronger and more efficient. They increase the heat transfer surface area by about 15% compared to standard tubes, which means you get better cooling without taking up extra space. It’s like having the efficiency of two smaller tubes crammed into one. The fins are another highlight—measuring 6.5mm tall and designed with a multi-louvered style, they maximize airflow through the radiator core. CSF even tests these in a wind tunnel to ensure they’re performing at their best. Plus, the whole setup is built with 100% all-aluminum, TIG-welded construction, so you know it’s tough enough to handle whatever you throw at it. Installation? Easy-peasy. This radiator is a true drop-in fit, meaning no modifications are needed. You can reuse your OEM hoses or aftermarket ones because the inlet and outlet connections match the factory specs. And if you’re worried about durability, the CNC-machined brackets and the satin black finish give it an OEM+ look that’s built to last. Here’s a quick rundown of the specs:
  • Core Height: 477mm
  • Core Width: 363.5mm
  • Core Thickness: 42mm
  • Inlet Diameter: 32mm (Top Right)
  • Outlet Diameter: 32mm (Bottom Left)
  • Cooling Tubes: CSF's Exclusive B-Tube Technology
  • Multi louvered fins for maximum surface area contact
  • Drop-in fit installation with OEM-style connections
  • 2-Year Limited Warranty
This radiator fits a range of classic Audis, including:
  • Audi 4000 (1980-1984)
  • Audi 80 (1988-1992)
  • Audi 80 Quattro (1988-1992)
  • Audi 90 (1988-1991 & 1993-1995)
  • Audi 90 Quattro (1988-1991)
  • Audi Cabriolet (1994-1998)
  • Audi Coupe (1981-1987)
  • Audi Coupe Quattro (1990-1991)
  • Audi Quattro (1982-1990)
  • Audi RS2 (1994-1995)
  • Audi S2 (1993-1996)
So if you want to keep your classic Audi running cool and performing at its peak, this CSF radiator is a solid choice. Trust me, your engine will thank you.

Other Part Numbers:
CSF Radiators #csf7208

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Vehicle Make/Model
Audi 4000 1980-1983 Base
Audi 4000 1982-1983 GT
Audi 4000 1982-1984 S
Audi 80 1988-1992 Base
Audi 80 Quattro 1988-1992 Base
Audi 90 1988-1991, 1995 Base
Audi 90 1993-1994 S
Audi 90 1993-1994 CS
Audi 90 1995 Sport
Audi 90 Quattro 1988-1989 Base
Audi 90 Quattro 1990-1991 20v
Audi Cabriolet 1994-1998 Base
Audi Coupe 1981-1985 Base
Audi Coupe 1986-1987 GT
Audi Coupe Quattro 1990-1991 20v
Audi Quattro 1983-1986 Base
CSF Radiator

Anyone who needs a new radiator should consider buying a CSF radiator. A CSF radiator and CSF cooling system offers the best performance for driving and racing enthusiasts. If you have a faulty radiator or are looking to upgrade to a high-performance radiator, a CSF radiator will get the job done.

What is a CSF Radiator?

During the last 40 years, CSF has manufactured over 10,000 different models of radiators, oil coolers, heat exchangers and condensers for Automotive, Truck, Industrial and Marine applications. Today, their products are sold in over 60 countries throughout the world. Their US Aftermarket Division stocks over 1000 models that cover over 2100 applications for all popular Import vehicles.

CSF supplies radiators and condensers that are designed to meet or exceed original equipment (OE) engineering specifications. Their plants meet ISO 9000 standards and provide parts to OE manufacturers, and to top it all off - check out their industry leading warranty. Simply put, you cannot buy, sell, install or own a better value radiator or condenser.

Why Should I Buy a CSF Radiator?

A CSF radiator offers a number of benefits over the competition. Below, we explain the main reasons why you should buy a CSF radiator.

A Market Leader for over 45 Years

CSF has been a market leader for over 45 years, as the company was initially established in 1975 and have been selling CSF radiators ever since. Over time, a CSF radiator has become known for its innovative design and impeccable quality.

High-Quality Radiator Testing

Every single CSF radiator and CSF cooling system has been put through a rigorous series of tests to make sure every system is reliable and performs at a high level. In their testing lab, CSF puts in the time to make sure every product works perfectly.

Cutting-Edge Technology

Each CSF radiator uses cutting-edge technology to bring customers the best CSF full cooling system possible. CSF racing radiators combine a high-efficiency core, advanced endtank designs, and innovative design and engineering to give our customers the most advanced and efficient radiator possible.

Get a CSF Radiator or CSF Cooling System From Vivid Racing

Vivid Racing carries a wide selection of CSF radiator products, including CSF cooling systems and other accessories. If you are interested in learning more or would like to purchase a CSF radiator, please contact Vivid Racing today by calling (480) 966-3040.

CSF takes pride in the quality of its products and offers one of the best warranty’s in the industry. Please refer to the CSF warranty card in the shipping carton for details.

CSF warranty is applicable only to the original owner of the vehicle. Original paper work verifying the proof of purchase and pre-installation cooling system checklist signed by the professional installer is required to process warranty claims.

All warranty claims should be directed to the point of purchase. Due to CSF’s established agreements with Authorized CSF Warehouse Distributors, CSF is unable to handle and/or process warranty related calls/inquires from any individuals – all inquires/warranty related claims should be directed to the point of purchase or an authorized warehouse distributor.

Take care of your radiator, as under circumstances listed below the warranty will be void.

If the radiator is installed and is returned deformed (bulging tanks, warped core etc.), this is an indication that the radiator is the victim of some other problem and not the cause. The deformation is a result of the radiator being subjected to extremely high pressure and or temperature caused by any of the following reasons:Defective Pressure Cap, Defective Head Gasket, Defective Temperature gauge (incorrect readings), Defective Water Pump etc. Such units are not covered under the warranty.

If a radiator seems to have a “fit problem” there is the possibility that there is some confusion about a multi-fit radiator that might look different. Your nearest CSF WD can clarify the application, just give them a call. A perceived fit problem is not covered under warranty.

If a unit is damaged in shipping, please file a claim with the carrier. Damages caused during shipping, installation or handling are not covered under warranty.

Any repairs or alterations to the unit will automatically void the warranty.

Any form of abuse, including the use of improper coolant mixtures, damage caused by steam, corrosion etc and use on commercial vehicles voids the warranty. It is the vehicle owners’ responsibility to maintain the cooling system as specified in the owners manual.
