CSF High-Performance All-Aluminum Radiator for Porsche 944 Turbo, NA, 968, 924S - 7088
CSF High-Performance All-Aluminum Radiator for Porsche 944 Turbo, NA, 968, 924S - 7088 - Image 2 CSF High-Performance All-Aluminum Radiator for Porsche 944 Turbo, NA, 968, 924S - 7088 - Image 2

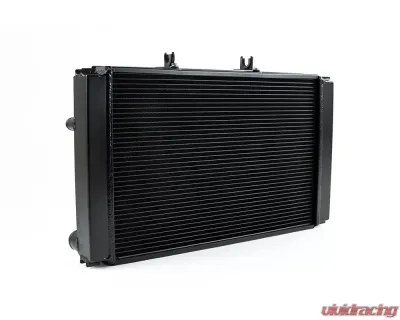

CSF 7088 High-Performance All-Aluminum Radiator for Porsche 944 / 968 / 924S

When it comes to keeping your Porsche 944, 968, or 924S running cool under pressure, the CSF 7088 High-Performance All-Aluminum Radiator is the upgrade your engine deserves. With over 50 years of experience in radiator manufacturing, CSF has engineered this radiator to excel on both the street and the track, making it an essential component for high-performance builds and motorsport applications. Whether you're pushing your car to its limits on a race day or cruising through the canyons, this radiator ensures your engine stays at optimal temperatures.

Innovative B-Tube Technology

What sets the CSF radiator apart is its exclusive B-Tube Technology. Unlike standard oval "O" type tubes, these specially designed "B-tubes" offer a superior strength-to-weight ratio, allowing for a thinner and lighter construction without sacrificing cooling efficiency. This design increases the heat transfer surface area by approximately 15%, effectively providing the cooling performance of two smaller tubes in the same space as one large tube. This means you get dual liquid laminar flow for enhanced cooling capabilities.

Precision Engineering for Maximum Airflow

CSF's commitment to quality is evident in the radiator's multi-louvered fins, which are meticulously aligned to maximize airflow through the core. Each fin is designed and tested in a wind-tunnel lab to ensure maximum heat rejection efficiency, making this radiator a top choice for serious car enthusiasts.

Fitment and Installation

The CSF 7088 is designed as a true drop-in fit for your Porsche 944 (1983-1991), 968 (1992-1995), and 924S (1987-1988). This means no modifications are needed during installation, allowing you to get back on the road or track with minimal downtime. The radiator features CNC-machined mounting brackets and OE-style inlet/outlet connections, ensuring compatibility with your existing hoses.

Technical Specifications

  • Core Height: 19.6875 in.
  • Core Width: 12.625 in.
  • Core Thickness: 1.625 in.
  • Core Row Quantity: 2
  • Core Material: Aluminum
  • Finish: Satin Black for an OEM+ look
  • Inlet Diameter: 1.5 in. (Top Left)
  • Outlet Diameter: 1.5 in. (Bottom Right)
  • Installation Type: Drop-In Fit
  • Weight: Lightweight design for improved performance

Customer Feedback

Porsche 944 owners have praised this radiator for its performance, with one user stating, “After installing the CSF radiator, my 944 runs cooler than ever, even during track days. The fitment was perfect, and I didn’t have to modify a thing!”

Why Choose CSF?

CSF is known for producing some of the most advanced and efficient radiators in the industry. With their innovative technologies and rigorous testing methods, you can trust that the CSF 7088 will provide the reliable performance you need for your Porsche. Plus, it comes with a 2-year limited warranty, ensuring peace of mind with your purchase.

Optional Add-Ons

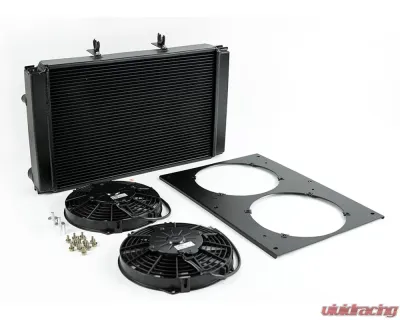

  • Optional Shroud & Dual 9-Inch SPAL Fan Kit Available (CSF #8180)

Fitment Details

This radiator is compatible with the following models:

  • Porsche 924 (1987-1988)
  • Porsche 944 (1983-1991)
  • Porsche 968 (1992-1995)
Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Vehicle Make/Model
Porsche 924 1987-1988 S
Porsche 944 1983-1990 Base
Porsche 944 1986-1989 Turbo
Porsche 944 1987-1988 S
Porsche 944 1988 Turbo S
Porsche 944 1989-1991 S2
Porsche 968 1992-1995 Base
CSF Radiator

Anyone who needs a new radiator should consider buying a CSF radiator. A CSF radiator and CSF cooling system offers the best performance for driving and racing enthusiasts. If you have a faulty radiator or are looking to upgrade to a high-performance radiator, a CSF radiator will get the job done.

What is a CSF Radiator?

During the last 40 years, CSF has manufactured over 10,000 different models of radiators, oil coolers, heat exchangers and condensers for Automotive, Truck, Industrial and Marine applications. Today, their products are sold in over 60 countries throughout the world. Their US Aftermarket Division stocks over 1000 models that cover over 2100 applications for all popular Import vehicles.

CSF supplies radiators and condensers that are designed to meet or exceed original equipment (OE) engineering specifications. Their plants meet ISO 9000 standards and provide parts to OE manufacturers, and to top it all off - check out their industry leading warranty. Simply put, you cannot buy, sell, install or own a better value radiator or condenser.

Why Should I Buy a CSF Radiator?

A CSF radiator offers a number of benefits over the competition. Below, we explain the main reasons why you should buy a CSF radiator.

A Market Leader for over 45 Years

CSF has been a market leader for over 45 years, as the company was initially established in 1975 and have been selling CSF radiators ever since. Over time, a CSF radiator has become known for its innovative design and impeccable quality.

High-Quality Radiator Testing

Every single CSF radiator and CSF cooling system has been put through a rigorous series of tests to make sure every system is reliable and performs at a high level. In their testing lab, CSF puts in the time to make sure every product works perfectly.

Cutting-Edge Technology

Each CSF radiator uses cutting-edge technology to bring customers the best CSF full cooling system possible. CSF racing radiators combine a high-efficiency core, advanced endtank designs, and innovative design and engineering to give our customers the most advanced and efficient radiator possible.

Get a CSF Radiator or CSF Cooling System From Vivid Racing

Vivid Racing carries a wide selection of CSF radiator products, including CSF cooling systems and other accessories. If you are interested in learning more or would like to purchase a CSF radiator, please contact Vivid Racing today by calling (480) 966-3040.

CSF takes pride in the quality of its products and offers one of the best warranty’s in the industry. Please refer to the CSF warranty card in the shipping carton for details.

CSF warranty is applicable only to the original owner of the vehicle. Original paper work verifying the proof of purchase and pre-installation cooling system checklist signed by the professional installer is required to process warranty claims.

All warranty claims should be directed to the point of purchase. Due to CSF’s established agreements with Authorized CSF Warehouse Distributors, CSF is unable to handle and/or process warranty related calls/inquires from any individuals – all inquires/warranty related claims should be directed to the point of purchase or an authorized warehouse distributor.

Take care of your radiator, as under circumstances listed below the warranty will be void.

If the radiator is installed and is returned deformed (bulging tanks, warped core etc.), this is an indication that the radiator is the victim of some other problem and not the cause. The deformation is a result of the radiator being subjected to extremely high pressure and or temperature caused by any of the following reasons:Defective Pressure Cap, Defective Head Gasket, Defective Temperature gauge (incorrect readings), Defective Water Pump etc. Such units are not covered under the warranty.

If a radiator seems to have a “fit problem” there is the possibility that there is some confusion about a multi-fit radiator that might look different. Your nearest CSF WD can clarify the application, just give them a call. A perceived fit problem is not covered under warranty.

If a unit is damaged in shipping, please file a claim with the carrier. Damages caused during shipping, installation or handling are not covered under warranty.

Any repairs or alterations to the unit will automatically void the warranty.

Any form of abuse, including the use of improper coolant mixtures, damage caused by steam, corrosion etc and use on commercial vehicles voids the warranty. It is the vehicle owners’ responsibility to maintain the cooling system as specified in the owners manual.
