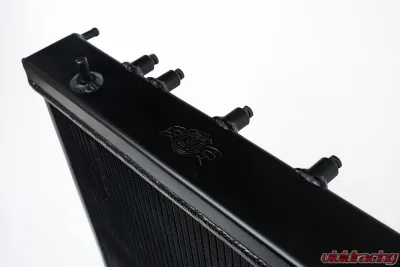

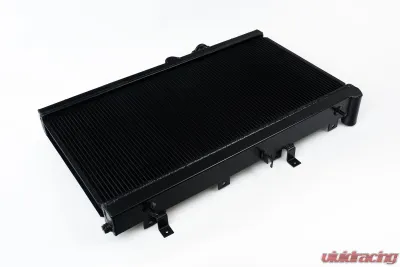

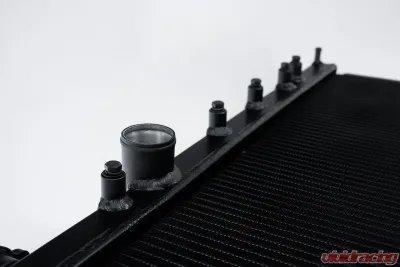

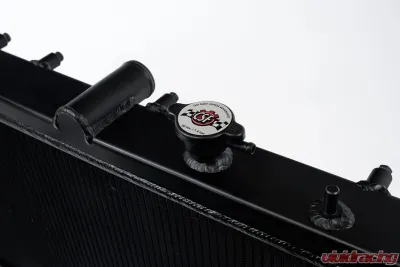

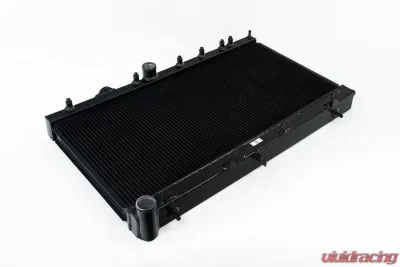

CSF High-Performance All-Aluminum Radiator for 2002-2007 Subaru WRX/STI
For over 50 years, CSF has been at the forefront of radiator manufacturing, and their expertise shines through in the CSF High-Performance All-Aluminum Radiator. If you own a 2002-2007 Subaru WRX or STI, this radiator is designed to keep your engine cool, whether you’re hitting the streets or pushing the limits on the track. It’s an essential upgrade for anyone looking to enhance performance, especially for high horsepower builds or race vehicles that demand superior cooling capabilities.
Innovative B-Tube Technology
What sets this radiator apart is CSF's exclusive B-Tube Technology. Unlike standard oval "O" type tubes, the specially engineered "B-tubes" are designed to maximize heat transfer efficiency. This design not only allows for a thinner and lighter aluminum construction but also increases the heat transfer surface area by approximately 15% compared to conventional tubes. This means that within the same space, you get the efficiency of two smaller tubes rather than one large tube, resulting in improved cooling performance and "dual liquid laminar flow."
Performance-Driven Design
The radiator features a 2-row, 42mm core with ultra-efficient multi-louvered fins, meticulously aligned to optimize airflow through the radiator. Each fin is engineered for maximum surface area contact, ensuring that your WRX/STI stays cool under pressure. The CSF radiator is a true drop-in fit, meaning you won't need to make any modifications during installation. It comes with CNC machined brackets and fittings for unmatched durability, and the inlet and outlet connections are designed to match OE specifications, allowing you to reuse your OEM hoses or aftermarket options.
Technical Specifications
- Core Height: 13.375 in.
- Core Width: 27 in.
- Core Thickness: 1.625 in.
- Core Material: Aluminum
- Core Row Quantity: 2
- Inlet Diameter: 1.5 in. (Top Center)
- Outlet Diameter: 1.5 in. (Bottom Left)
- Finish: Black
- Installation: Drop-In Fit
- Radiator Cap Included: Yes
- Grade Type: Performance
Fitment
This radiator is compatible with:
- Subaru Baja (2003-2006)
- Subaru Impreza (2002-2007)
- Subaru STI (2002-2007)
- Subaru WRX (2002-2007)
Customer Feedback
Subaru WRX owners have been impressed with the cooling performance of the CSF radiator. One user noted, "After installing the CSF radiator on my 2006 WRX, I immediately noticed a drop in engine temperatures during spirited drives and track days. The fit was perfect, and I could reuse my stock hoses without any hassle." Experience the difference for yourself and keep your engine running at its best with CSF's high-performance radiator.
Other Part Numbers:
CSF Radiators #csf3076B
Proposition 65
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
| Vehicle Make/Model | Year | Trims |
|---|---|---|
| Subaru Baja | 2003 | Base |
| Subaru Baja | 2003-2006 | Sport |
| Subaru Baja | 2004-2006 | Turbo |
| Subaru Impreza | 2002-2007 | WRX |
| Subaru Impreza | 2002-2004 | Outback |
| Subaru Impreza | 2002-2004 | TS |
| Subaru Impreza | 2002-2005 | RS |
| Subaru Impreza | 2004-2007 | WRX STI |
| Subaru Impreza | 2005-2007 | Outback Sport |
| Subaru Impreza | 2006-2007 | 2.5i |
| Subaru Impreza | 2006-2007 | WRX TR |
| Subaru Impreza | 2006-2007 | WRX Limited |
| Subaru Impreza | 2007 | WRX STI Limited |
CSF Radiator
Anyone who needs a new radiator should consider buying a CSF radiator. A CSF radiator and CSF cooling system offers the best performance for driving and racing enthusiasts. If you have a faulty radiator or are looking to upgrade to a high-performance radiator, a CSF radiator will get the job done.
What is a CSF Radiator?During the last 40 years, CSF has manufactured over 10,000 different models of radiators, oil coolers, heat exchangers and condensers for Automotive, Truck, Industrial and Marine applications. Today, their products are sold in over 60 countries throughout the world. Their US Aftermarket Division stocks over 1000 models that cover over 2100 applications for all popular Import vehicles.
CSF supplies radiators and condensers that are designed to meet or exceed original equipment (OE) engineering specifications. Their plants meet ISO 9000 standards and provide parts to OE manufacturers, and to top it all off - check out their industry leading warranty. Simply put, you cannot buy, sell, install or own a better value radiator or condenser.
Why Should I Buy a CSF Radiator?A CSF radiator offers a number of benefits over the competition. Below, we explain the main reasons why you should buy a CSF radiator.
A Market Leader for over 45 YearsCSF has been a market leader for over 45 years, as the company was initially established in 1975 and have been selling CSF radiators ever since. Over time, a CSF radiator has become known for its innovative design and impeccable quality.
High-Quality Radiator TestingEvery single CSF radiator and CSF cooling system has been put through a rigorous series of tests to make sure every system is reliable and performs at a high level. In their testing lab, CSF puts in the time to make sure every product works perfectly.
Cutting-Edge TechnologyEach CSF radiator uses cutting-edge technology to bring customers the best CSF full cooling system possible. CSF racing radiators combine a high-efficiency core, advanced endtank designs, and innovative design and engineering to give our customers the most advanced and efficient radiator possible.
Get a CSF Radiator or CSF Cooling System From Vivid RacingVivid Racing carries a wide selection of CSF radiator products, including CSF cooling systems and other accessories. If you are interested in learning more or would like to purchase a CSF radiator, please contact Vivid Racing today by calling (480) 966-3040.
CSF takes pride in the quality of its products and offers one of the best warranty’s in the industry. Please refer to the CSF warranty card in the shipping carton for details.
CSF warranty is applicable only to the original owner of the vehicle. Original paper work verifying the proof of purchase and pre-installation cooling system checklist signed by the professional installer is required to process warranty claims.
All warranty claims should be directed to the point of purchase. Due to CSF’s established agreements with Authorized CSF Warehouse Distributors, CSF is unable to handle and/or process warranty related calls/inquires from any individuals – all inquires/warranty related claims should be directed to the point of purchase or an authorized warehouse distributor.
Take care of your radiator, as under circumstances listed below the warranty will be void.
If the radiator is installed and is returned deformed (bulging tanks, warped core etc.), this is an indication that the radiator is the victim of some other problem and not the cause. The deformation is a result of the radiator being subjected to extremely high pressure and or temperature caused by any of the following reasons:Defective Pressure Cap, Defective Head Gasket, Defective Temperature gauge (incorrect readings), Defective Water Pump etc. Such units are not covered under the warranty.
If a radiator seems to have a “fit problem†there is the possibility that there is some confusion about a multi-fit radiator that might look different. Your nearest CSF WD can clarify the application, just give them a call. A perceived fit problem is not covered under warranty.
If a unit is damaged in shipping, please file a claim with the carrier. Damages caused during shipping, installation or handling are not covered under warranty.
Any repairs or alterations to the unit will automatically void the warranty.
Any form of abuse, including the use of improper coolant mixtures, damage caused by steam, corrosion etc and use on commercial vehicles voids the warranty. It is the vehicle owners’ responsibility to maintain the cooling system as specified in the owners manual.
CSF warranty is applicable only to the original owner of the vehicle. Original paper work verifying the proof of purchase and pre-installation cooling system checklist signed by the professional installer is required to process warranty claims.
All warranty claims should be directed to the point of purchase. Due to CSF’s established agreements with Authorized CSF Warehouse Distributors, CSF is unable to handle and/or process warranty related calls/inquires from any individuals – all inquires/warranty related claims should be directed to the point of purchase or an authorized warehouse distributor.
Take care of your radiator, as under circumstances listed below the warranty will be void.
If the radiator is installed and is returned deformed (bulging tanks, warped core etc.), this is an indication that the radiator is the victim of some other problem and not the cause. The deformation is a result of the radiator being subjected to extremely high pressure and or temperature caused by any of the following reasons:Defective Pressure Cap, Defective Head Gasket, Defective Temperature gauge (incorrect readings), Defective Water Pump etc. Such units are not covered under the warranty.
If a radiator seems to have a “fit problem†there is the possibility that there is some confusion about a multi-fit radiator that might look different. Your nearest CSF WD can clarify the application, just give them a call. A perceived fit problem is not covered under warranty.
If a unit is damaged in shipping, please file a claim with the carrier. Damages caused during shipping, installation or handling are not covered under warranty.
Any repairs or alterations to the unit will automatically void the warranty.
Any form of abuse, including the use of improper coolant mixtures, damage caused by steam, corrosion etc and use on commercial vehicles voids the warranty. It is the vehicle owners’ responsibility to maintain the cooling system as specified in the owners manual.
